Ignition Lock Cylinder Case Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

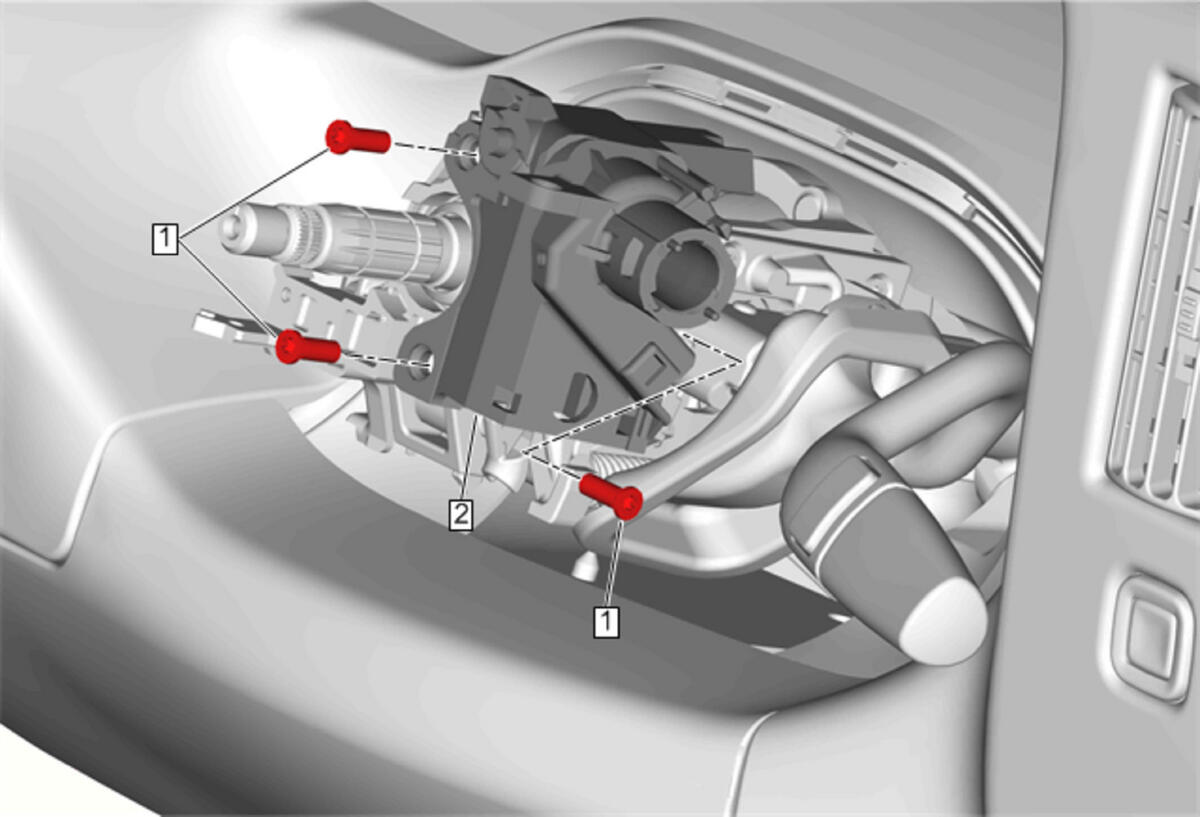

GM4851015Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Turn the ignition lock cylinder to the OFF-LOCK position and remove the park lock cable from the ignition lock cylinder case.
  2. Turn Signal Multifunction Switch Replacement
  3. Turn Signal Cancel Cam and Steering Shaft Upper Bearing Spring Replacement
  4. Ignition and Start Switch Replacement
1 Ignition Lock Cylinder Case Bolt [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
7 N.m (62 lb in)
2 Ignition Lock Cylinder Case
Procedure
Program the theft deterrent system. Control Module References
