Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Lifting and Jacking the Vehicle
  2. Tire and Wheel Assembly - Remove - Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
  3. GM4871141Courtesy of GENERAL MOTORS COMPANY

    Front Brake Rotor (1) - Remove - Front Brake Rotor Replacement (JH6) , or Front Brake Rotor Replacement (JH9)

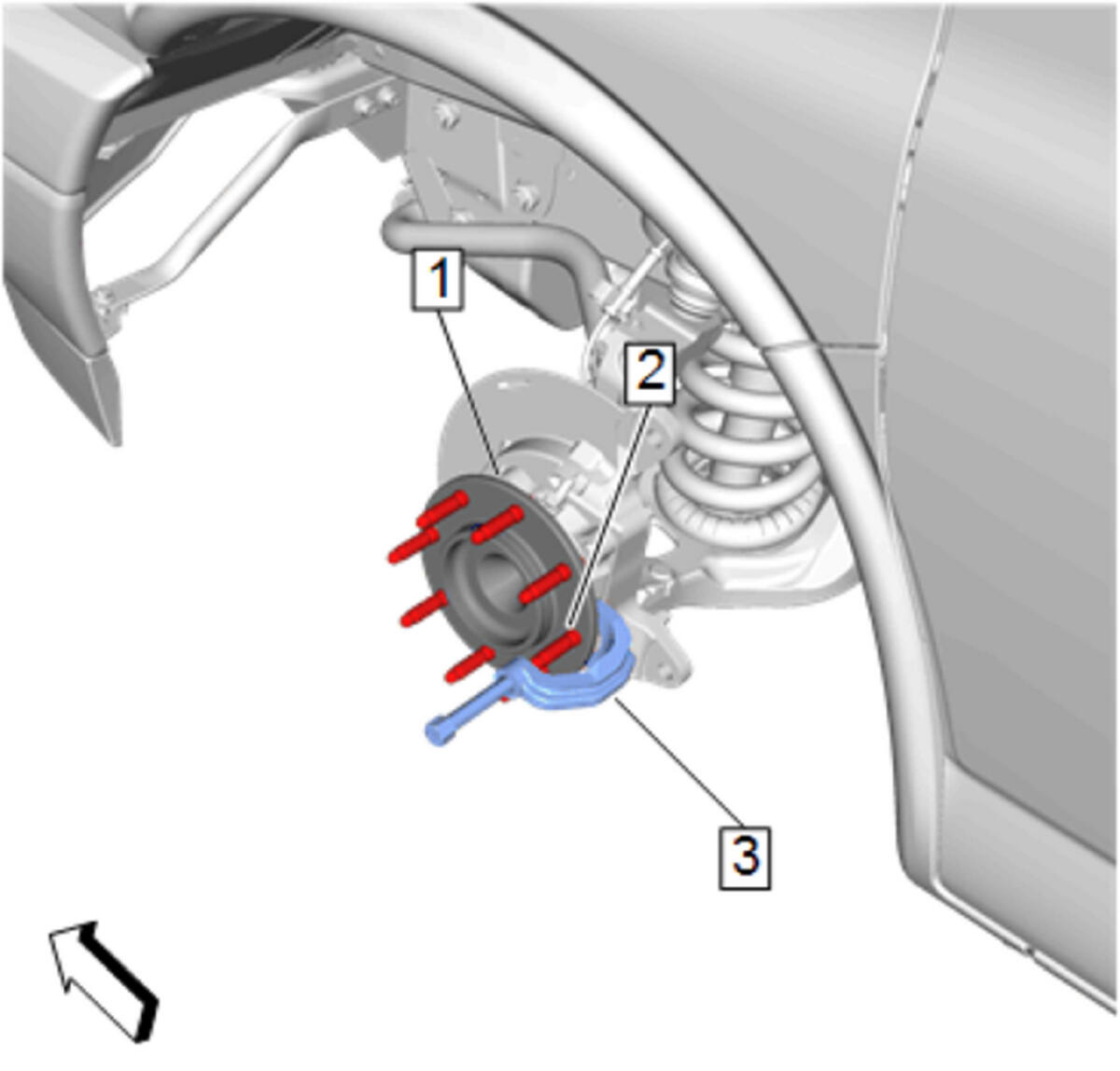

  4. GM4919609Courtesy of GENERAL MOTORS COMPANY

    Install the J 43631  Ball Joint Remover (3) to the front wheel hub (1) and wheel stud (2) as shown.

  5. Wheel Stud (2)@Front Wheel Hub (1) - Release
  6. Remove the J 43631  Ball Joint Remover (3) from the front wheel hub (1) and wheel stud (2).
  7. GM4919742Courtesy of GENERAL MOTORS COMPANY

    Wheel Stud (2)@Front Wheel Hub (1) - Remove
