Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

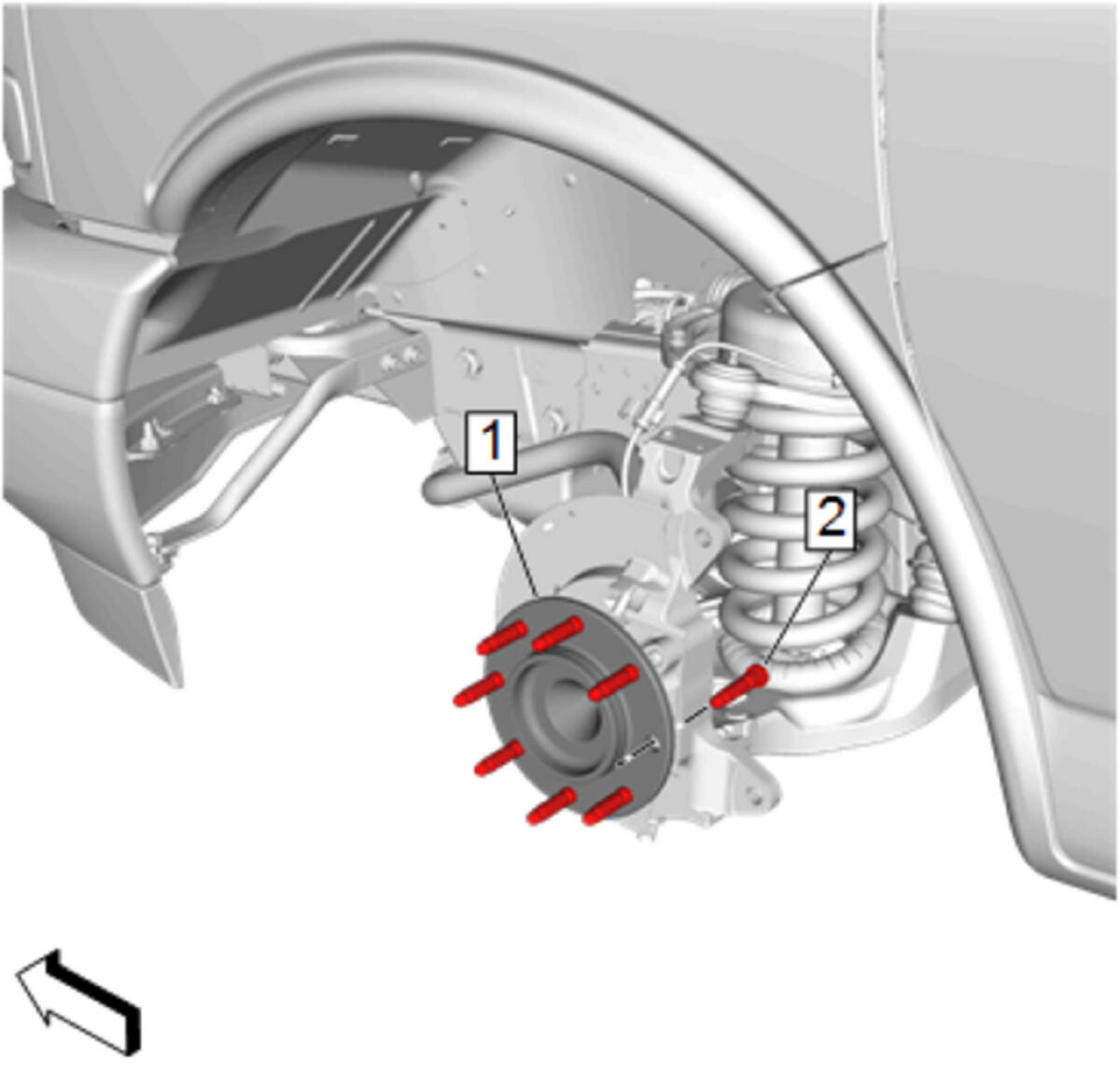

  1. GM4919742Courtesy of GENERAL MOTORS COMPANY

    Wheel Stud (2)@Front Wheel Hub (1) - Loosely install

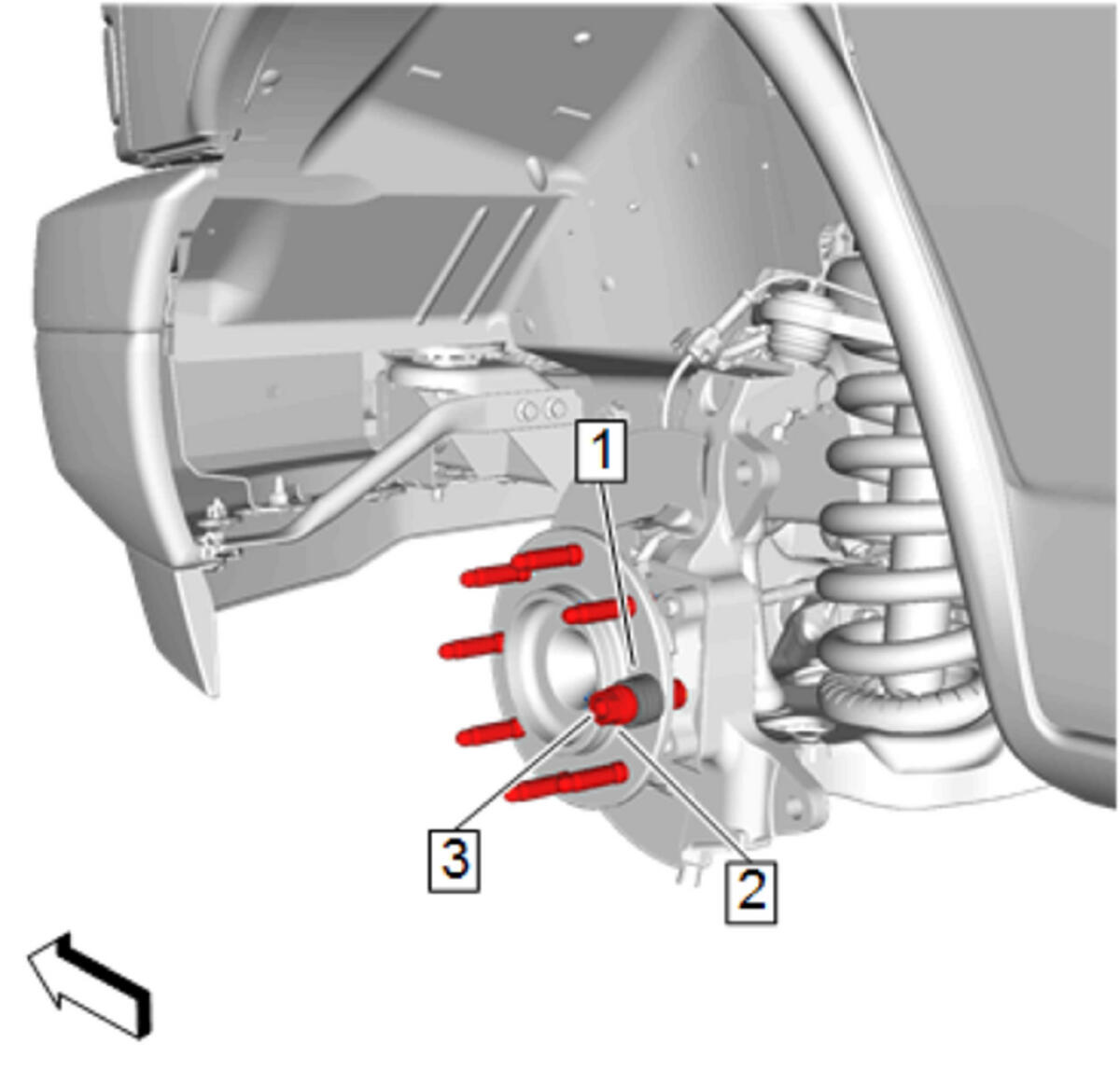

  2. GM4920011Courtesy of GENERAL MOTORS COMPANY

    Install four suitably sized washers (1) to the wheel stud (3) as shown.

  3. Install the wheel nut (2) to the wheel stud (3) and tighten until the wheel stud (3) is seated in the front wheel hub.
  4. Remove the wheel nut (2) and the washers (1) from the wheel stud (3).
  5. GM4871141Courtesy of GENERAL MOTORS COMPANY

    Front Brake Rotor (1) - Install - Front Brake Rotor Replacement (JH6) , or Front Brake Rotor Replacement (JH9)

  6. Tire and Wheel Assembly - Install - Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
  7. Lower the vehicle.
