Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
Support the front lower control arm with a jack stand.
Courtesy of GENERAL MOTORS COMPANY

Front Wheel Speed Sensor (1)@Front Upper Control Arm - Unclip
Courtesy of GENERAL MOTORS COMPANY

Front Wheel Speed Sensor (1)@Front Brake Hose - Unclip
Front Brake Hose Bolt (2)@Front Upper Control Arm - Remove [2x]
Front Brake Hose (3) - Reposition away
Courtesy of GENERAL MOTORS COMPANY

Front Upper Control Arm Ball Stud Nut (1)@Front Upper Control Arm Ball Stud (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

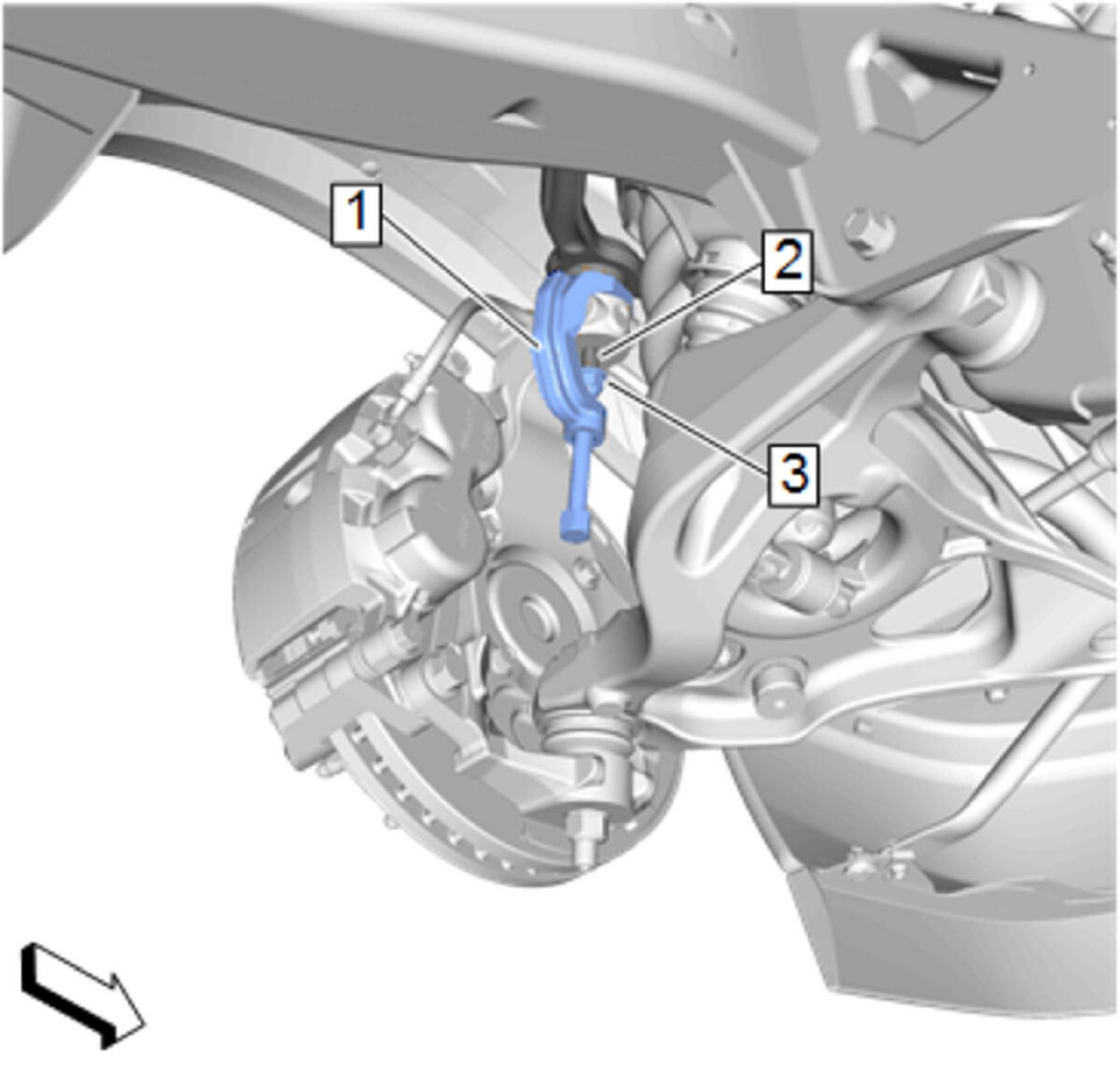

Using the J-45851 Ball Joint Separator Protector Adapters (3) and the CH-43631 Ball Joint Separator (1) as shown, separate the front upper control arm ball stud (2) from the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

Front Upper Control Arm Nut (1) - Remove [2x]
Front Upper Control Arm Bolt (2) - Remove [2x]
Front Upper Control Arm Adjust Cam (3) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Front Upper Control Arm (1) - Remove
