Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Front Upper Control Arm (1) - Install

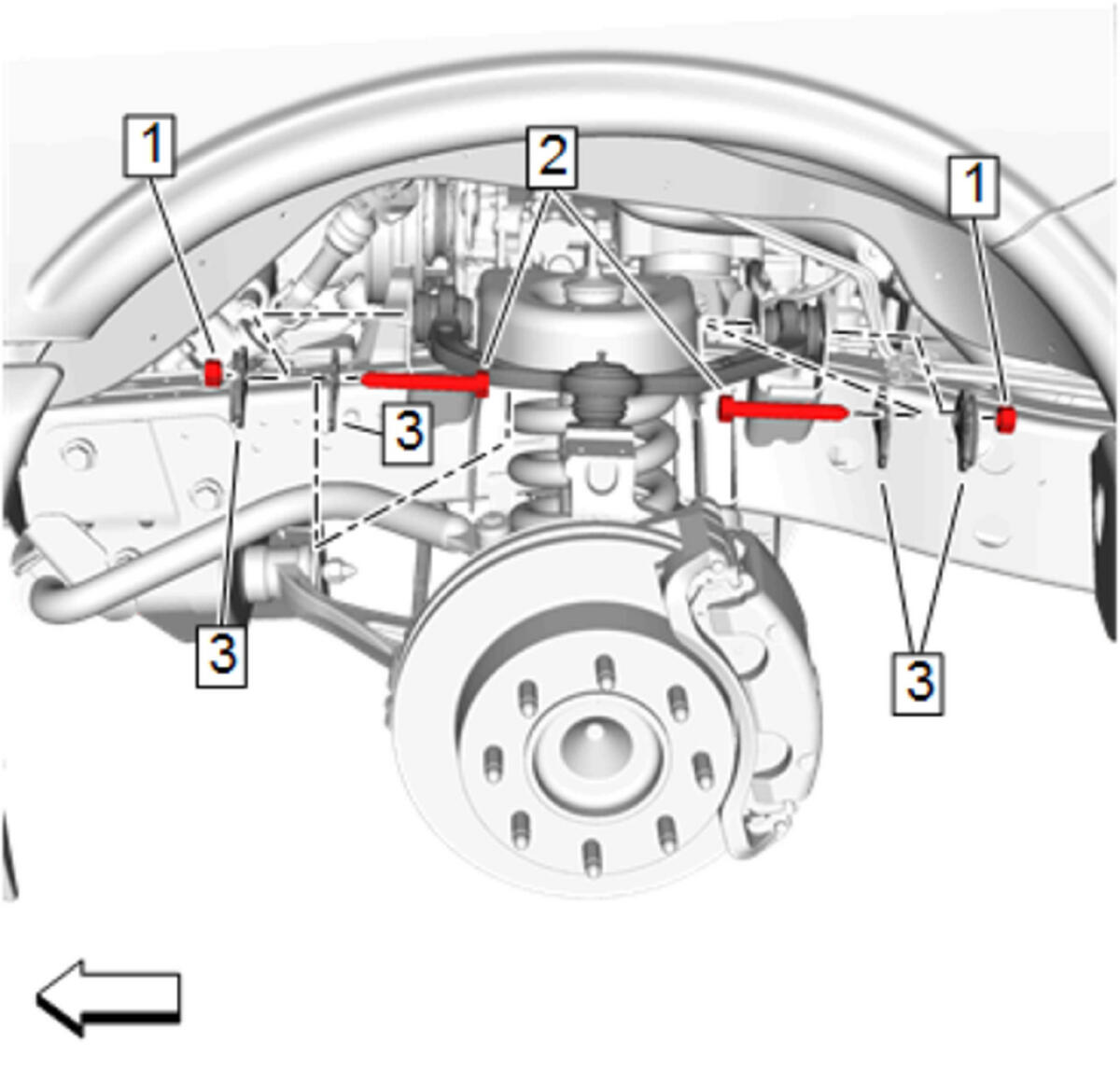

Front Upper Control Arm Adjust Cam (3) - Install [4x]
- Front Upper Control Arm Bolt (2) - Install [2x]
- Front Upper Control Arm Nut (1) - Install and tighten [2x] 175 N.m (129 lb ft)
Front Upper Control Arm Ball Stud Nut (1)@Front Upper Control Arm Ball Stud (2) - Install and tighten
- First Pass:25 N.m (18 lb ft)
- Final Pass:90 - 110 Degrees
Front Brake Hose (3) - Reposition
- Front Brake Hose Bolt (2)@Front Upper Control Arm - Install and tighten [2x] - Front Brake Hose Replacement
- Front Wheel Speed Sensor (1)@Front Brake Hose - Install
Front Wheel Speed Sensor (1)@Front Upper Control Arm - Install
- Remove the jack stand from under the front lower control arm.
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
- Remove the support and lower the vehicle.
- Measure and adjust the wheel alignment. Wheel Alignment Measurement
CAUTION:
Refer to Fastener Caution .
