Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Clean ALL grease and contaminants from the tapered section and the threads of the front upper control arm ball stud, the front lower control arm ball stud, and the steering linkage outer tie rod.
- Clean and inspect the taper holes and the mounting surfaces of the steering knuckle. If ANY of the tapered holes are elongated, out of round, or damaged, then replace the steering knuckle.

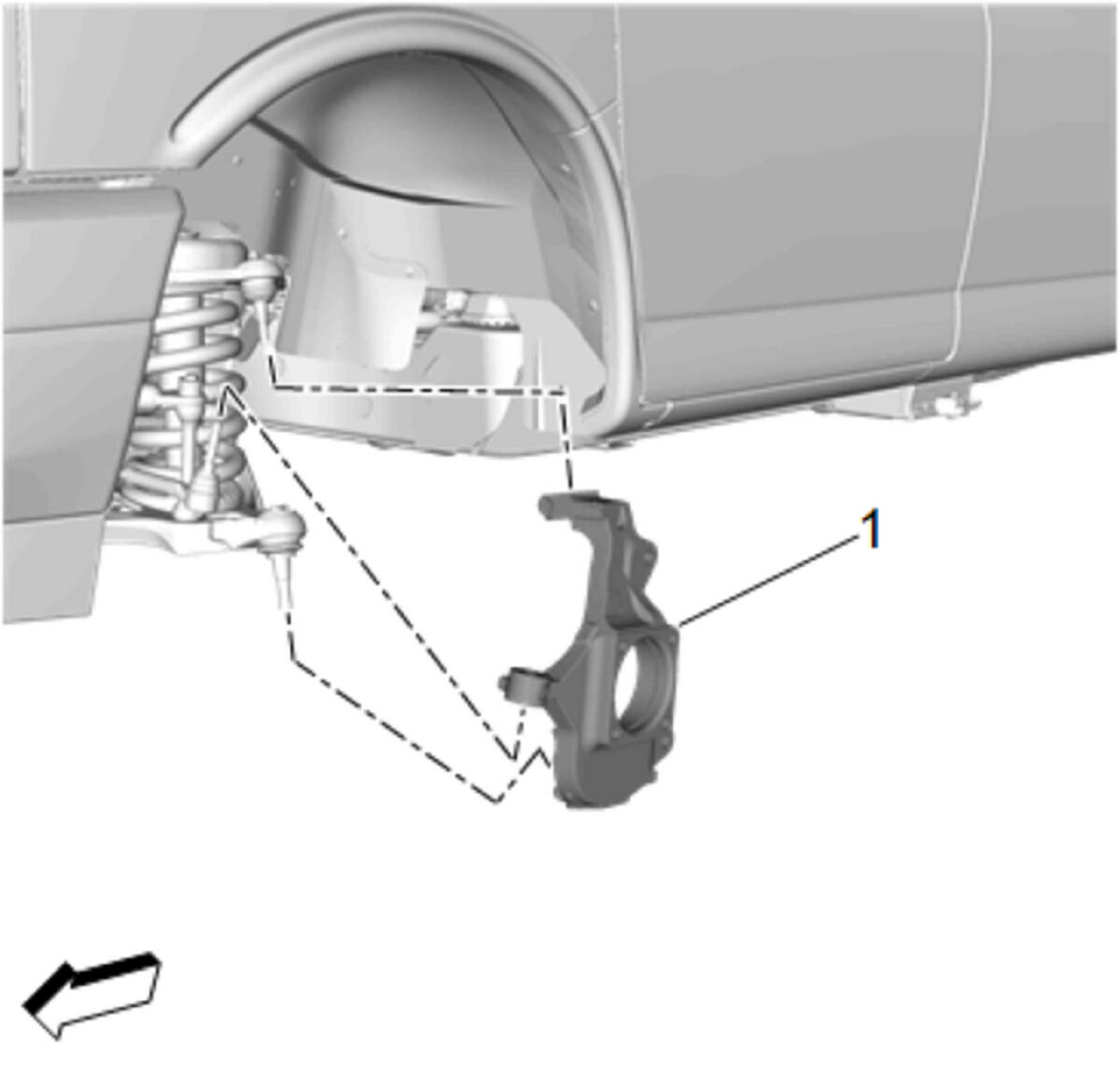

Steering Knuckle (1) - Install

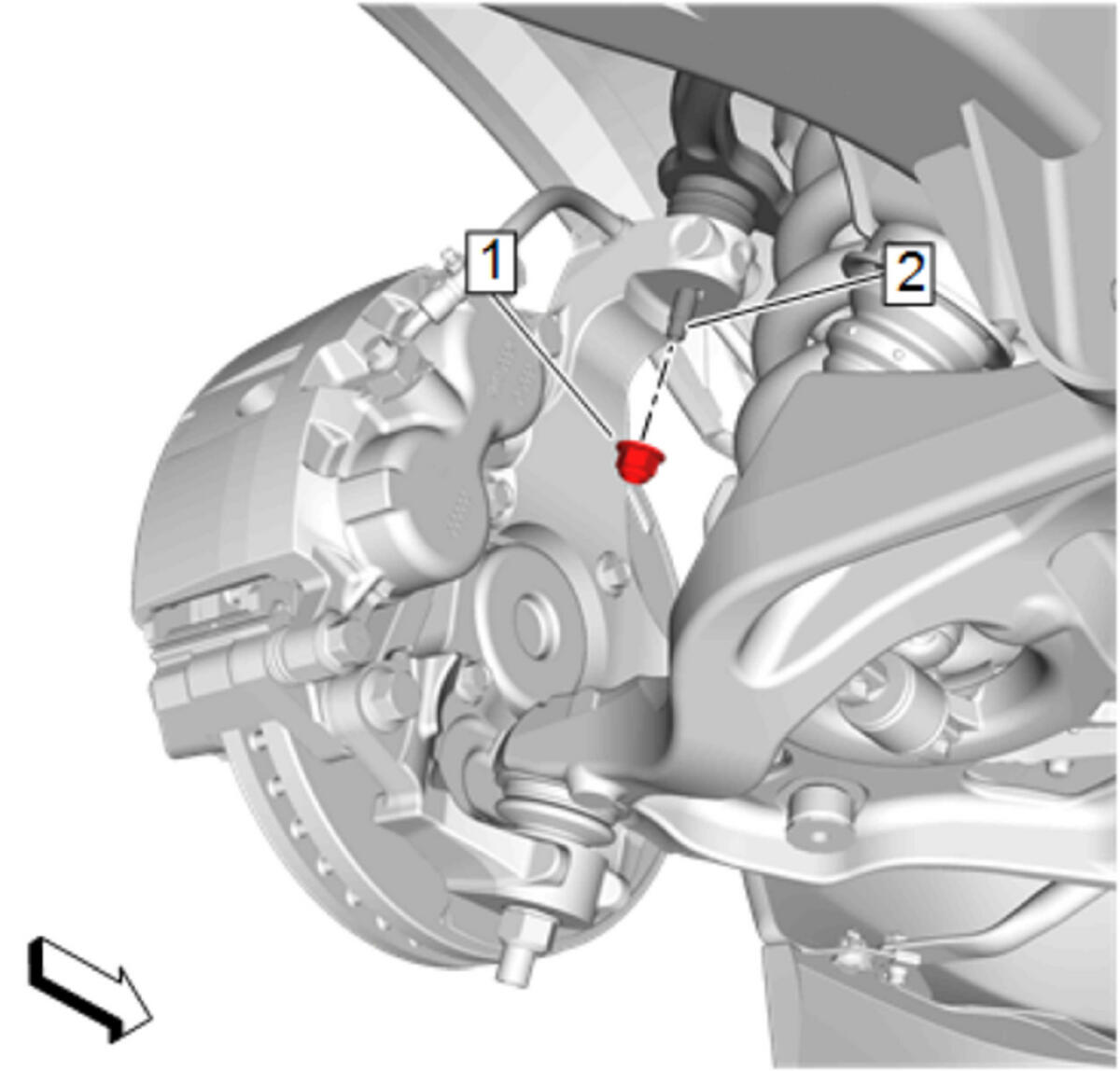

Front Upper Control Arm Ball Stud (2)@Steering Knuckle - Install - Upper Control Arm Replacement
Front Lower Control Arm Ball Stud (2)@Steering Knuckle - Install - Lower Control Arm Replacement
- Remove the jack stand from underneath the front lower control arm.
Front Wheel Hub (1) - Install - Front Wheel Hub, Bearing, and Seal Replacement
Front Wheel Speed Sensor (1)@Steering Knuckle - Install - Front Wheel Speed Sensor Replacement
Front Brake Rotor (1) - Install - Front Brake Rotor Replacement (JH6) , or Front Brake Rotor Replacement (JH9)

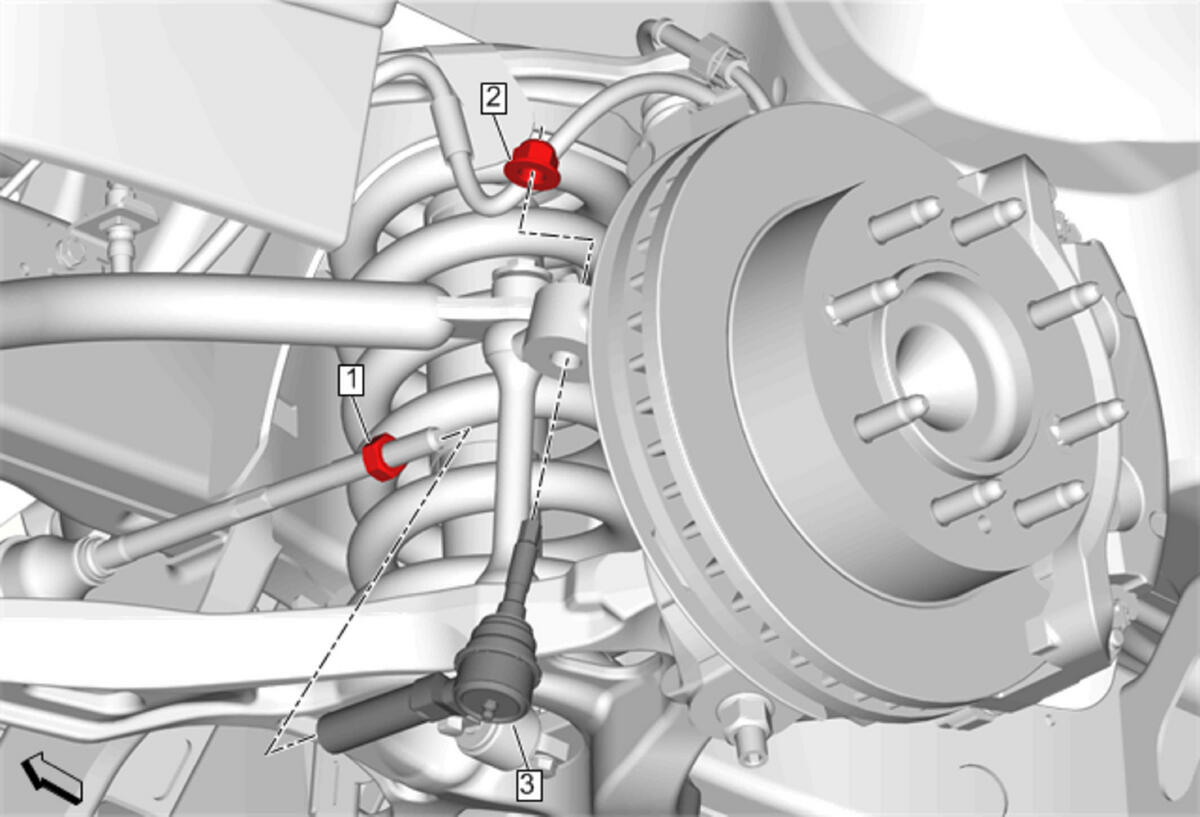

Steering Linkage Outer Tie Rod (3)@Steering Knuckle - Install - Steering Linkage Outer Tie Rod Replacement

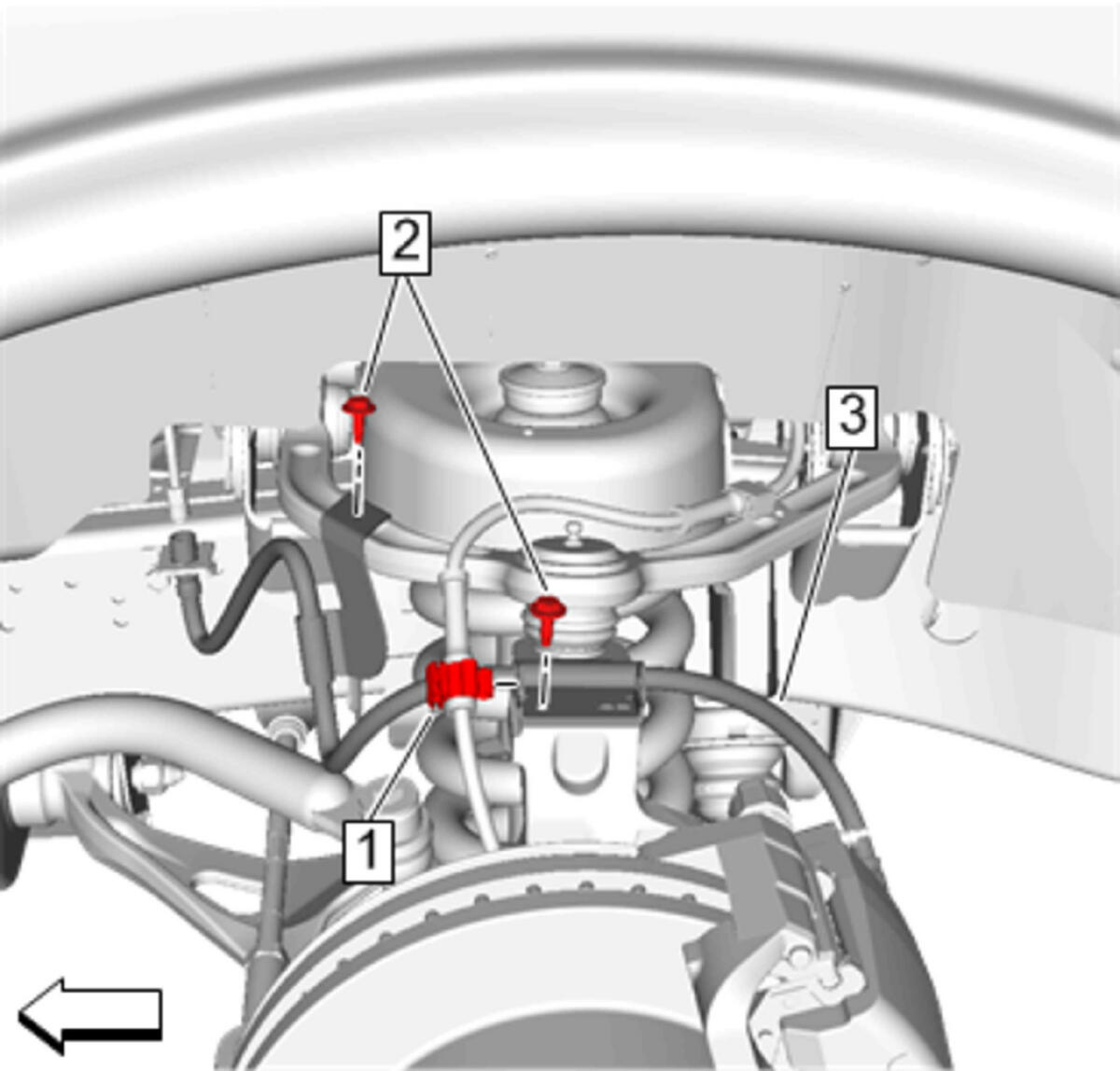

Front Brake Hose (3)@Steering Knuckle - Install - Front Brake Hose Replacement
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
- Remove the support and lower the vehicle.
- Measure and adjust the wheel alignment. Wheel Alignment Measurement
