Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

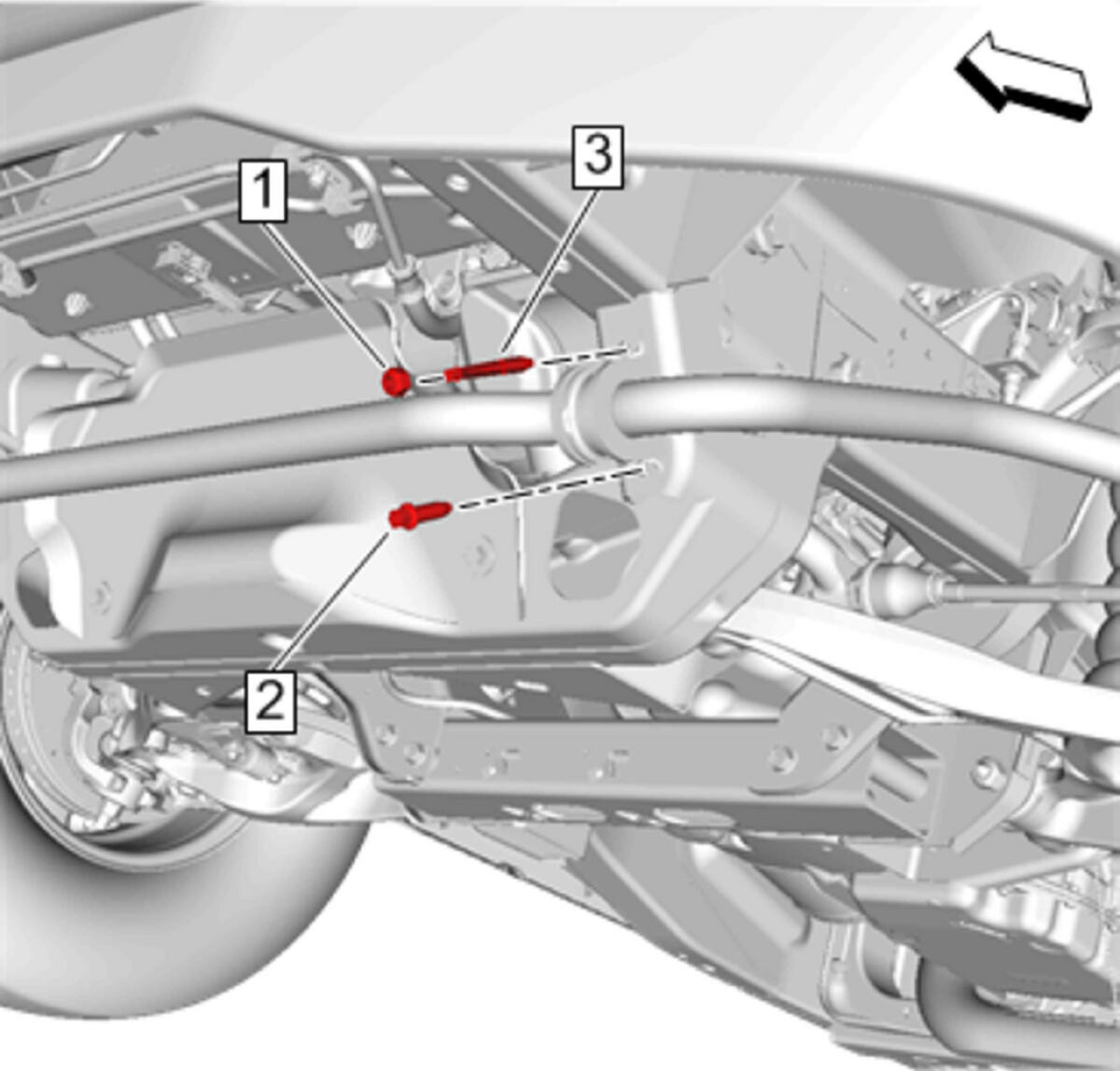

If the front stabilizer shaft insulator clamp studs (3) were removed, install to the upper threaded holes and tighten. 25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

NOTE:

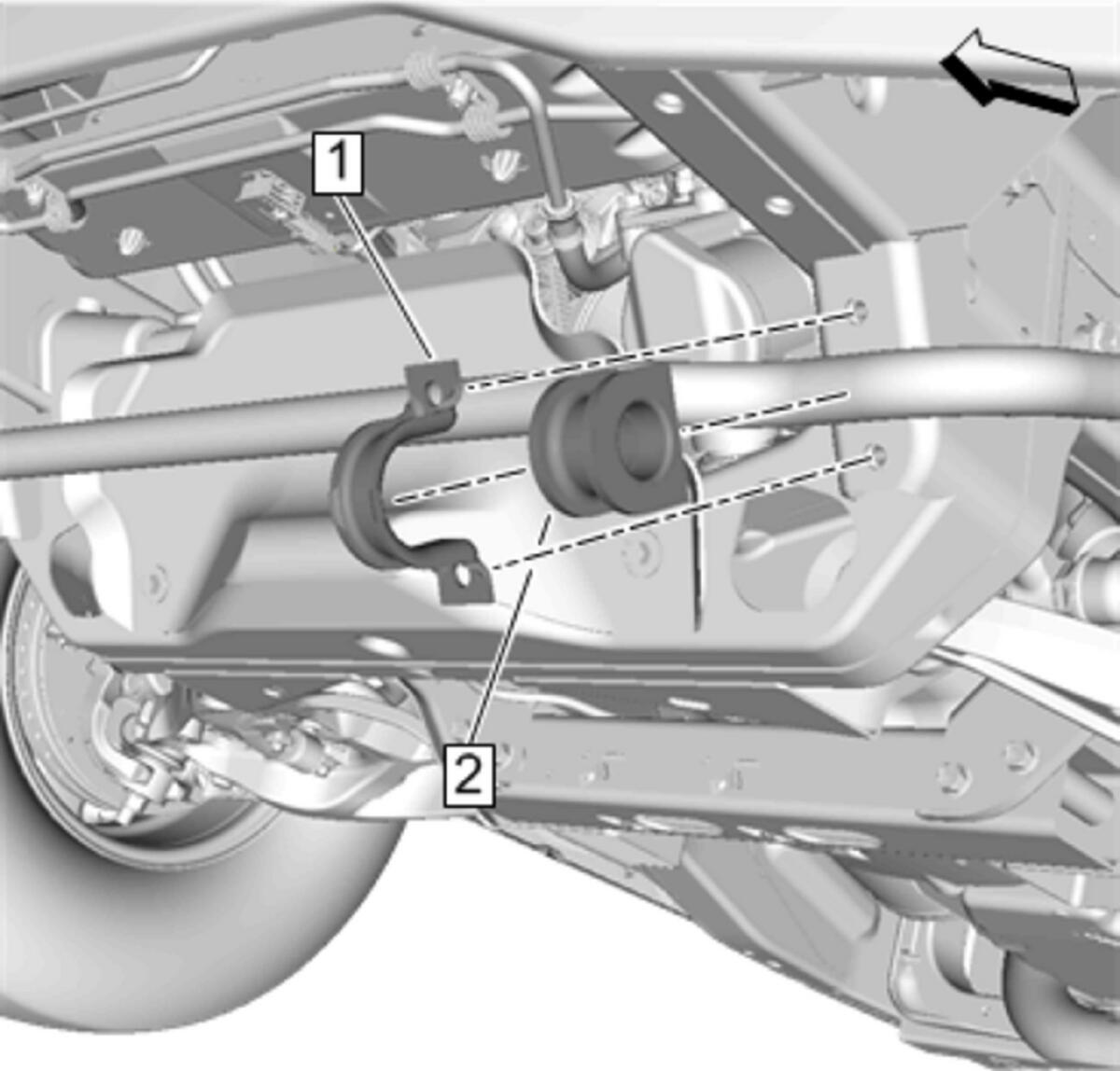

Place the front stabilizer shaft insulators on the front stabilizer shaft with the slits facing upward.

Front Stabilizer Shaft Insulator (2) - Install [2x]
Front Stabilizer Shaft Insulator Clamp (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Stabilizer Shaft Insulator Clamp Bolt (2) - Install and tighten [2x] 50 N.m (37 lb ft)
Front Stabilizer Shaft Insulator Clamp Nut (1) - Install and tighten [2x] 46 N.m (34 lb ft)
Remove the support and lower the vehicle.
