Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

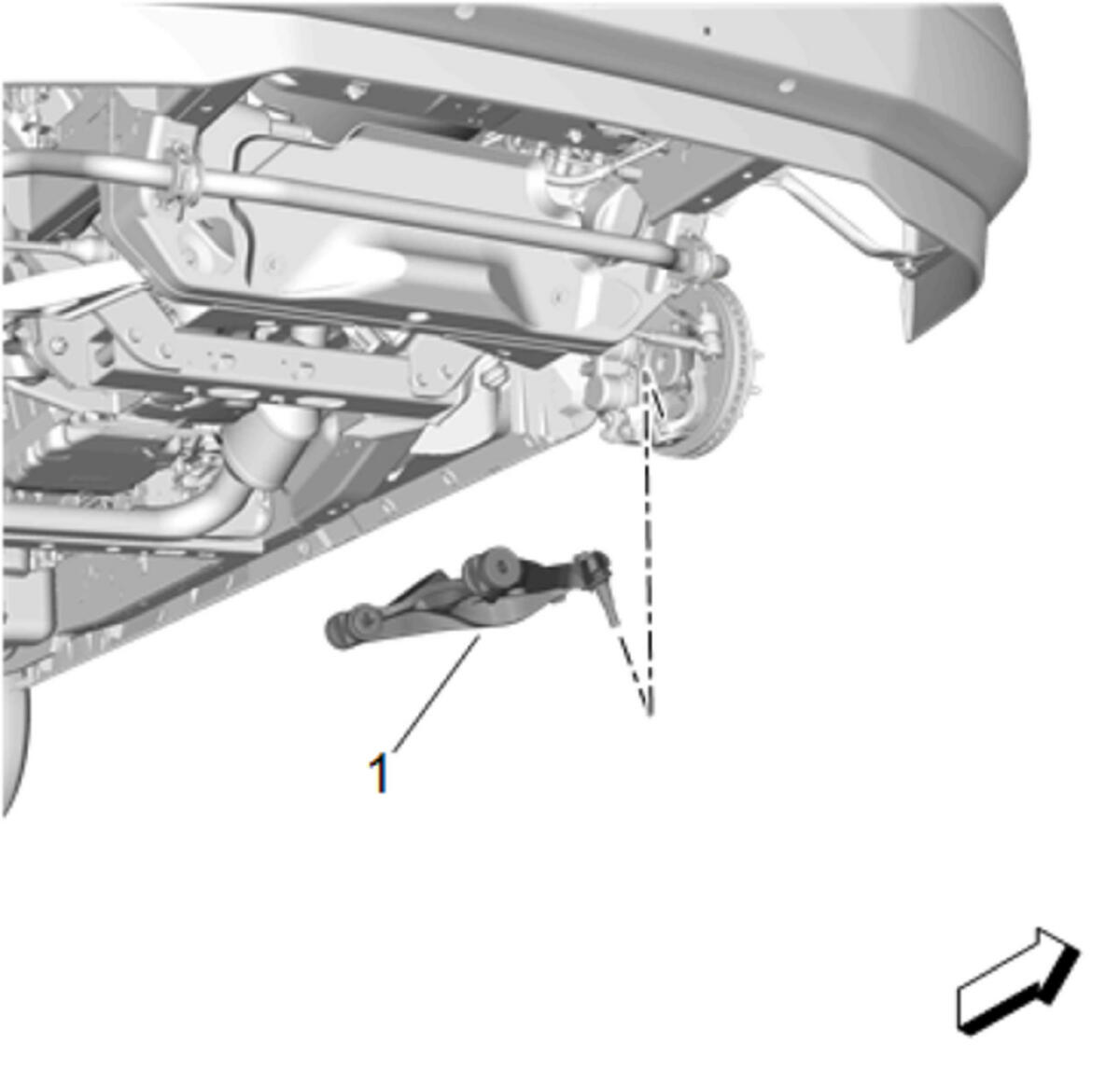

Front Lower Control Arm (1) - Install
- CAUTION:
Refer to Fastener Caution .

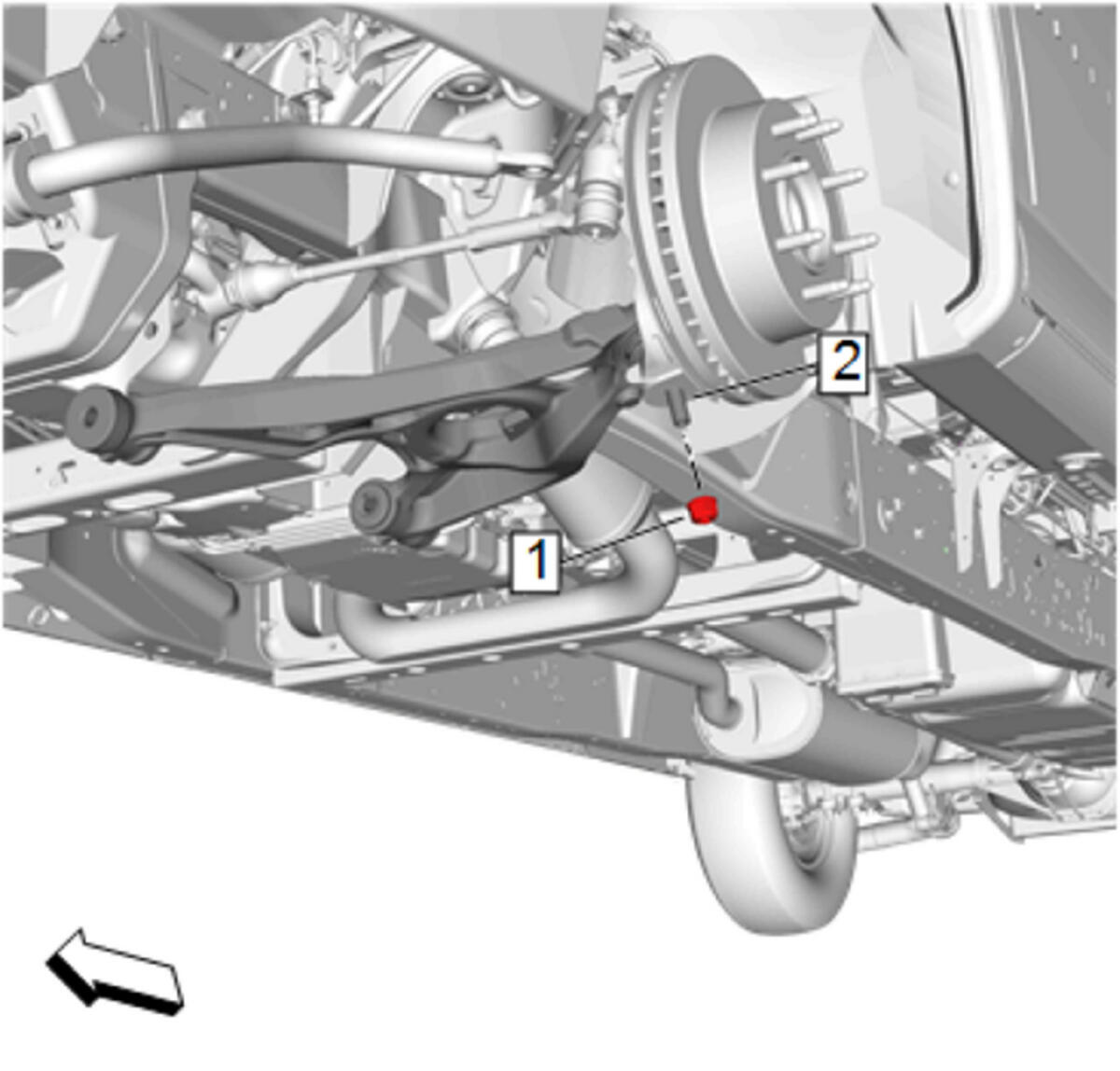

Front Lower Control Arm Ball Stud Nut (1)@Front Lower Control Arm Ball Stud (2) - Install and tighten
- First Pass:65 N.m (48 lb ft)
- Final Pass:60 - 75 Degrees

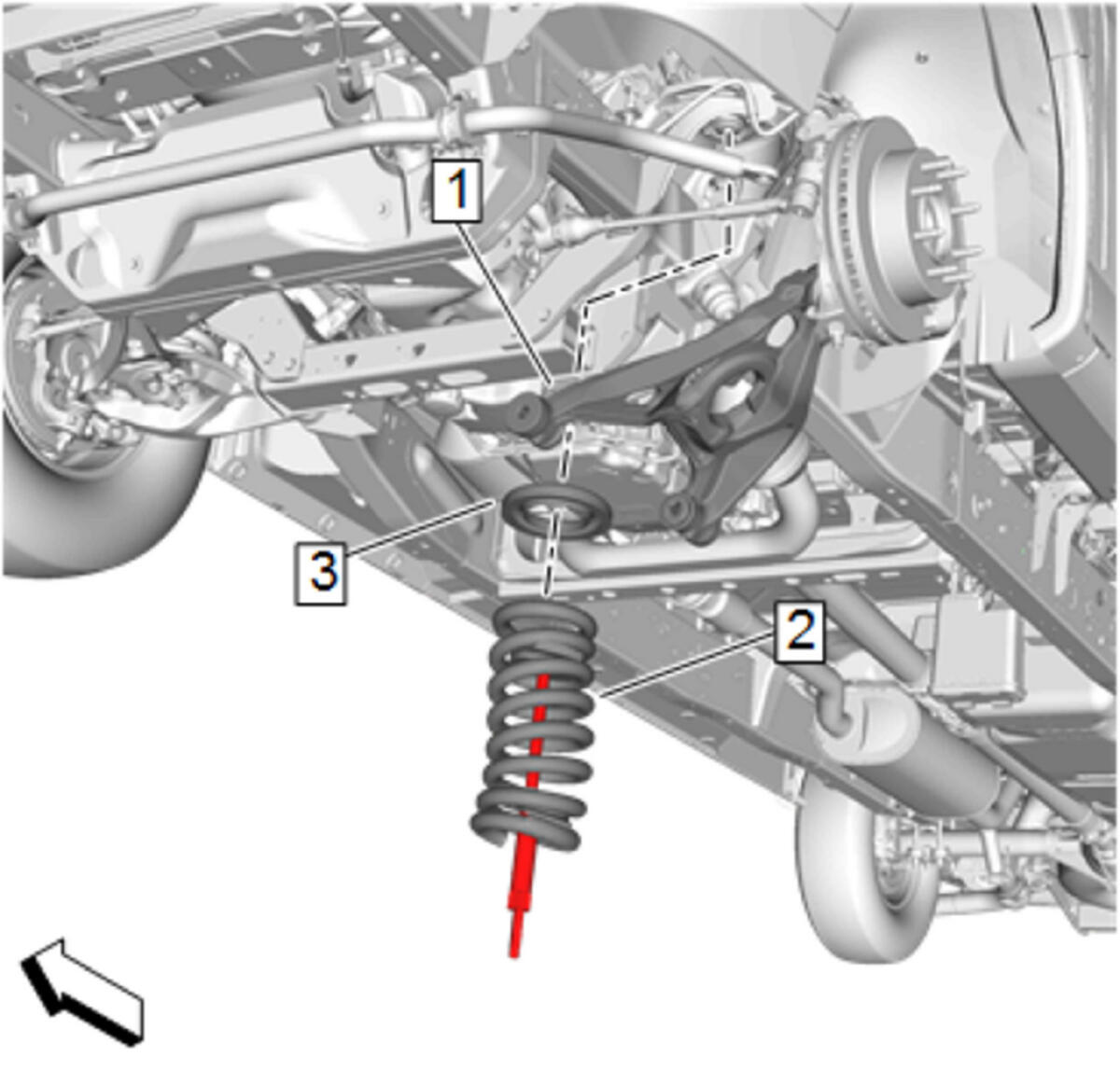

Front Coil Spring (2) - Install - Front Spring Replacement (without C7I) , or Front Spring Replacement (with C7I)
- Front Stabilizer Shaft Link - Install - Stabilizer Shaft Replacement

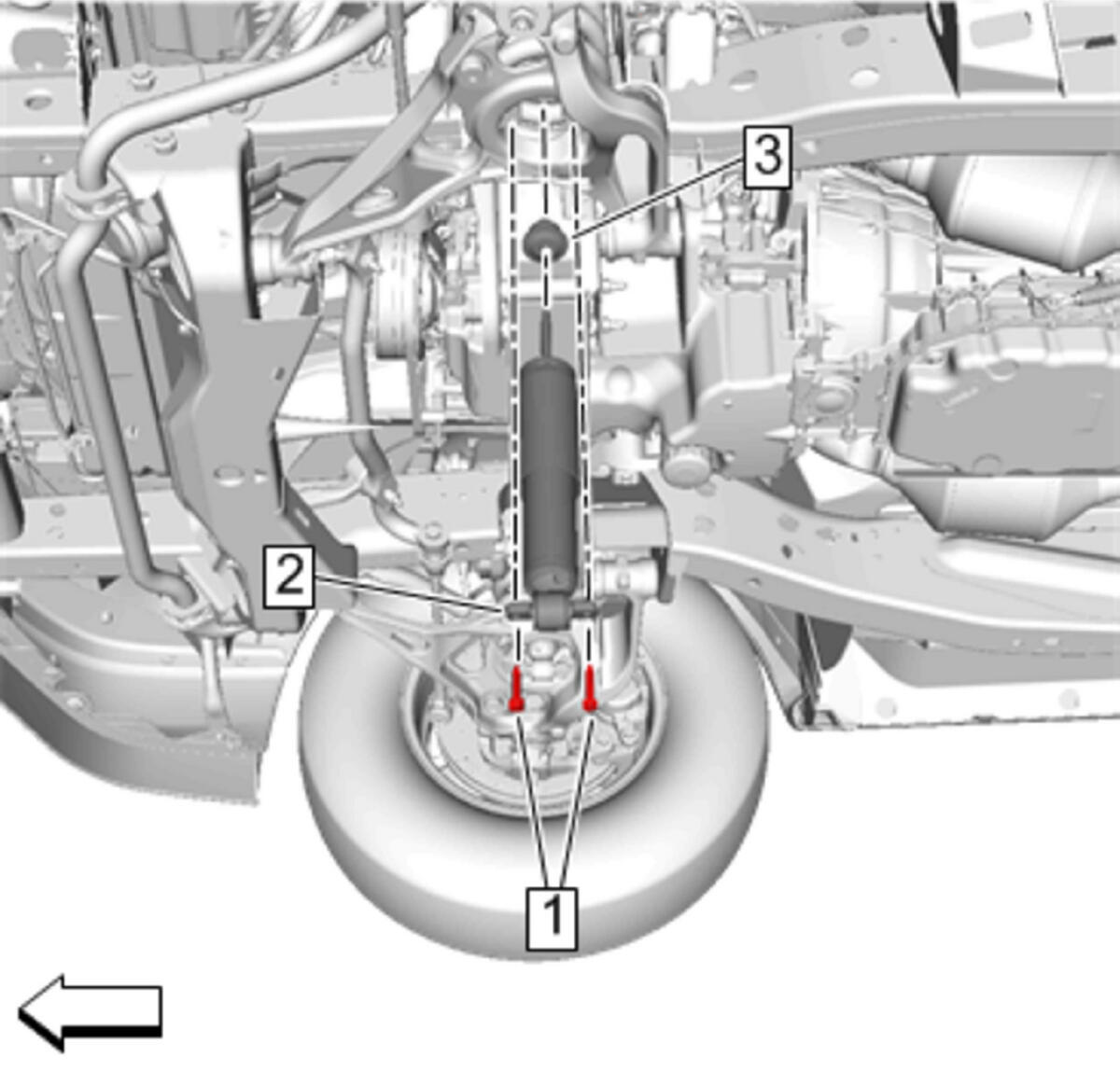

Front Shock Absorber (2) - Install - Shock Absorber Replacement
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
- Remove the support and lower the vehicle.
- Measure and adjust the wheel alignment. Wheel Alignment Measurement
