Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle.
- Remove the front tire and wheel assembly. Lifting and Jacking the Vehicle
Front Brake Rotor (1) - Remove - Front Brake Rotor Replacement (JH6) , or Front Brake Rotor Replacement (JH9)
- Disconnect and reposition the wheel speed sensor harness from the upper control arm and steering knuckle. Front Wheel Speed Sensor Replacement

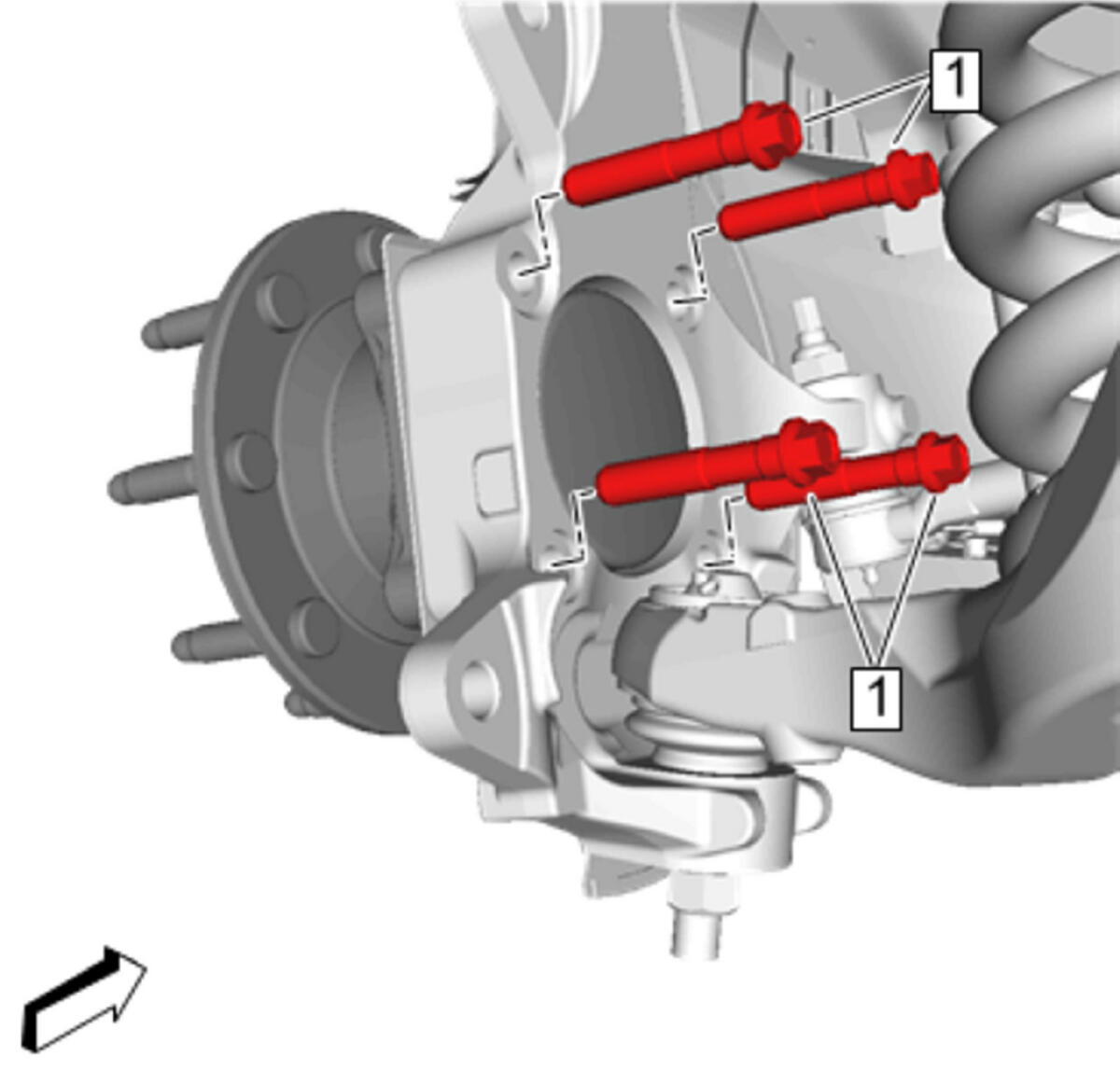

Front Wheel Bearing Bolt (1) - Remove [4x]
Front Wheel Hub (1) - Remove
Front Brake Shield (1) - Remove

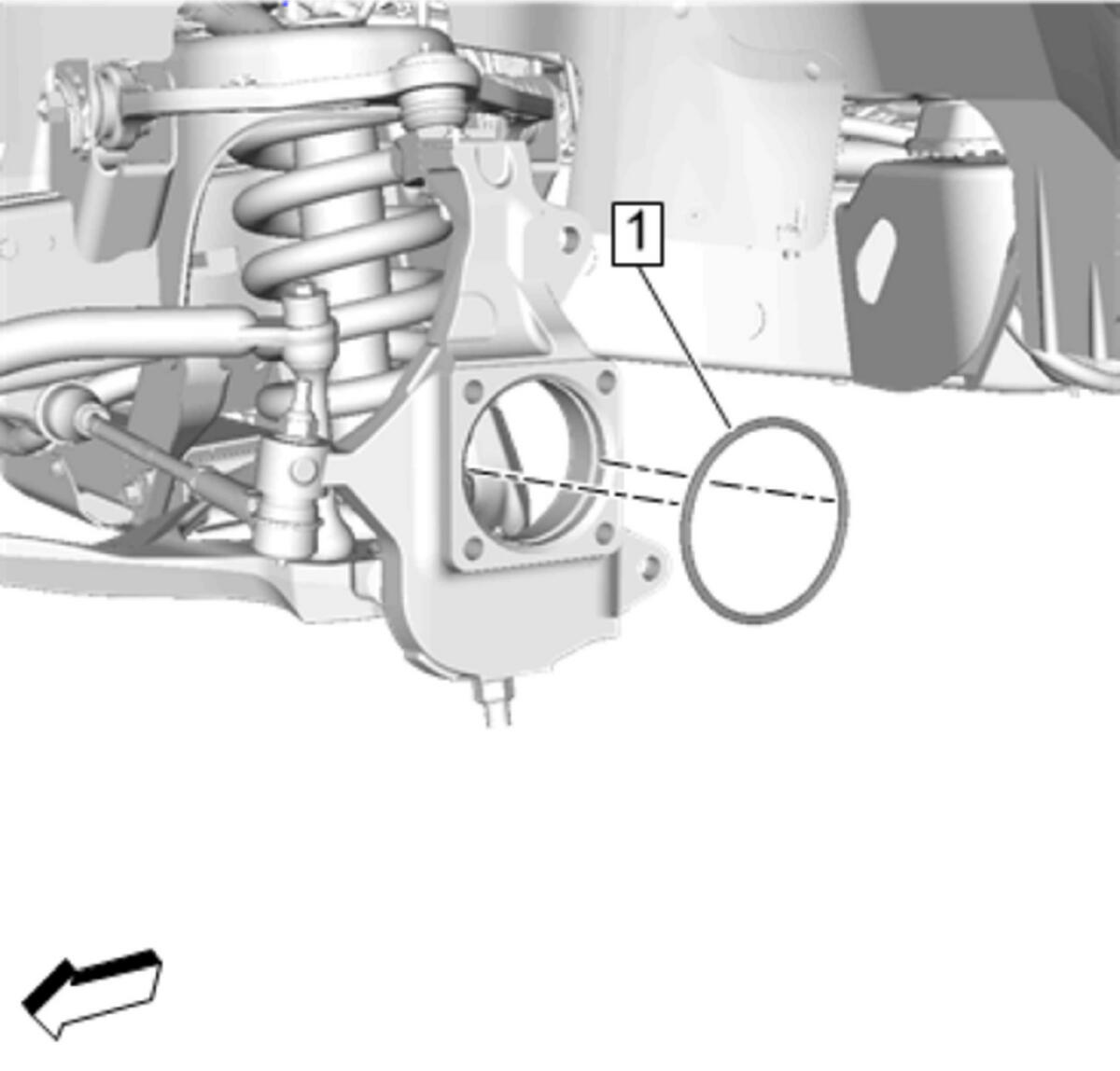

Front Wheel Hub Seal (1) - Remove
