Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)

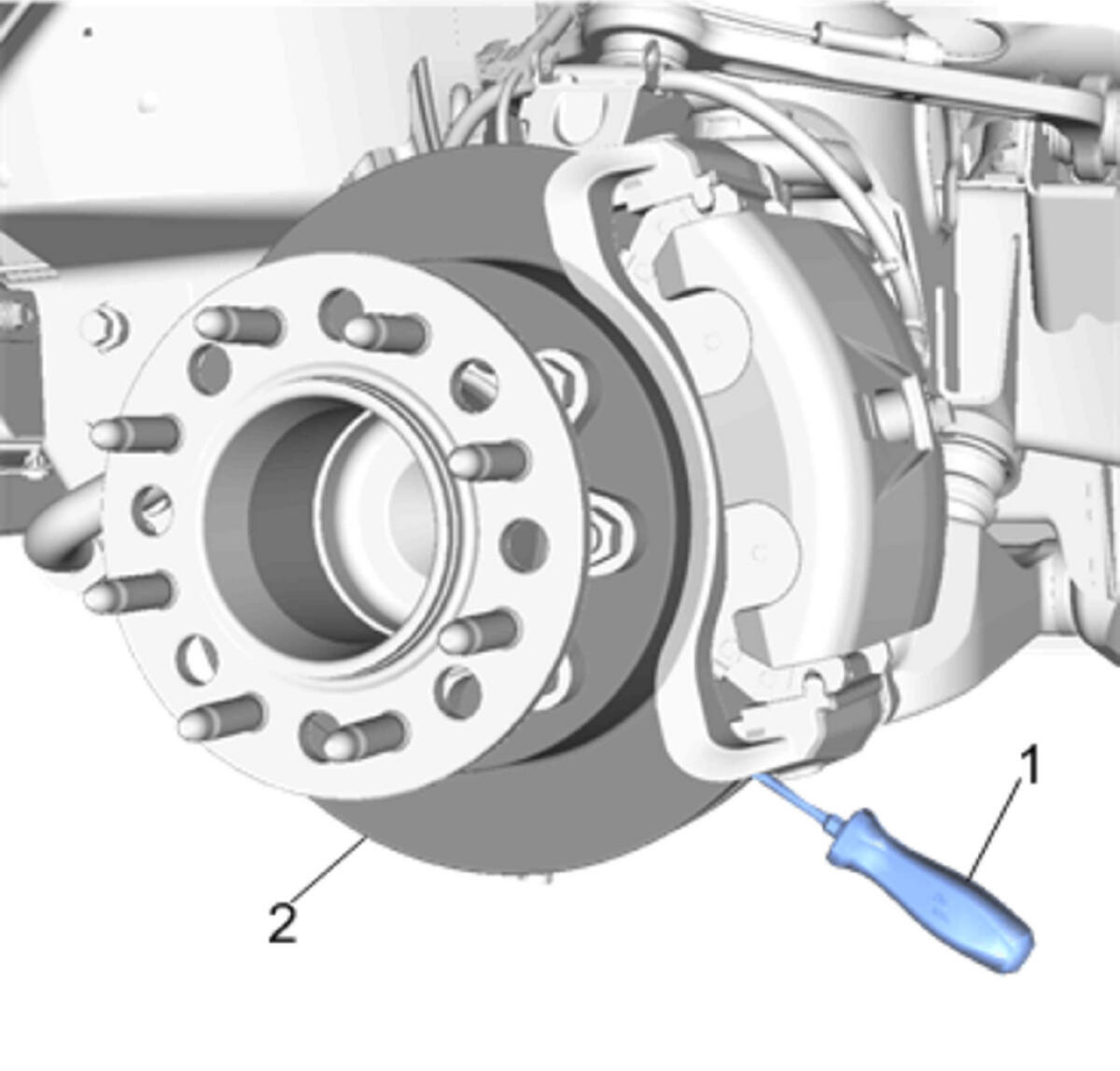

Insert a suitably sized flat bladed tool (1) into the cooling fins of the front brake rotor (2) in order to prevent the rotor and hub assembly from rotating.

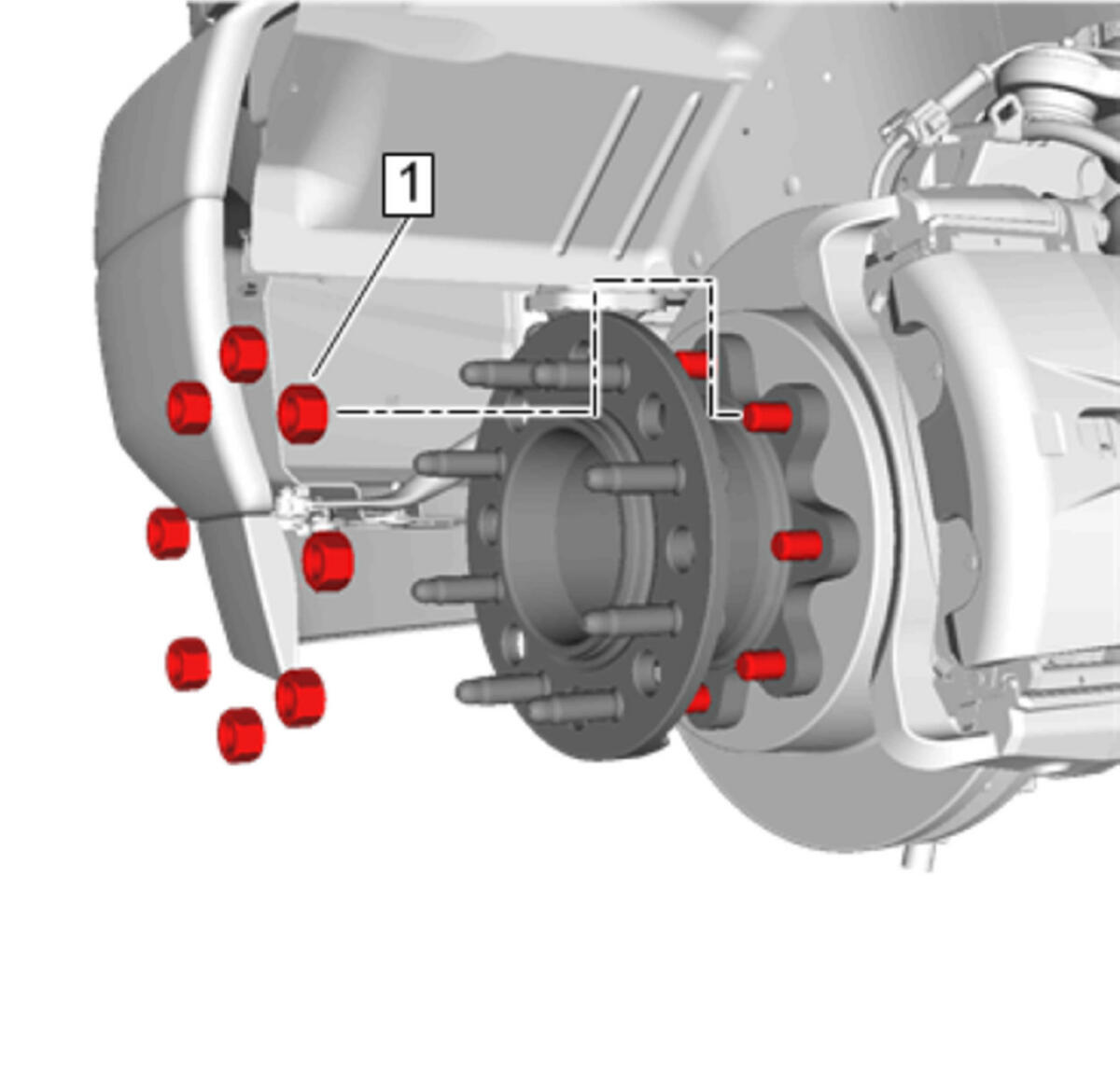

Front Wheel Hub Extension Nuts (1) - Remove [8x]
Front Wheel Hub Extension (1)@Front Brake Rotor - Remove
