Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

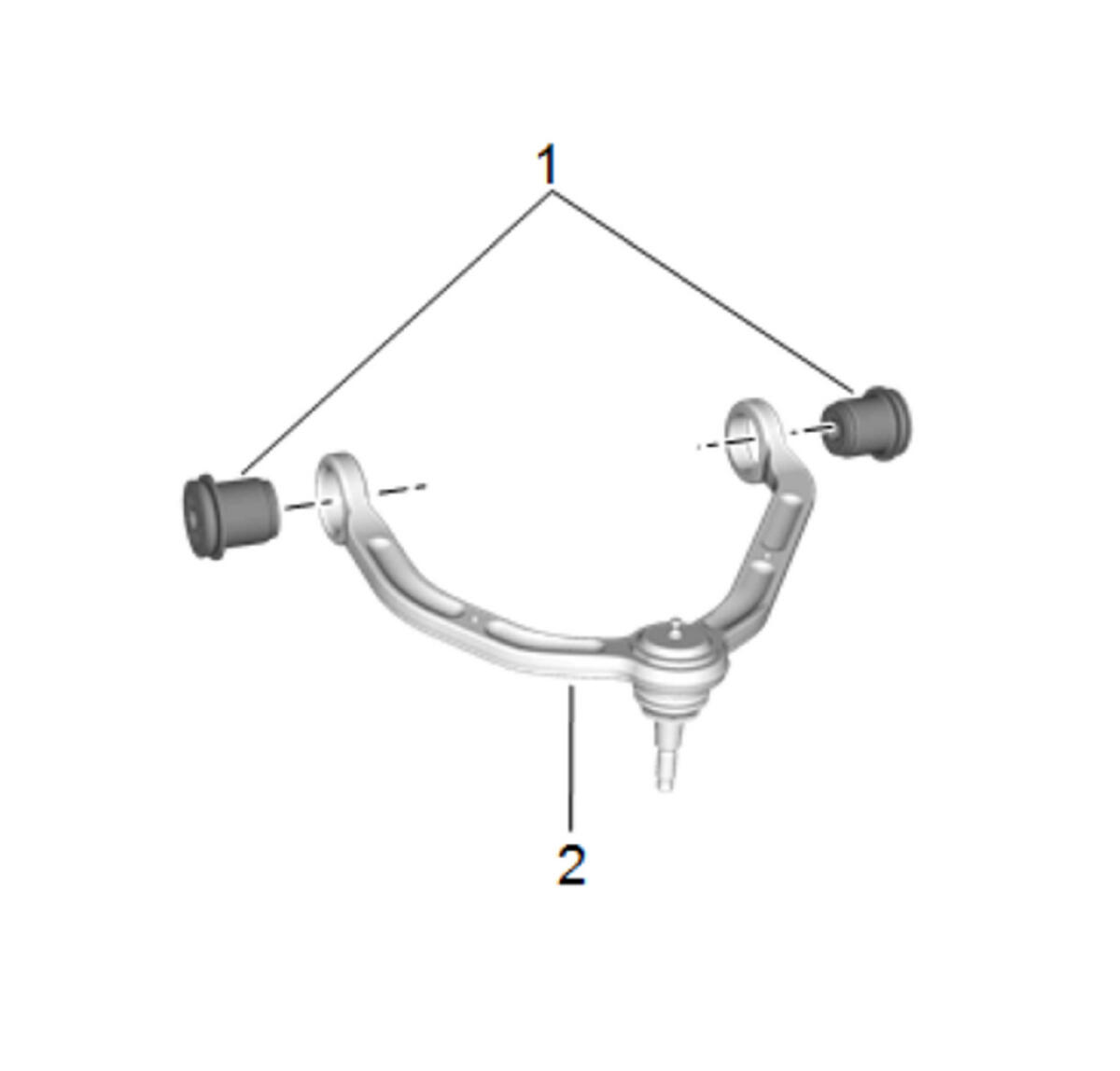

  1. GM4920757Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use the appropriate tools to install the front upper control arm bushings.

    Front Upper Control Arm Bushing (1)@Front Upper Control Arm - Install [2x]

  2. Remove the front upper control arm from the vice.

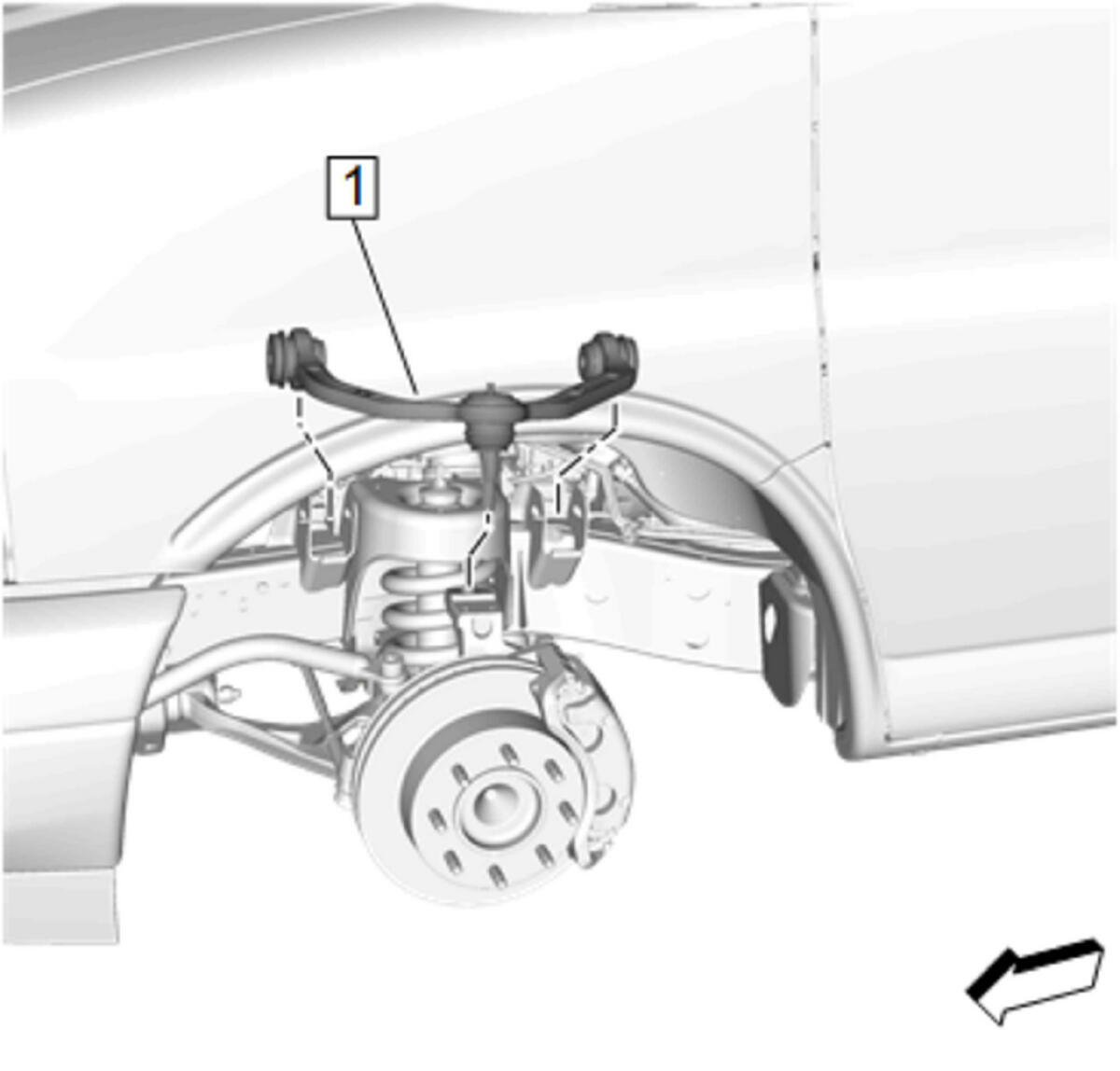

  3. GM4920683Courtesy of GENERAL MOTORS COMPANY

    Front Upper Control Arm (1) - Install - Upper Control Arm Replacement

  4. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
  5. Remove the support and lower the vehicle.
  6. Measure and adjust the wheel alignment. Wheel Alignment Measurement
