Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

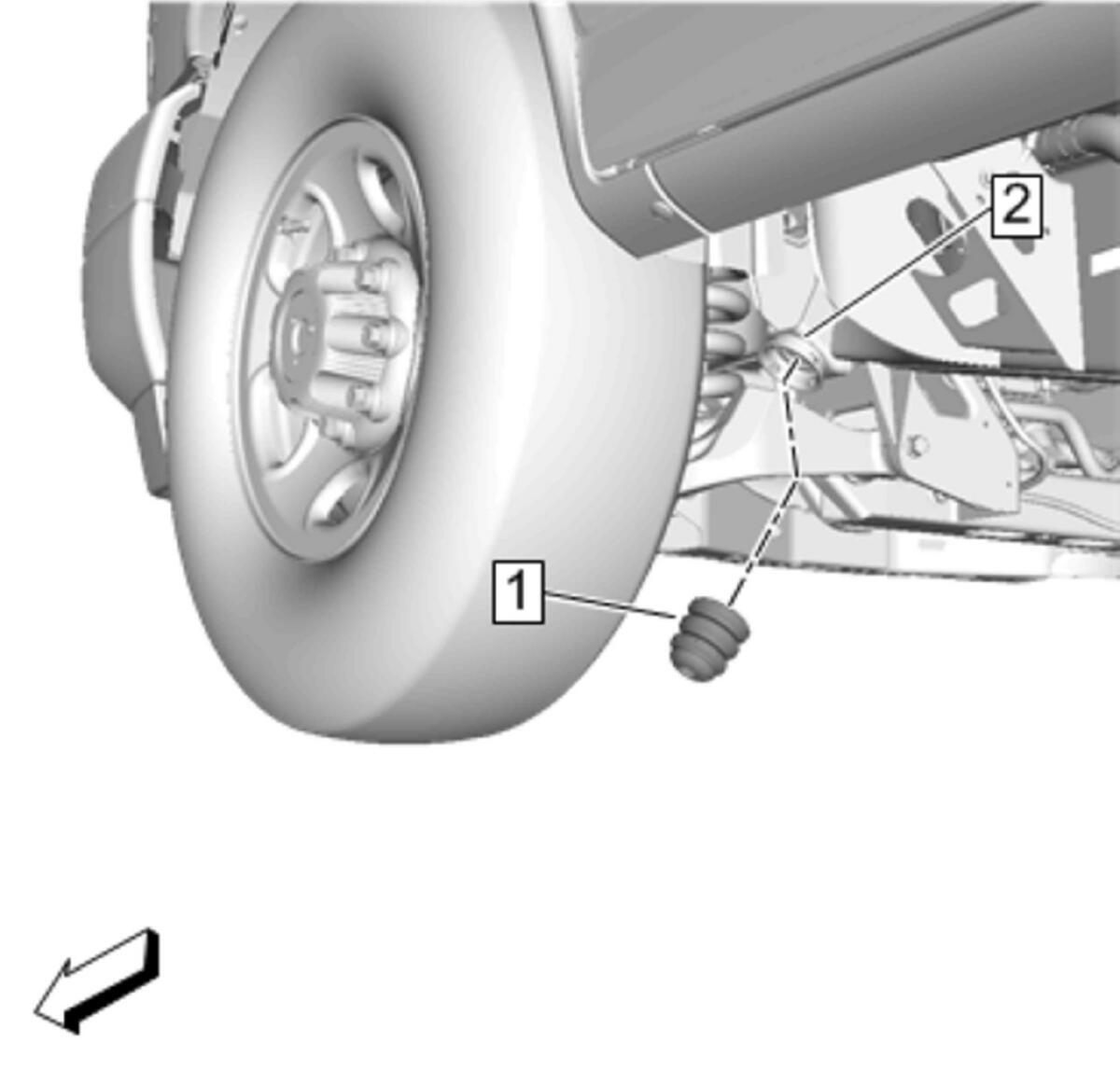

  1. GM4892041Courtesy of GENERAL MOTORS COMPANY

    Front Lower Control Arm Bumper (1)@ Front Jounce Bumper Cup (2) - Install

  2. Remove the support and lower the vehicle.
