Rear Bumper Harness Routing

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

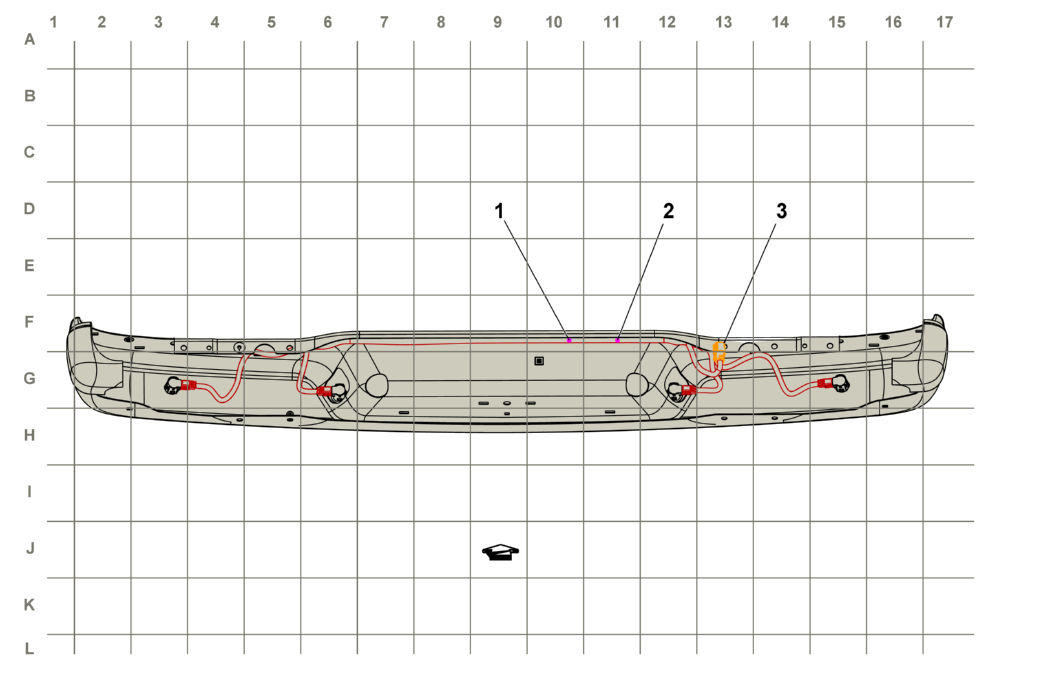

GM4861830Courtesy of GENERAL MOTORS COMPANY
Items
1. J426 Parking Aid Jumper Harness (UFT)
2. J425 Parking Aid Jumper Harness (UFT)
3. X408 Rear Bumper Harness to Chassis Harness (UD7 or UFT) X408 Rear Fascia Harness to Chassis Harness
