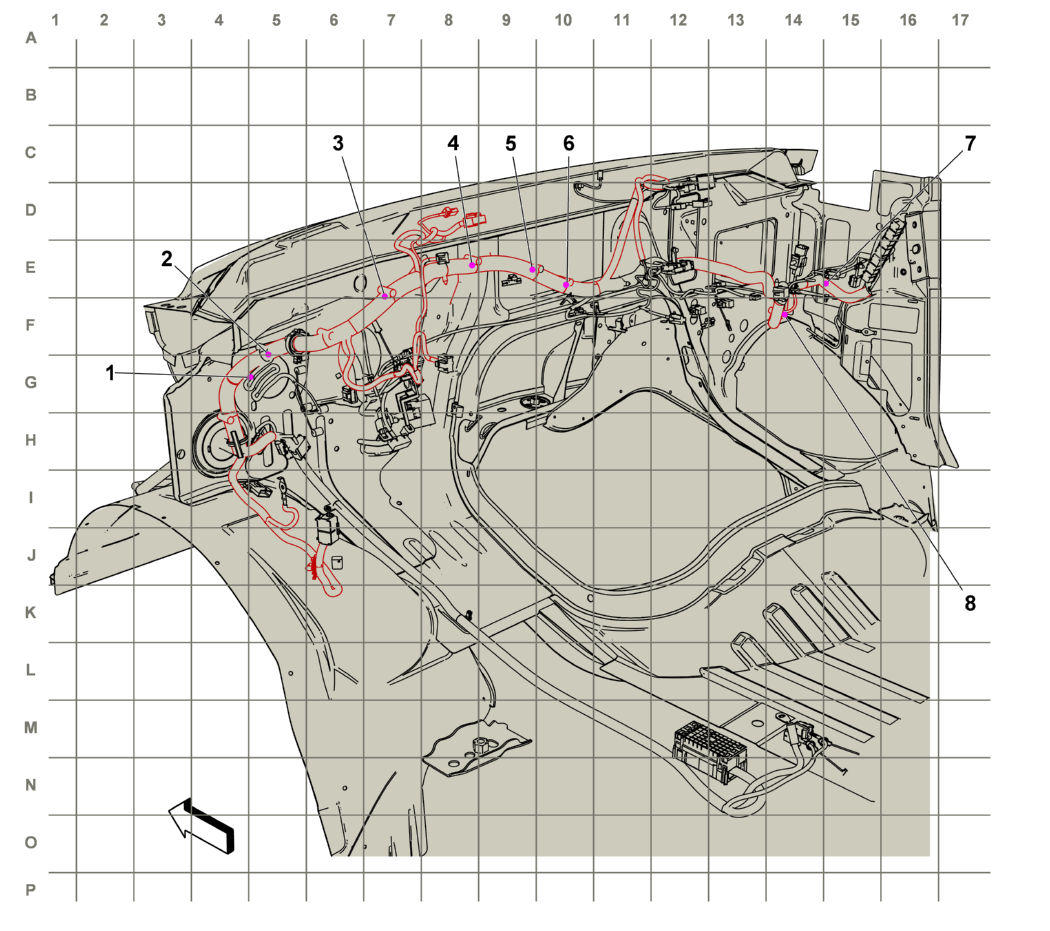

Instrument Panel Harness Routing - Dash Area (2 of 2)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
GM4866088Courtesy of GENERAL MOTORS COMPANY
Items
1. J247 Instrument Panel
2. J244 Instrument Panel
3. J248 Instrument Panel
4. J207 Instrument Panel
5. J246 Instrument Panel (DEB or DE5)
6. J245 Instrument Panel (DEB or DE5)
7. J249 Instrument Panel
8. J250 Instrument Panel
