Engine Harness Routing - Left Rear of Engine (L96 or LC8)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

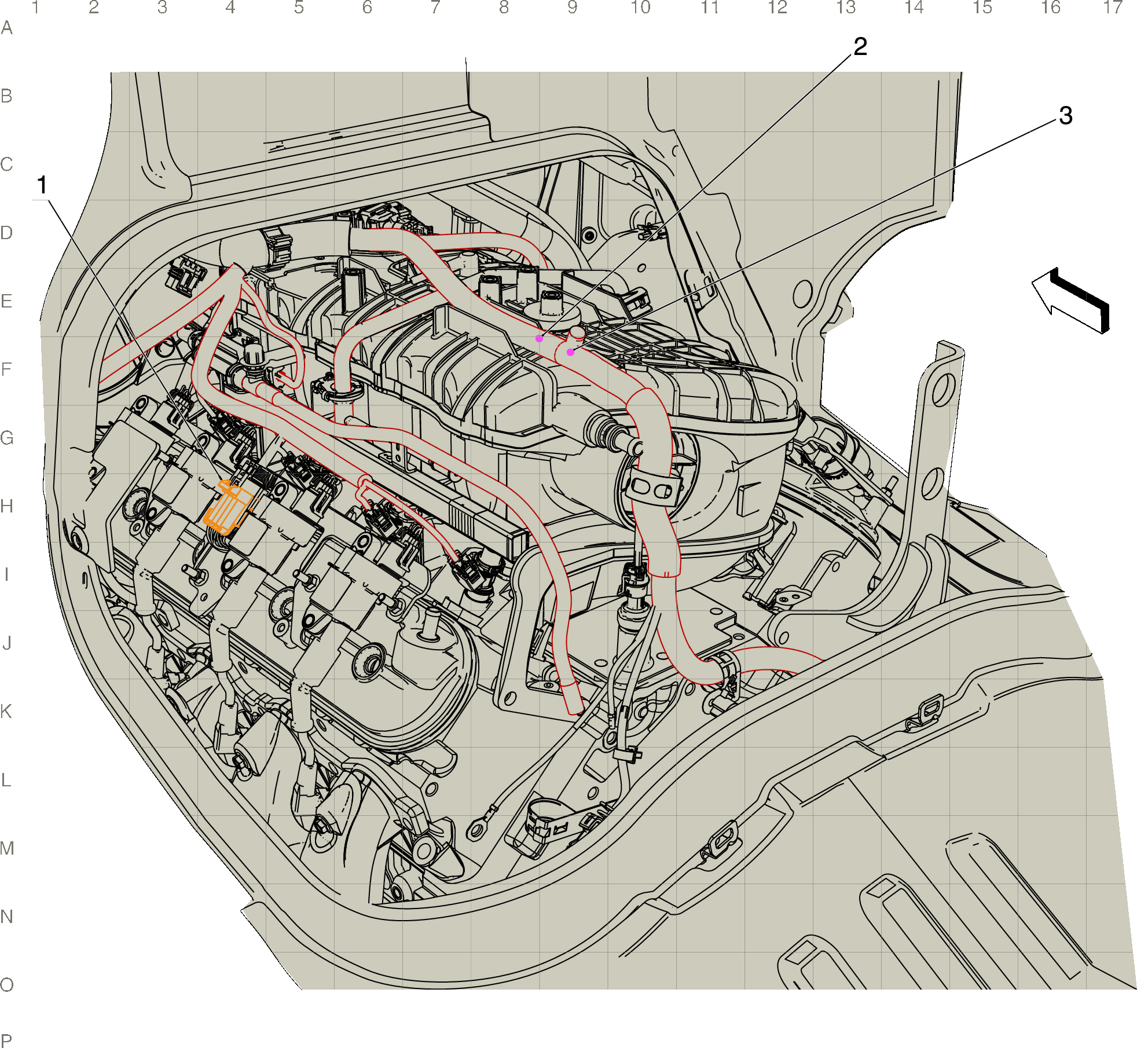

GM4005938Courtesy of GENERAL MOTORS COMPANY
Items
1. X126 Engine Harness to Ignition Coil Harness (L96, or LC8) X126 Engine Harness to Ignition Coil Harness
2..J101 Engine Harness
3. J102 Engine Harness
