Engine Harness Routing - Front (LV1)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

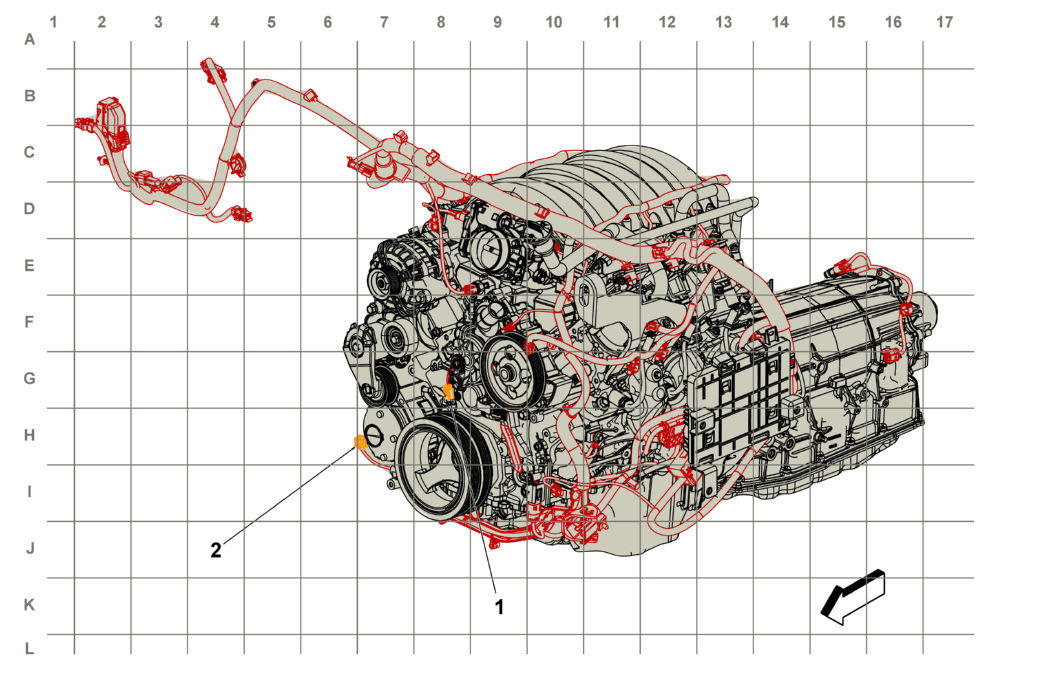

GM4861804Courtesy of GENERAL MOTORS COMPANY
Items
1. X135 Camshaft Position Sensor Jumper Harness to Oil Control Solenoid Valve Jumper Harness (LV1) X135 Camshaft Position Sensor Jumper Harness to Oil Control Solenoid Valve Harness
2. X130 Engine Harness to Camshaft Position Sensor Jumper Harness (LV1) X130 Engine Harness to Camshaft Position Sensor Jumper Harness
