Chassis Harness Routing (L96 or LC8)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

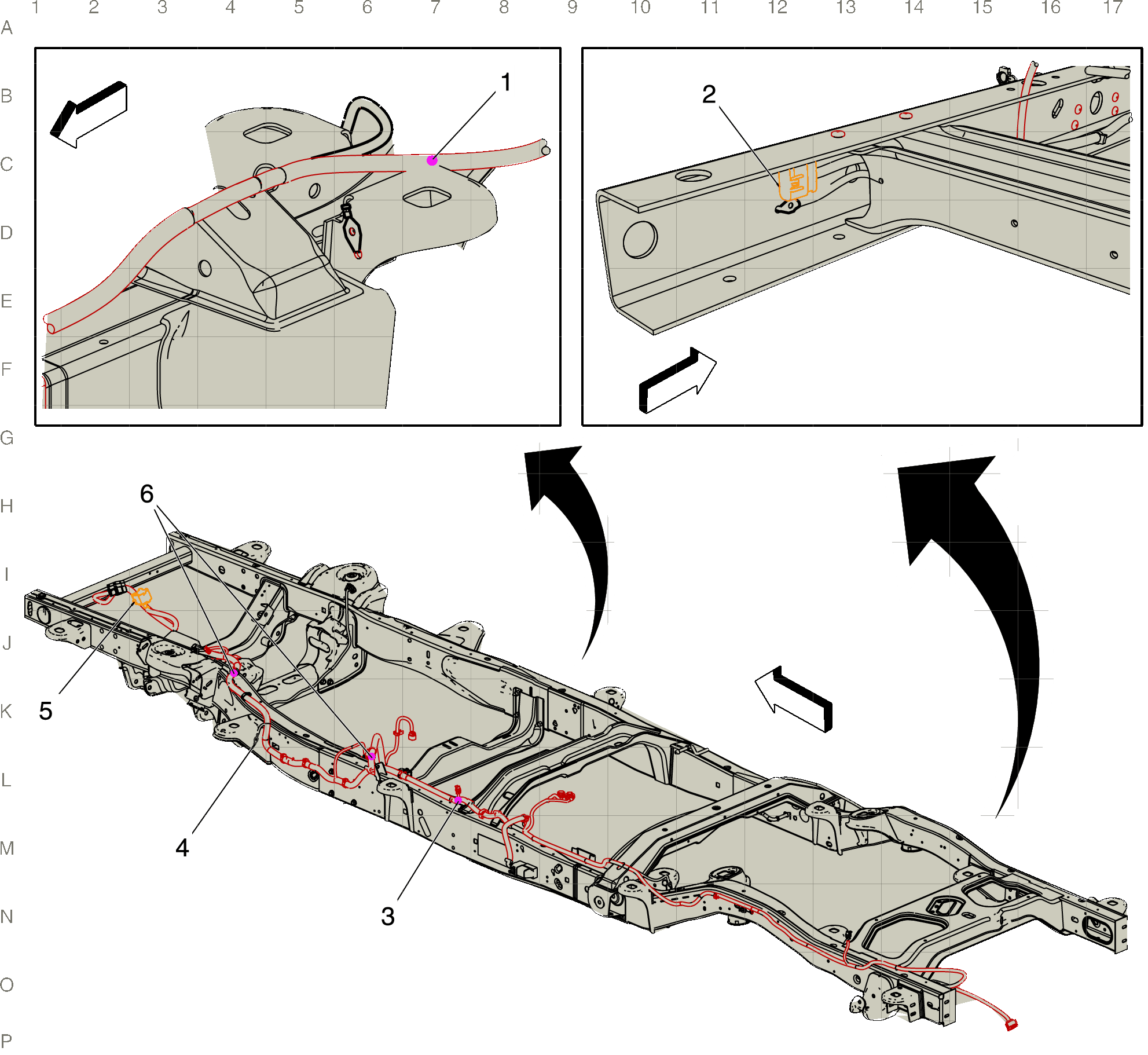

GM2830812Courtesy of GENERAL MOTORS COMPANY
Items
1. J402 Chassis Harness
2. X405 Cutaway Rear Lighting Connector to Chassis Harness (Cutaway) X405 Chassis Harness to Chassis Harness
3. J301 Chassis Harness (LV1, L96, or LC8)
4. G300 Chassis Harness
5. X101 Engine Harness to Chassis Harness (LV1, L96, or LC8) X101 Engine Harness to Chassis Harness
6. J315 Chassis Harness
