Body Harness Routing - Roof Area

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

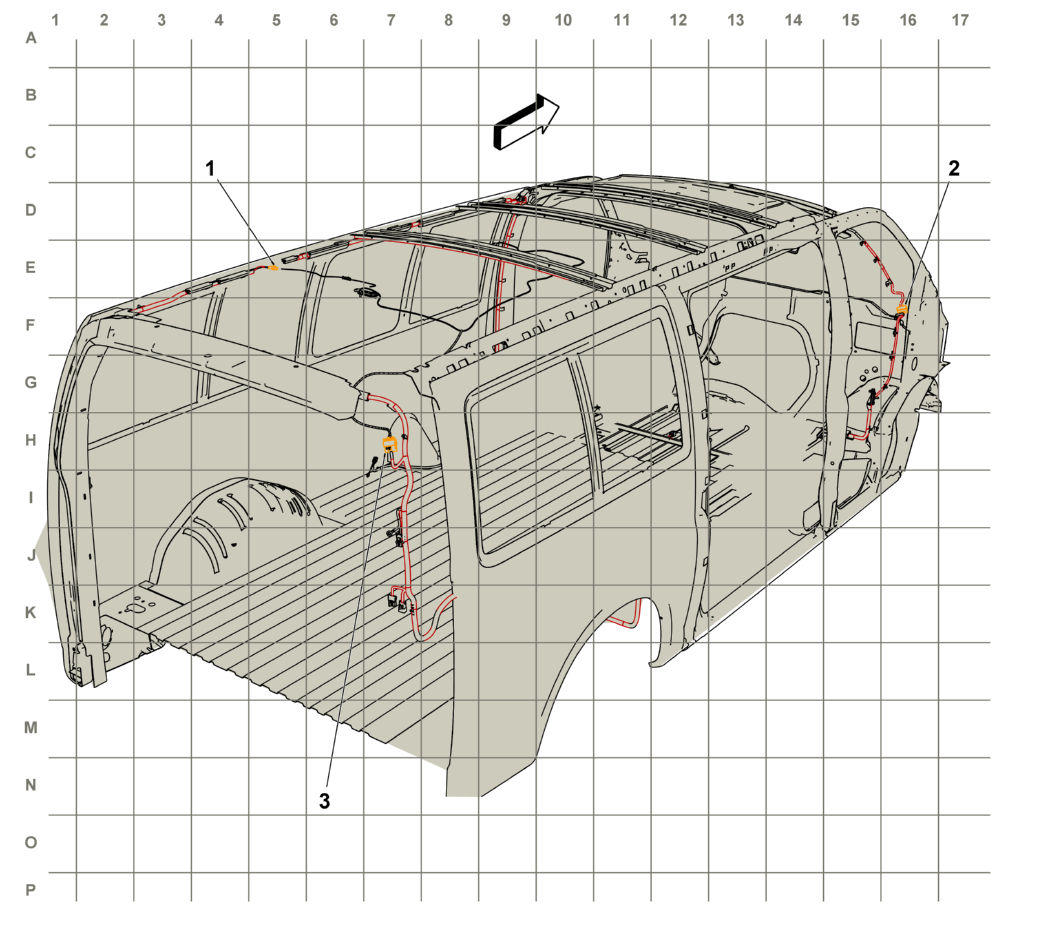

GM4664694Courtesy of GENERAL MOTORS COMPANY
Items
1. X421 Body Harness to Headliner Harness X421 Body Harness to Headliner Harness
2. X205 Front Headliner Harness to Body Harness X205 Headliner Harness to Body Harness
3. X420 Right Rear Lamp Harness to Body Harness (Passenger or Cargo) X420 Right Rear Lamp Harness to Body Harness
