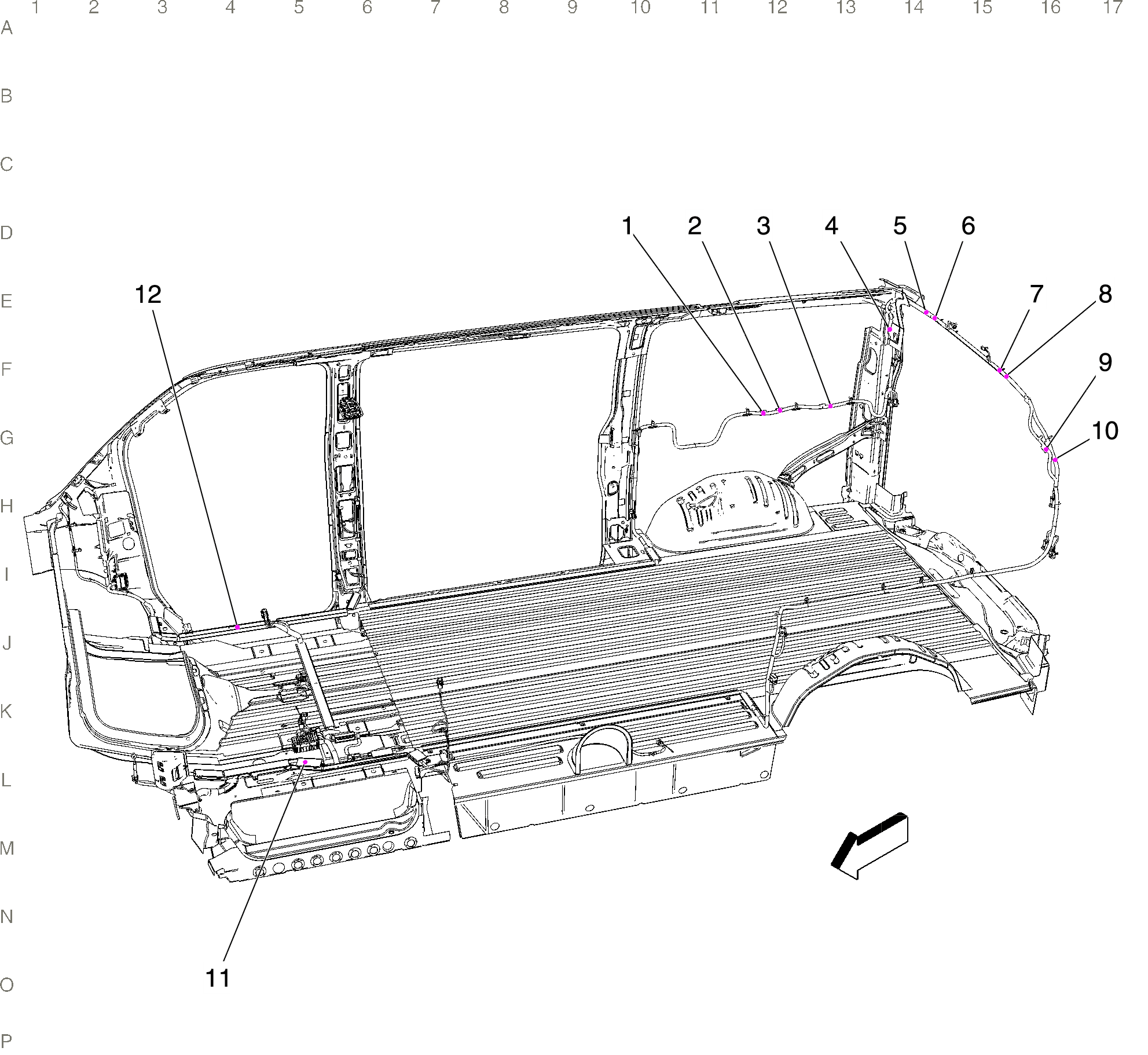

Body Harness Routing - Rear Overview (Passenger or Cargo)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J308 Body Harness (C69) |
| 2. J310 Body Harness (C69) |
| 3. J311 Body Harness (C69) |
| 4. J403 Body Harness (Cargo or Passenger) |
| 5. J451 Body Harness (YF2 or YF7) |
| 6. J450 Body Harness (YF2 or YF7) |
| 7. J453 Body Harness (YF2 or YF7) |
| 8. J452 Body Harness (YF2 or YF7) |
| 9. J410 Body Harness (Cargo or Passenger) |
| 10. J401 Body Harness (C36, C49, or C69) |
| 11. J356 Body Harness |
| 12. J331 Body Harness (Passenger) |
