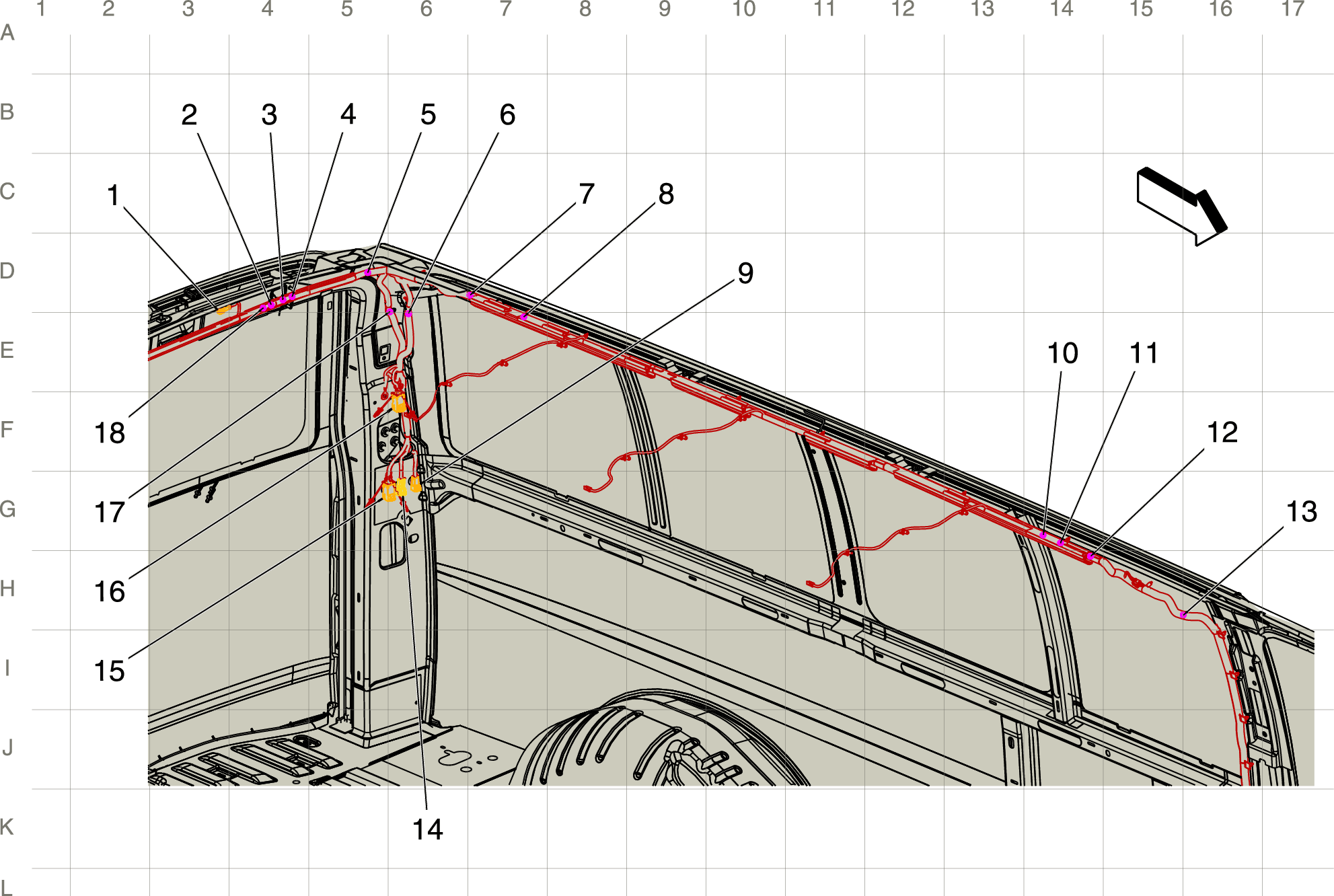

Body Harness Routing - Left Rear Passenger Compartment (Passenger or Cargo)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X419 Center High Mounted Stop Lamp Harness to Body Harness (Passenger or Cargo) X419 Center High Mounted Stop Lamp Harness to Body Harness |
| 2. J452 Body Harness (YF2 or YF7) |
| 3. J401 Body Harness (C36, C49, or C69) |
| 4. J410 Body Harness (Cargo or Passenger) |
| 5. J318 Body Harness (WRF) |
| 6. J310 Body Harness (C69) |
| 7. J317 Body Harness (WRF) |
| 8. J308 Body Harness (C69) |
| 9. X407 Auxiliary HVAC Harness to Body Harness (C36 or C69) X407 Auxiliary HVAC Harness to Body Harness |
| 10. J316 Body Harness (WRF) |
| 11. J356 Body Harness |
| 12. J313 Body Harness (WRF) |
| 13. J312 Body Harness (WRF) |
| 14. X409 Auxiliary HVAC Harness to Body Harness (C36 or C69) X409 Auxiliary HVAC Harness to Body Harness |
| 15. X411 Left Rear Cargo Door Harness to Body Harness (Passenger or Cargo) X411 Left Rear Cargo Door Harness to Body Harness |
| 16. X410 Left Rear Lamp Harness to Body Harness (Passenger or Cargo) X410 Left Rear Lamp Harness to Body Harness |
| 17. J311 Body Harness (C69) |
| 18. J453 Body Harness (YF2 or YF7) |
