Rear Bumper Valance Panel Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

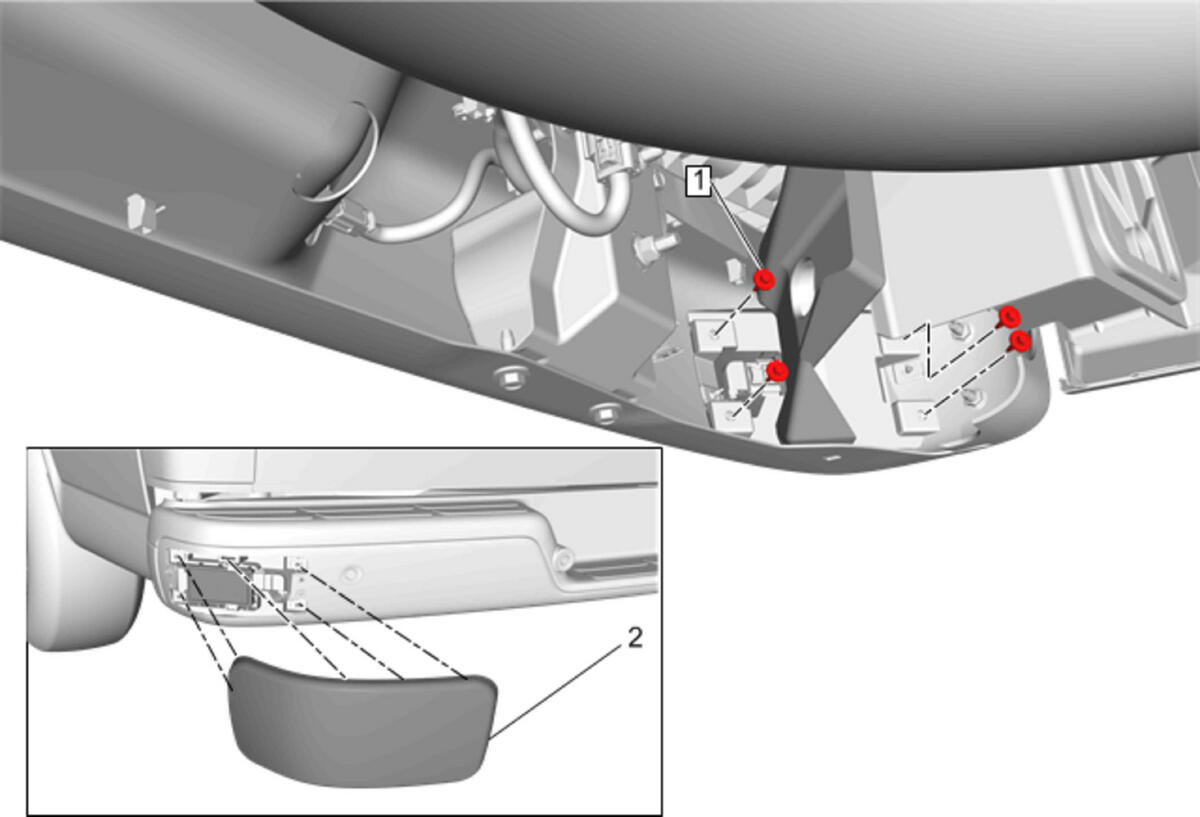

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Rear Bumper Valance Panel Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5N.m (22 lb in)
2	Rear Bumper Valance Panel Procedure Preliminary Procedures Using a trim type tool, release the center upper retainer and remove. Lower the vehicle. Lifting and Jacking the Vehicle

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle

Rear Bumper Valance Panel Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5N.m (22 lb in)

Rear Bumper Valance Panel
Procedure

Preliminary Procedures

Using a trim type tool, release the center upper retainer and remove.
Lower the vehicle. Lifting and Jacking the Vehicle
