Rear Bumper Step Pad Replacement (Outer)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

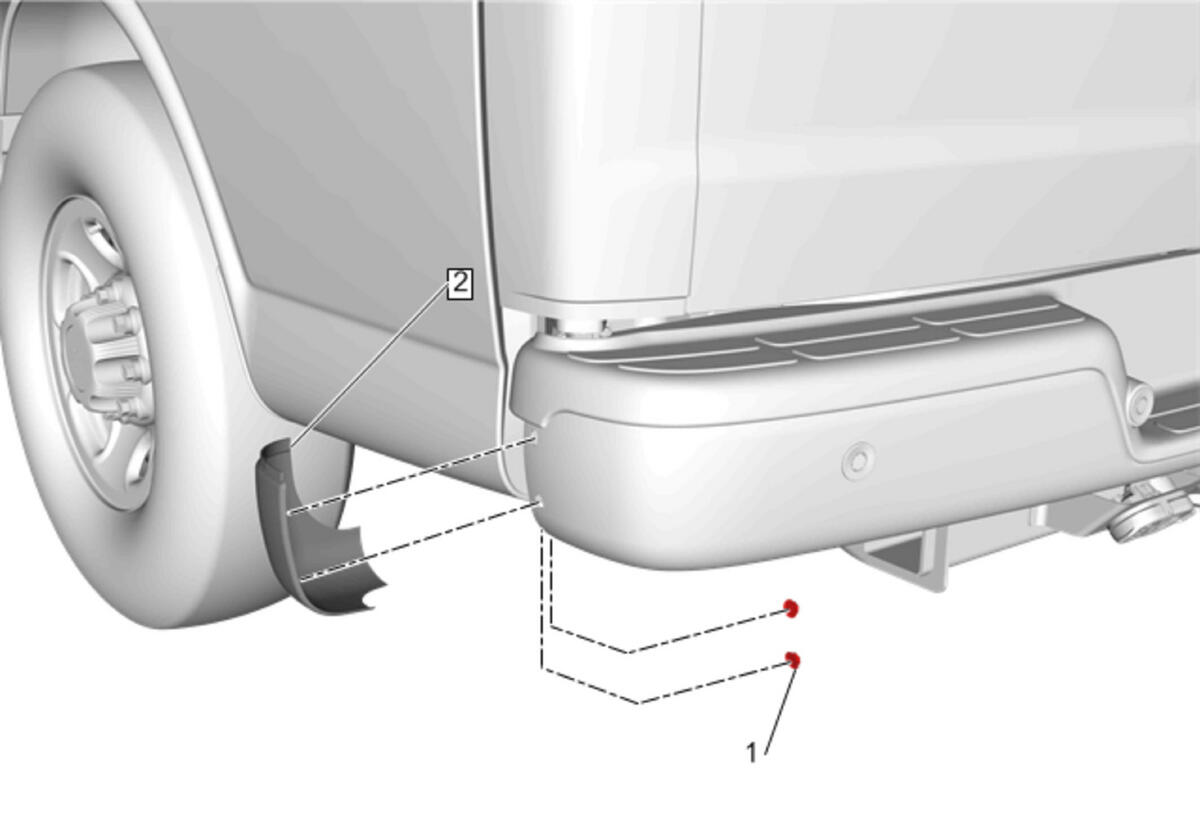

| Callout | Component Name |
|---|---|
| 1 | Rear Bumper Fascia Step Pad Nut [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2N.m (18 lb in) |
| 2 | Rear Bumper Step Pad |
