Front Bumper Impact Bar Bracket Replacement (To Impact Bar)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

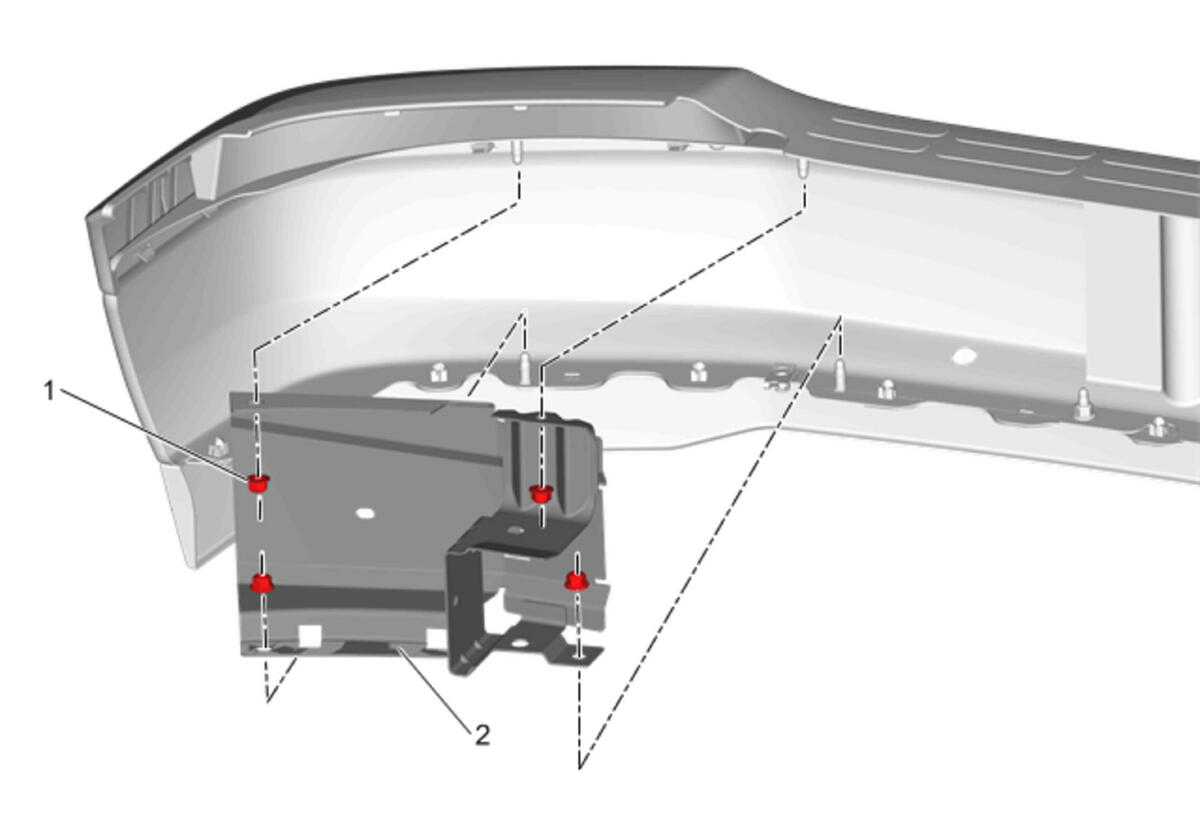

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Impact Bar Replacement |
|
| 1 | Front Bumper Impact Bar Bracket Nut [4x]
CAUTION:
Tighten 55N.m (41 lb ft) |
| 2 | Front Bumper Impact Bar Bracket |
