Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Install the J-21366 converter holding strap onto the transmission bell housing to retain the torque converter.
Support the transmission with a transmission jack.
Raise the transmission into place while simultaneously installing the fluid indicator tube.
Remove the J-21366 converter holding strap from the transmission.
Slide the transmission straight onto the locating pins while lining up the marks on the flywheel and the torque converter.
The torque converter must rotate freely by hand.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

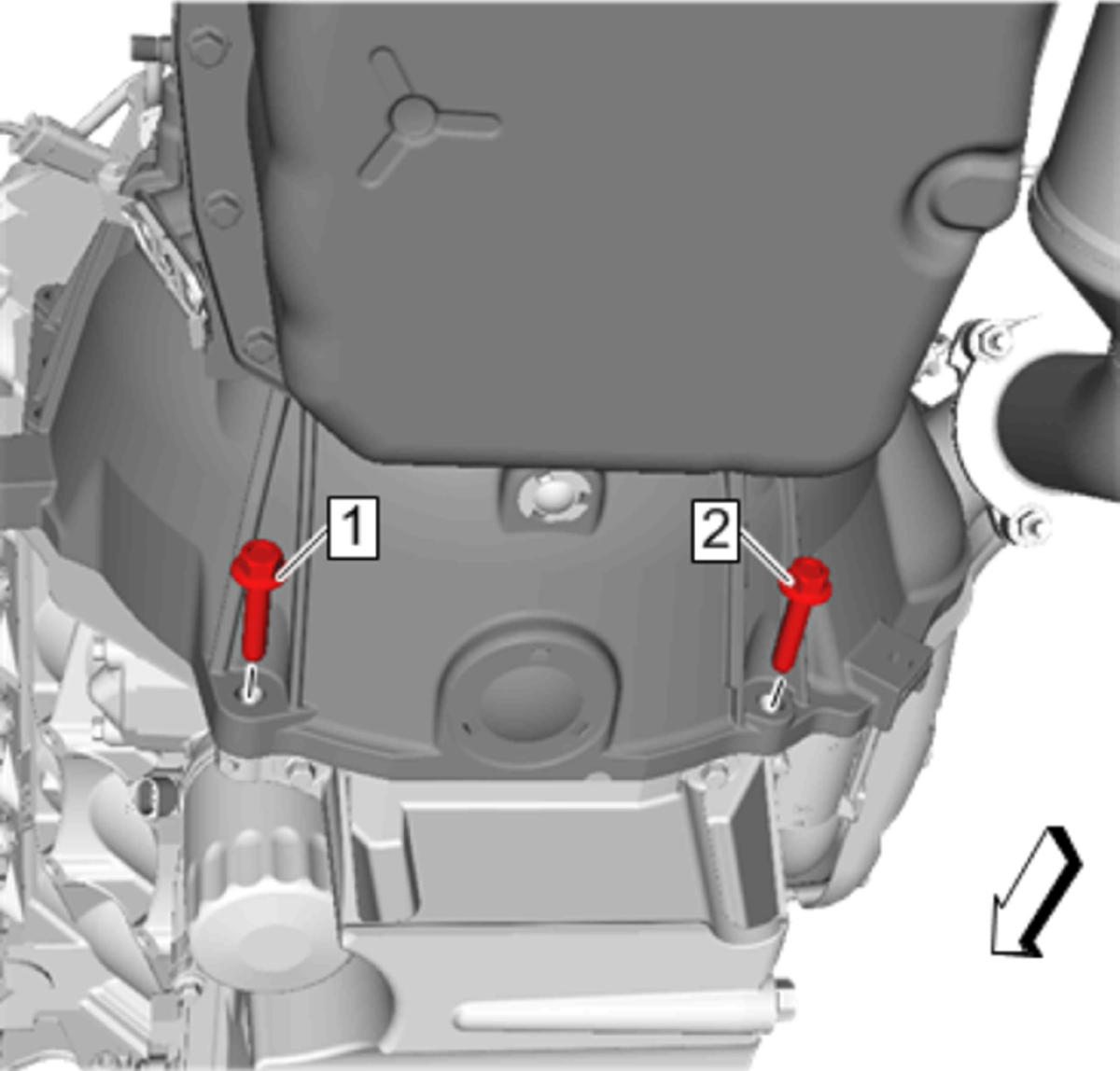

Install the bolts (1, 2) securing the transmission to the engine and tighten to 58 N.m (43 lb ft).
Connect the transmission vent hose.
Install the wire harness to the transmission.

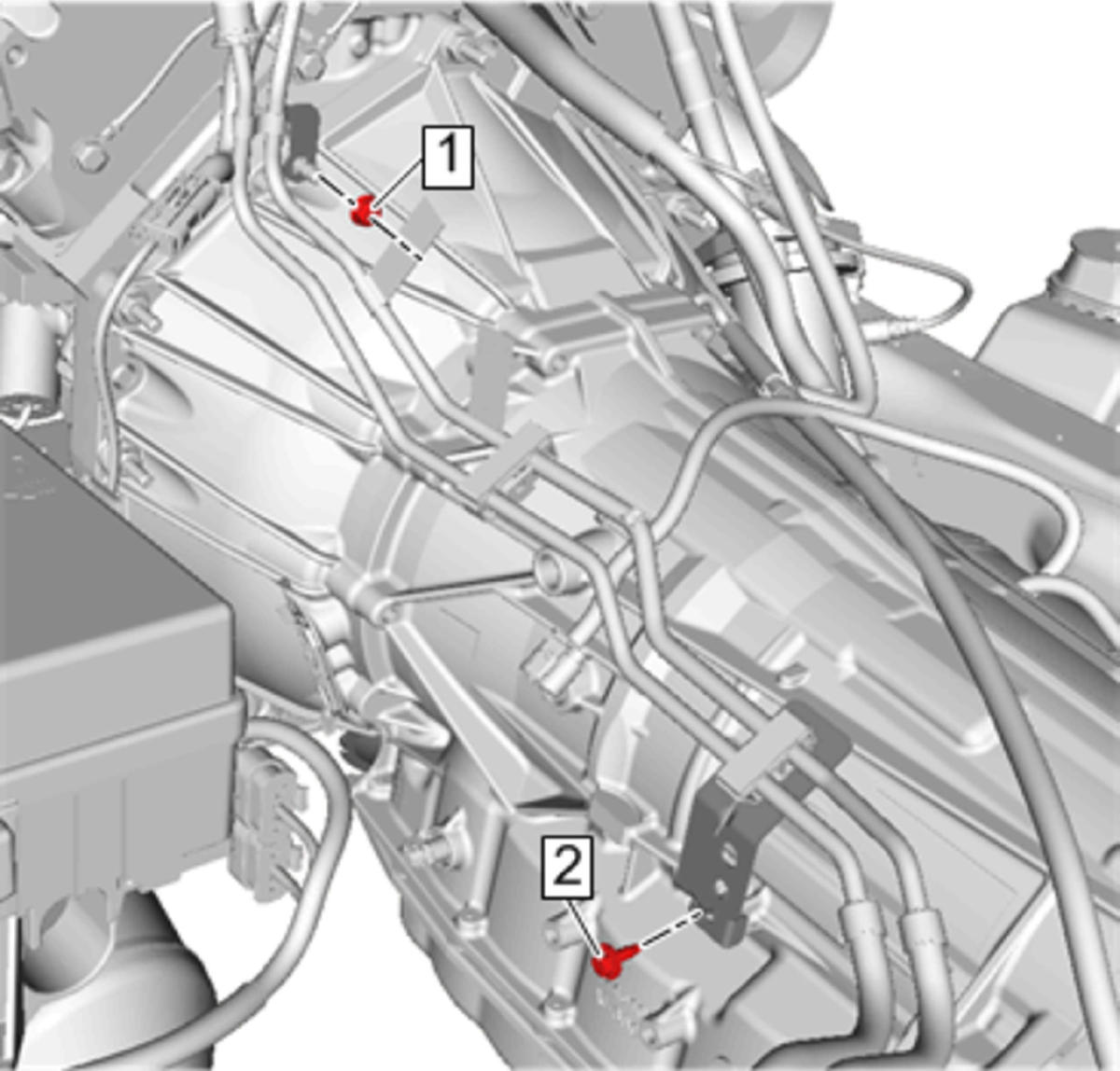

Connect the transmission electrical connectors and wiring harness retainers to the transmission.

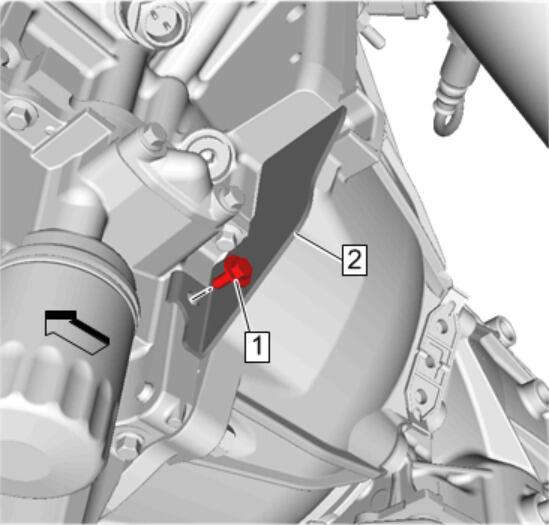

Install the transmission heat shield. Transmission Heat Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

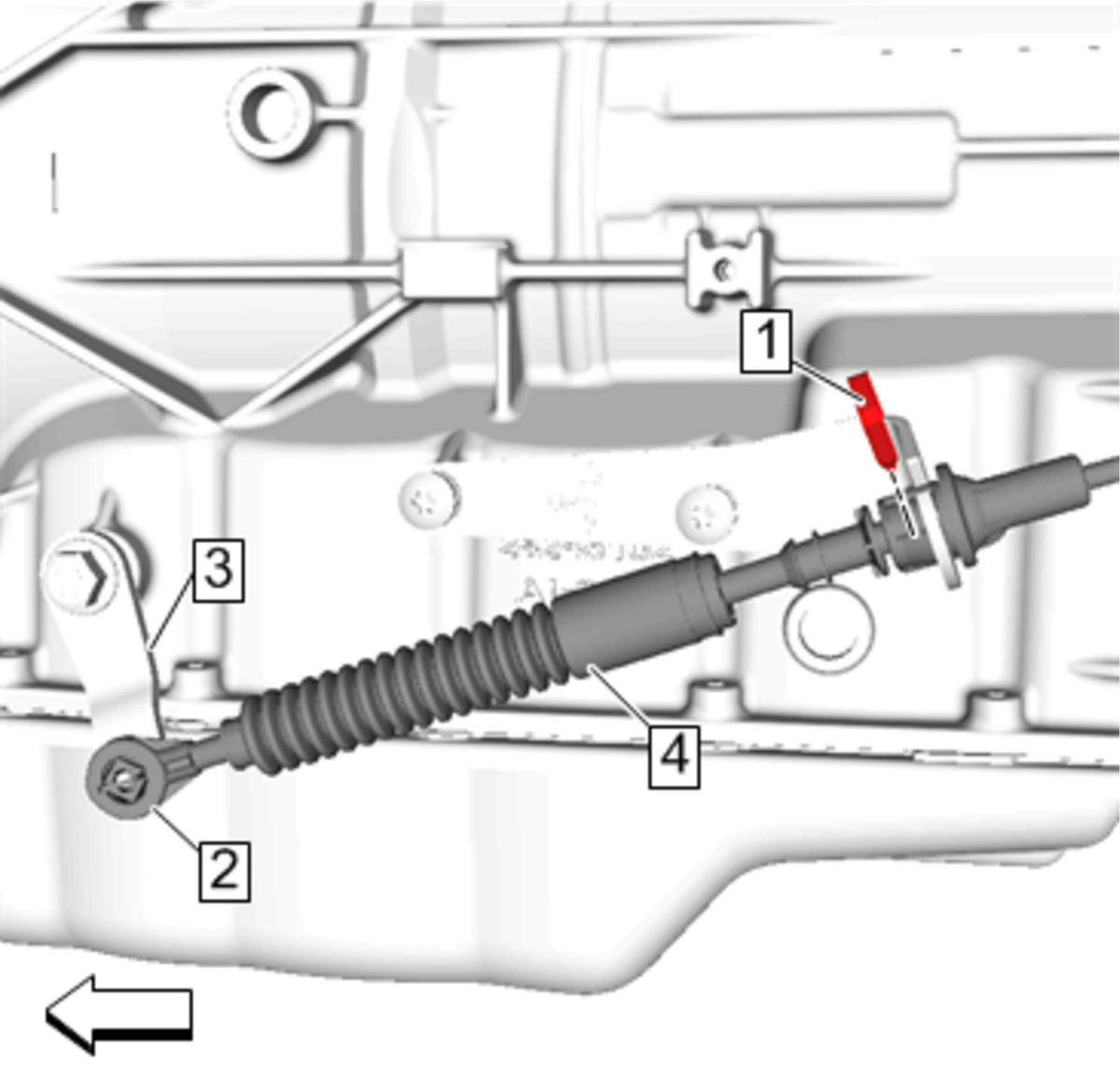

Install the range selector cable retaining clip (1) to the transmission range selector cable.
Courtesy of GENERAL MOTORS COMPANY

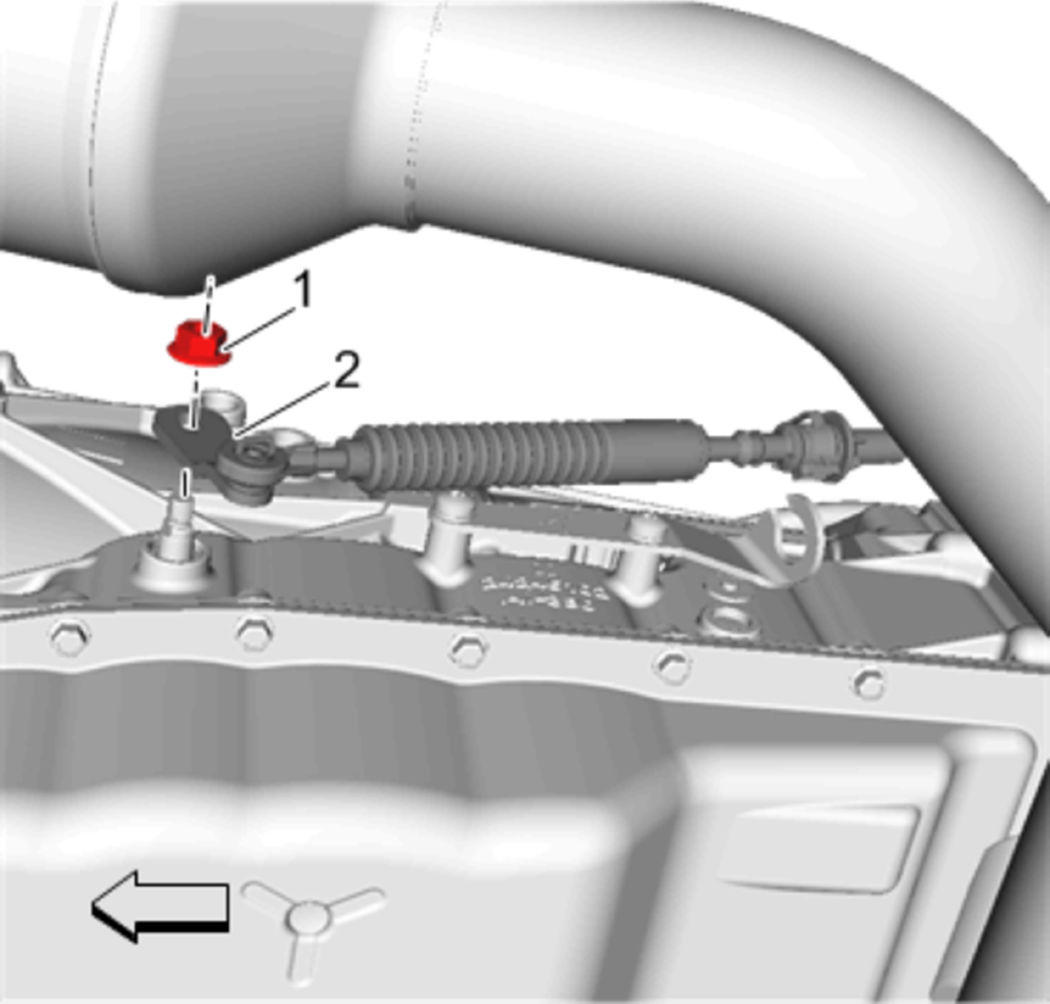

Install the range selector cable (2) and the range selector lever to the transmission. Automatic Transmission Range Selector Lever Replacement
Courtesy of GENERAL MOTORS COMPANY

If reusing the torque converter bolts, clean the bolt threads and apply threadlocker to the threads prior to installation. Adhesives, Fluids, Lubricants, and Sealers

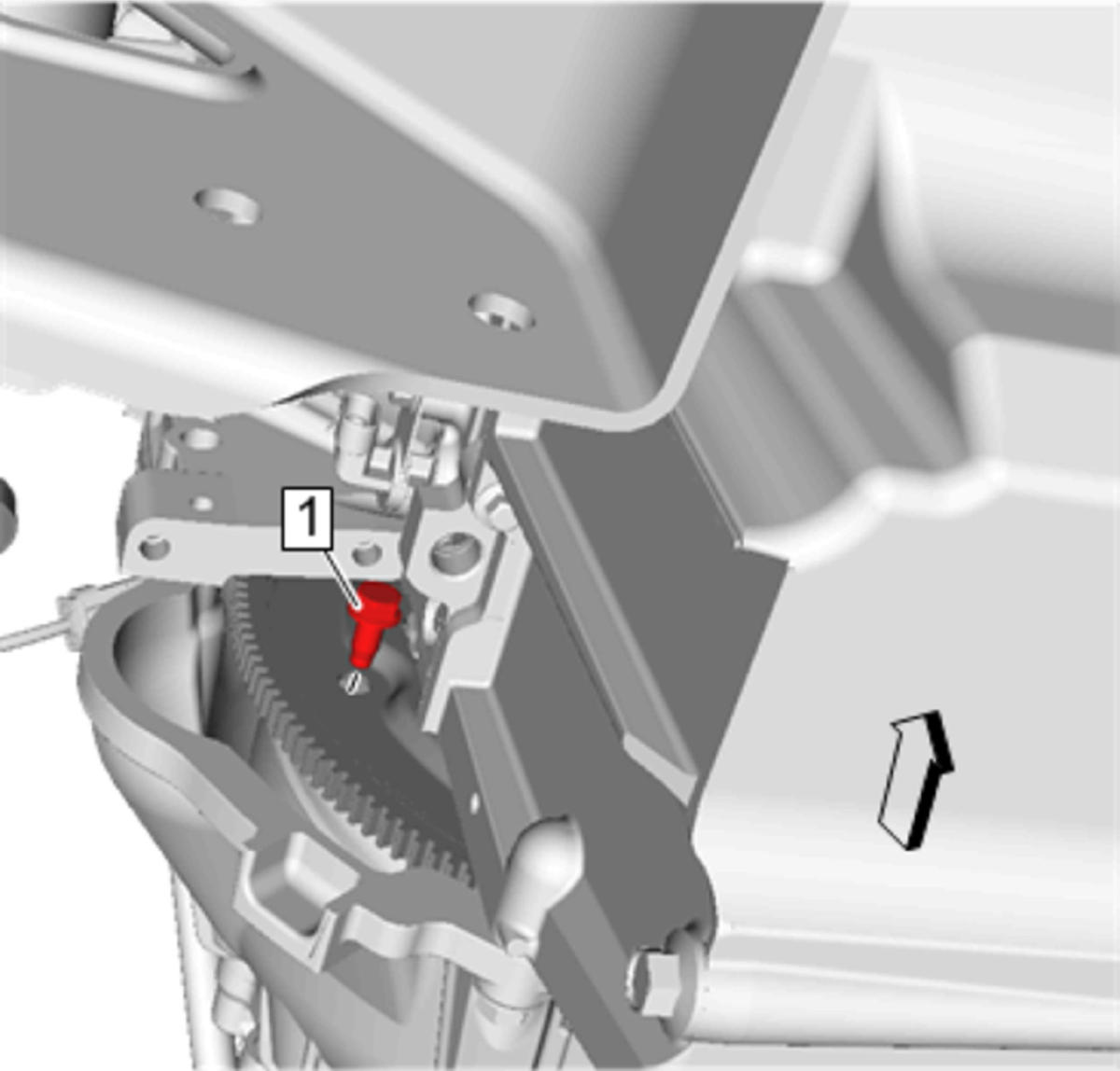

Install the flywheel to torque converter bolts and tighten to 65 N.m (48 lb ft).
Courtesy of GENERAL MOTORS COMPANY

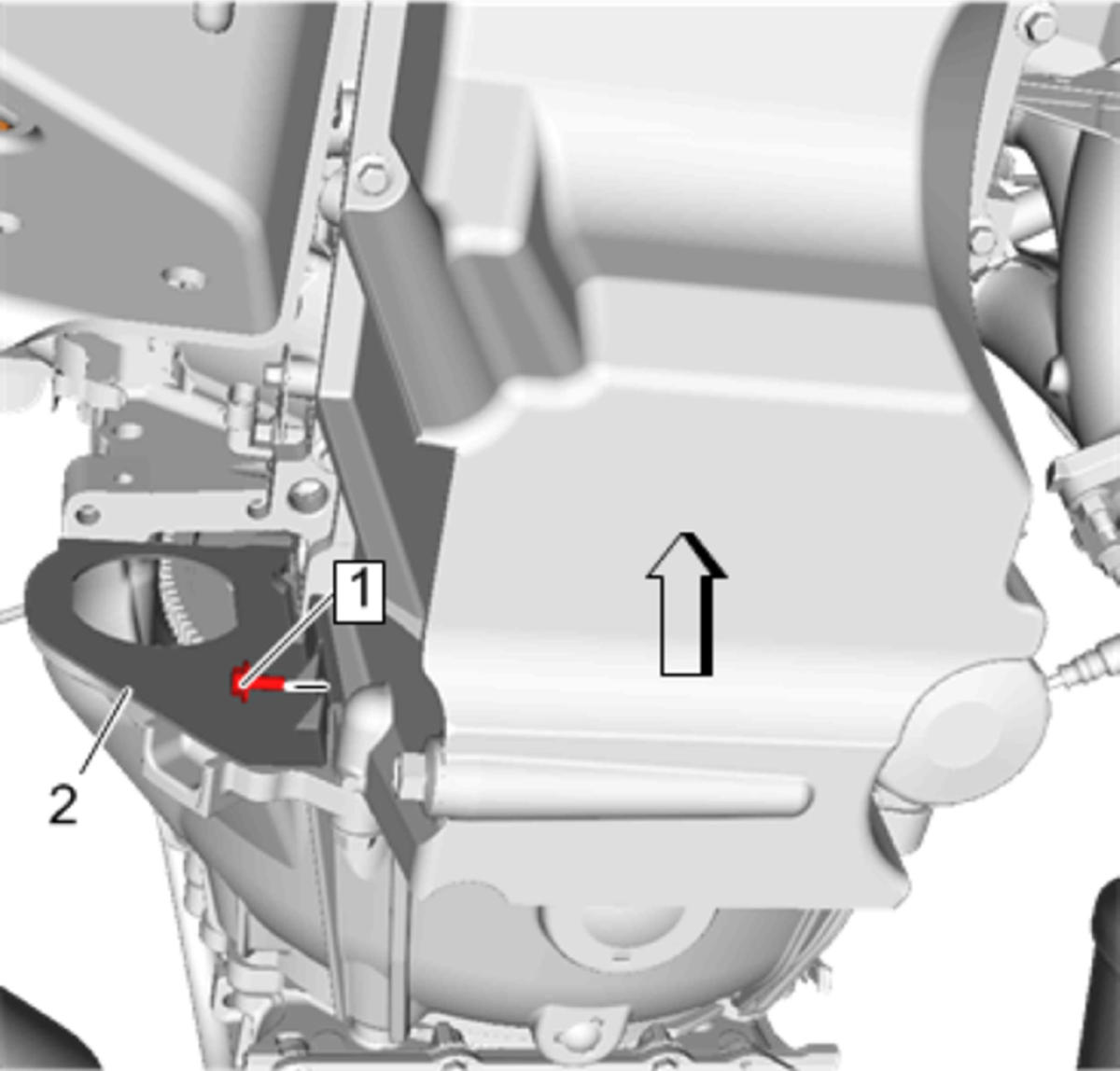

Install the right flywheel inspection cover. Transmission Converter Cover Replacement (Right Side)
Courtesy of GENERAL MOTORS COMPANY

Install the left flywheel inspection cover. Transmission Converter Cover Replacement (Left Side)
Courtesy of GENERAL MOTORS COMPANY

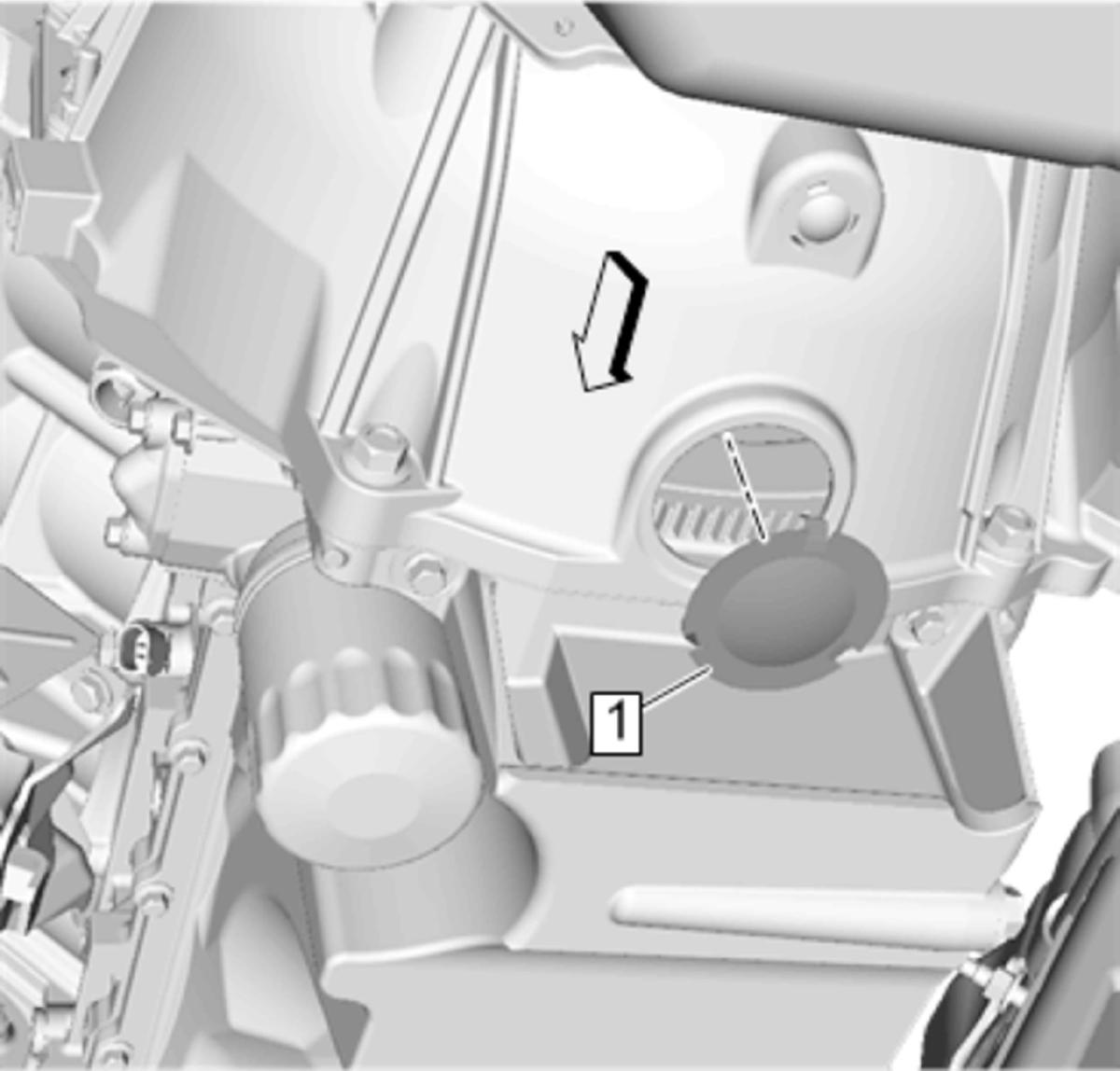

Install the torque converter access plug (1).
Install the catalytic converter pipe. Catalytic Converter Replacement (LWN) , or Catalytic Converter Replacement (L96, LC8)
Install the transmission mount. Transmission Mount Replacement
Remove the transmission jack.
Install the rear propeller shaft. Propeller Shaft Replacement (With MYD) .
Connect the oil cooler lines to the transmission. Transmission Fluid Cooler Hose/Pipe Replacement (MYD)
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

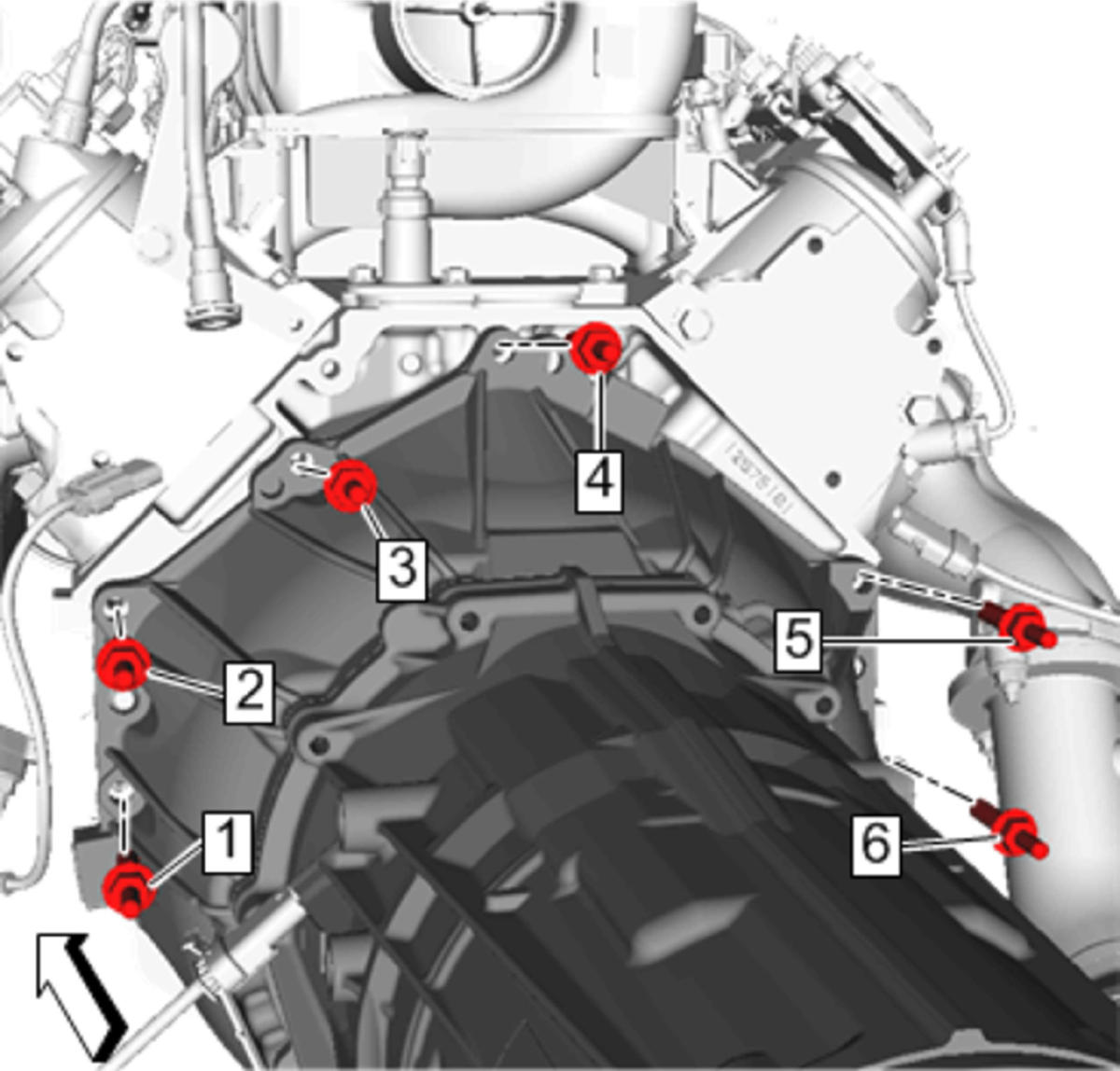

Install the bolts (1, 2 3, 4, 5, 6) securing the transmission to the engine and tighten to 58 N.m (43 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Install the bolt (2) and nut (1) that secures the fuel line bracket to the left side of the transmission and tighten to 7 N.m (62 lb in).
Install the nut (1) that secures the fuel line bracket to the left side of the transmission and tighten to 25 N.m (18 lb ft)
Install the engine cover. Engine Cover Replacement
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery) .
Check the transmission fluid level and fill if necessary. Transmission Fluid Level and Condition Check
If a NEW TCM has been installed into the vehicle, the NEW module needs to be reprogrammed. Service Programming System (SPS)
Perform the Reset Transmission Adapts. Refer to Reset Transmission Adapts .
