Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4826303Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate(1) - Remove - Instrument Panel Cluster Trim Plate Replacement

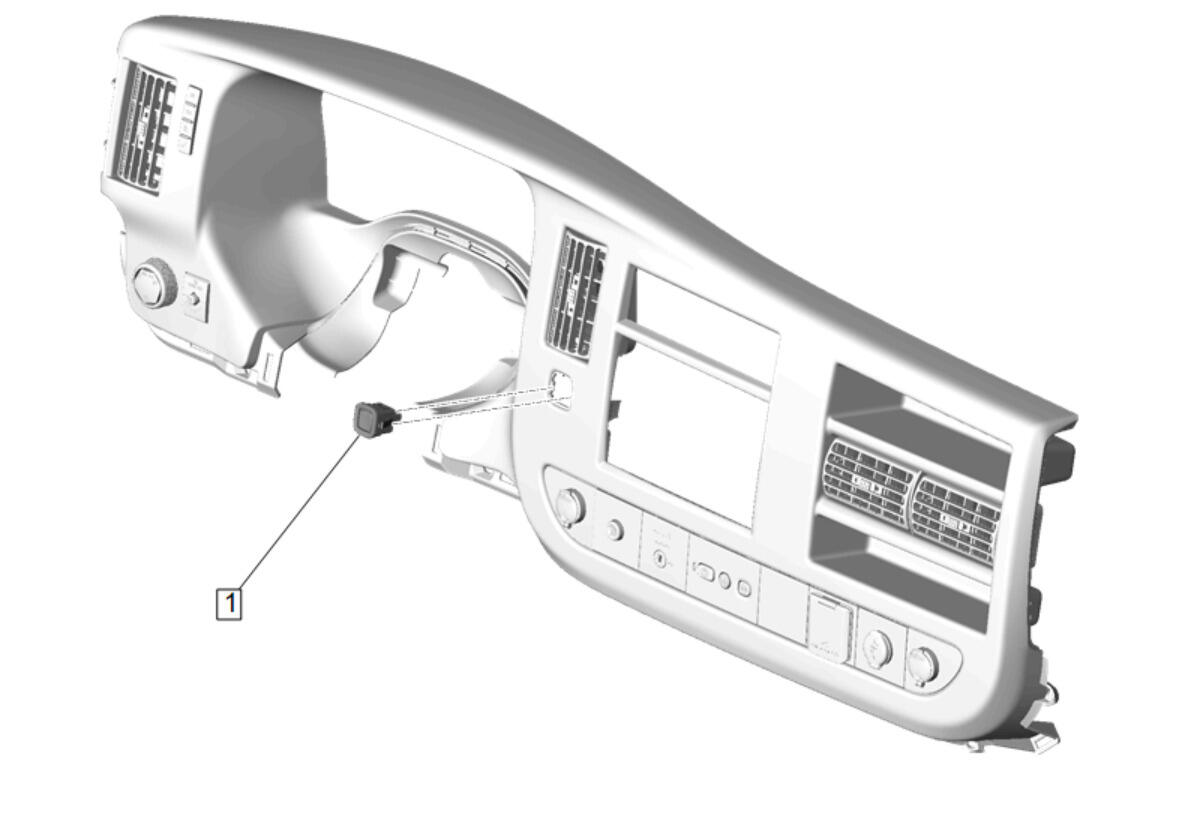

  2. GM5214865Courtesy of GENERAL MOTORS COMPANY

    Squeeze the retaining tabs on the back of the automatic transmission tow/haul switch (1) and push the switch out of the instrument panel cluster trim plate.
