Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Install the shift cable to the vehicle.
- Raise the vehicle.
Install the shift cable (2) to the shift lever (3).
- Install the locking clip (1) to the cable at the bracket.
- Lower the vehicle.

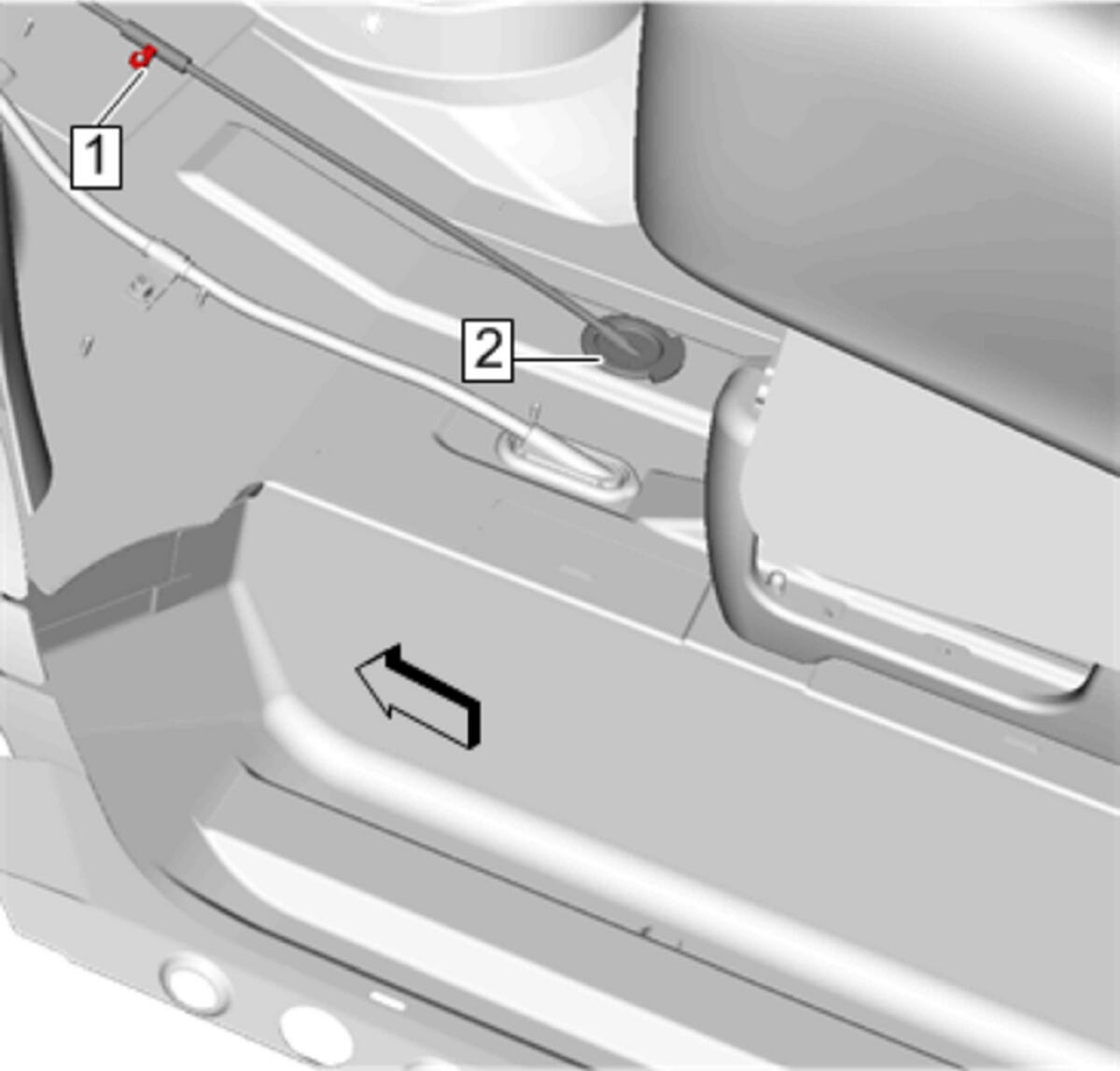

Install the rubber grommet (2) to the floor panel.
- Connect the retainer (1).
- Reposition the carpet and insulation to it's original position.
- Install the front side door step mat. Front Side Door Step Mat Replacement
- Install the body hinge pillar trim panel. Body Hinge Pillar Trim Panel Replacement
- NOTE:
Ensure the shift lever is in the Park position.
Secure the shift cable (3) to the steering column bracket.
- Install the shift cable (1) to the steering column shift control (2).
- Adjust the shift cable. Range Selector Lever Cable Adjustment
- Install the instrument knee bolster bracket. Instrument Panel Knee Bolster Bracket Replacement (Left Side) , or Instrument Panel Knee Bolster Bracket Replacement (Right Side)
- Release the parking brake.
NOTE:
Prior to installing the shift cable to the vehicle, ensure that the column shift lever and the transmission control lever are in the mechanical park position. The transmission control lever can be positioned to mechanical park by rotating the control lever clockwise until it reaches its full clockwise position.
