Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the park brake.
  2. Shift the transmission into neutral.
  3. Raise and suitably support the vehicle. Lifting and Jacking the Vehicle
  4. Remove the cable to the bracket. Range Selector Lever Cable Replacement

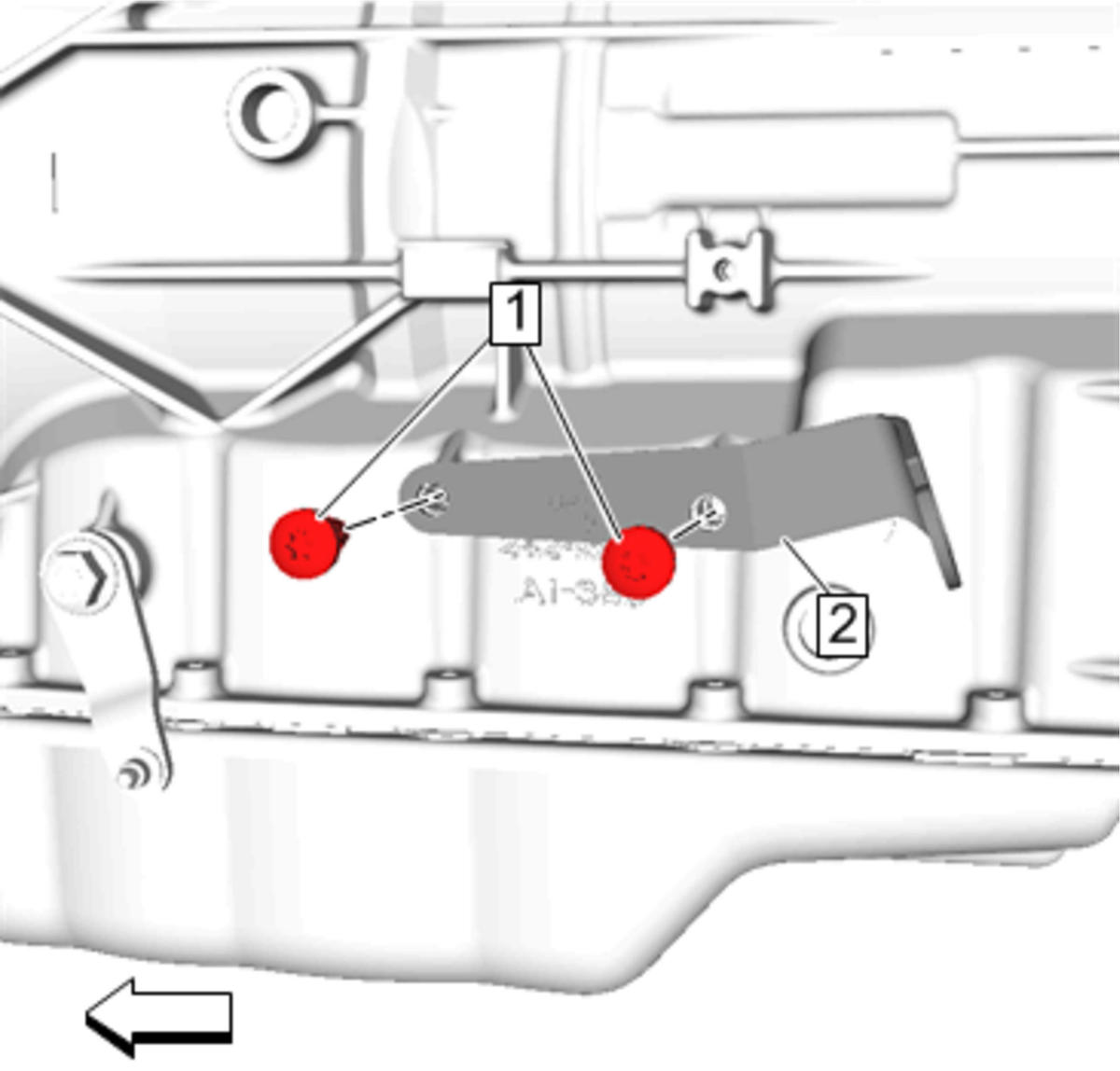

  5. GM4842586Courtesy of GENERAL MOTORS COMPANY

    Remove the bolts (1) securing the transmission range selector cable bracket (2) to the transmission.

  6. Remove the transmission range selector cable bracket.
