Case Extension and Gasket Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
GM2610852Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the propeller shaft. Refer to Fastener Caution .
  2. Remove the transmission mount. Refer to Transmission Mount Replacement .
1 Extension Case Fastener (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Tighten
55 N.m (41 lb ft)
2 Extension Case
Procedure
Remove or replace the O-ring, if necessary.

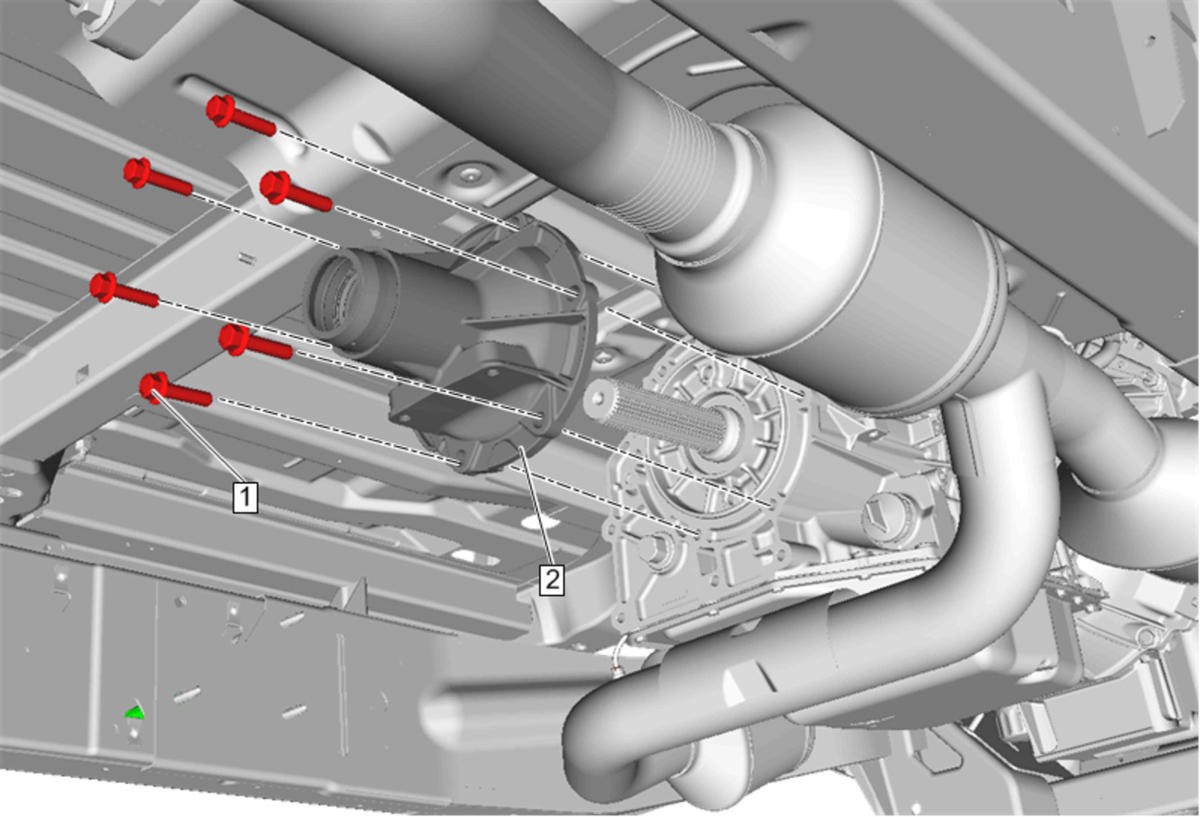

GM4843241Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the propeller shaft. Propeller Shaft Replacement (With MYD) .
  3. Support the transmission with a suitable jack.
  4. Remove the transmission mount assembly. Transmission Mount Replacement
1 Case Extension Housing Bolt [6x]
CAUTION:

Refer to Fastener Caution .


Tighten
55 N.m (41 lb ft)
2 Case Extension Housing Assembly
