Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

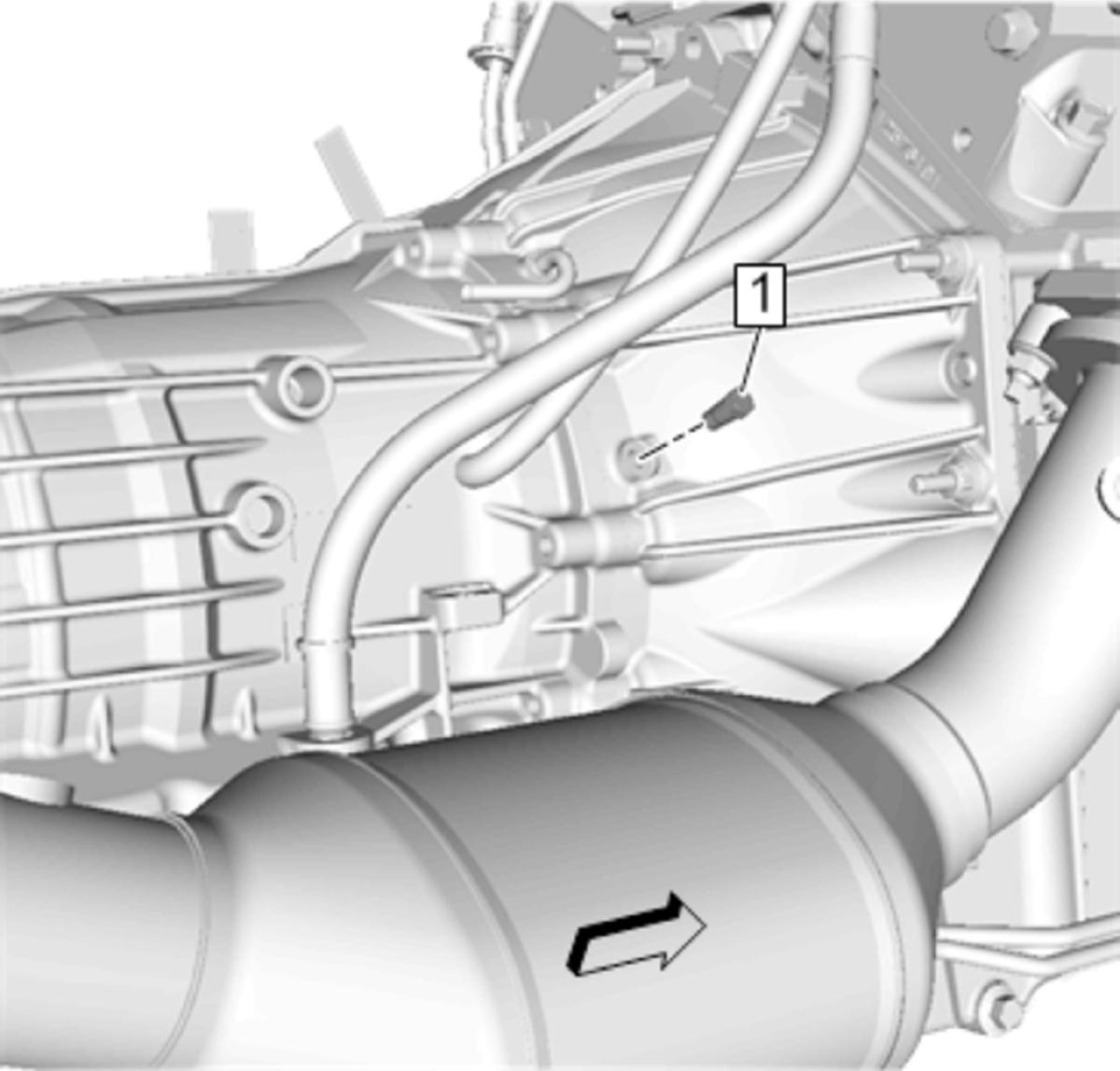

  2. GM4842671Courtesy of GENERAL MOTORS COMPANY

    Clean the surrounding area of the oil pressure test plug.

  3. Remove the oil pressure test plug.
