Water-in-Fuel Draining

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Attach a small piece of hose to the fuel filter drain plug.
  3. Place an approved fuel-resistant container under the fuel filter.

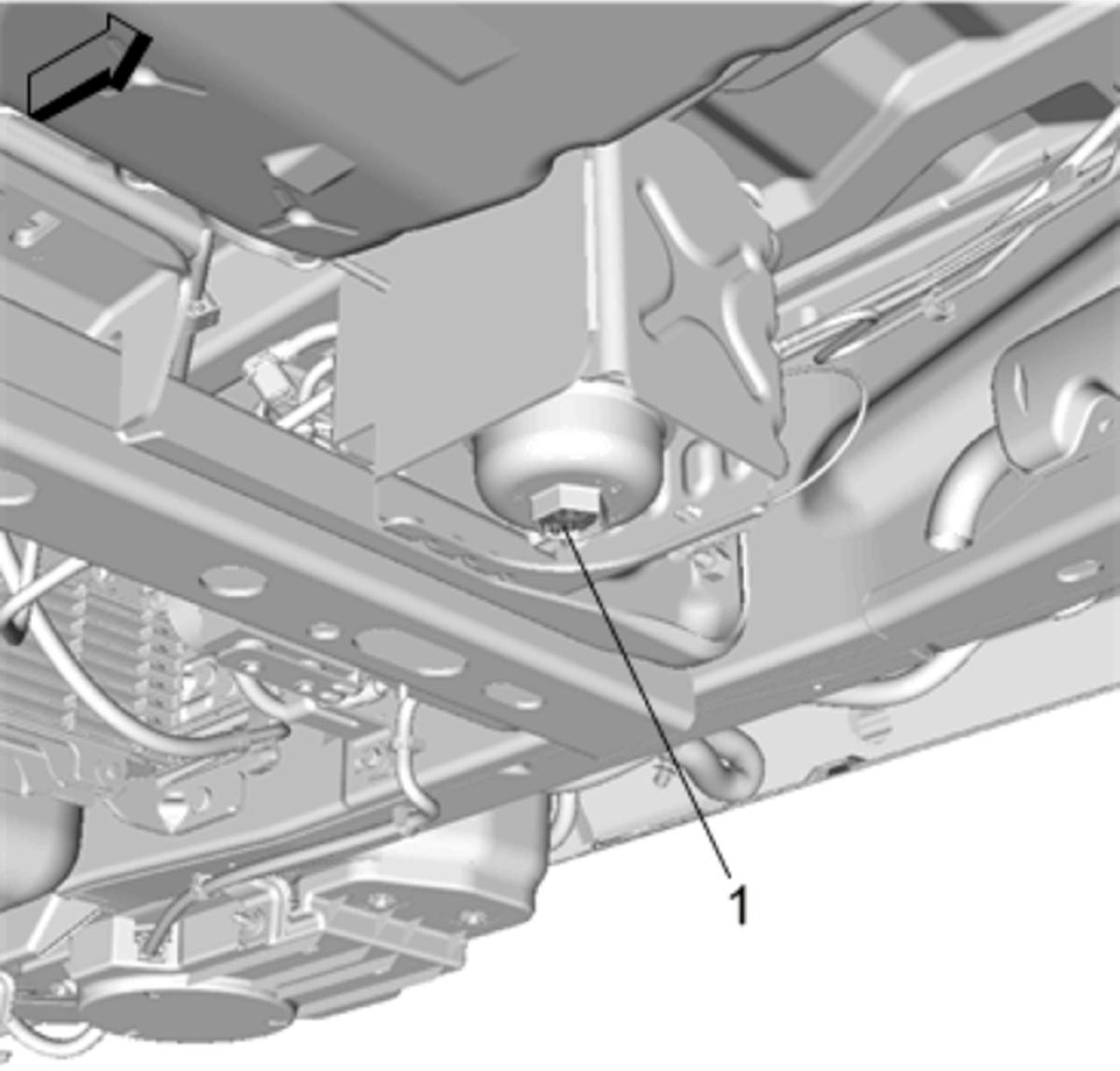

  4. GM4607086Courtesy of GENERAL MOTORS COMPANY

    Open the fuel filter drain plug (1) until the water contaminated fuel seeps from the fuel filter drain plug.

  5. Prime the fuel system until only diesel fuel is visible. Fuel System Priming
  6. Tighten the fuel filter drain plug.
  7. Remove the container and hose.
