Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

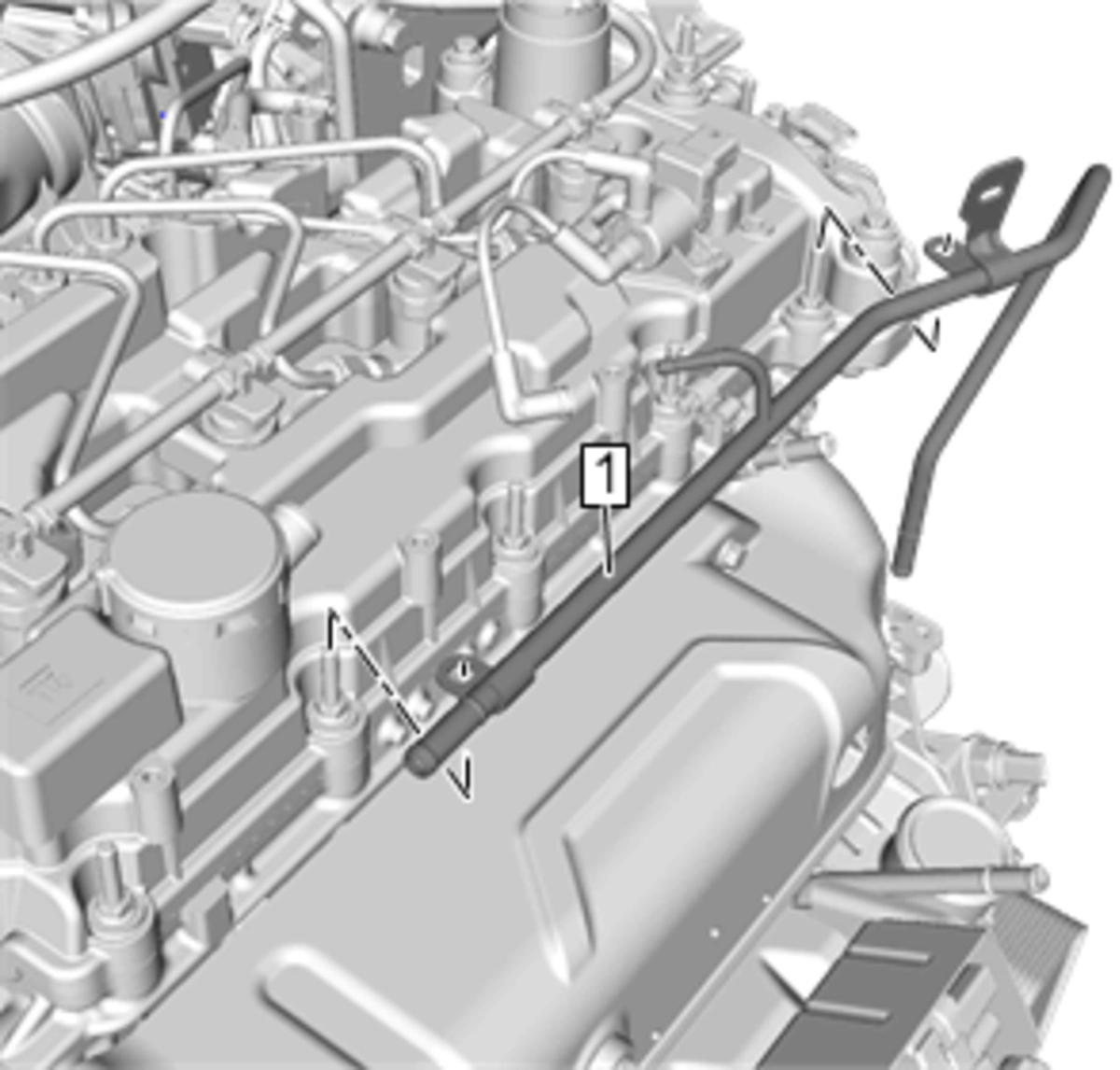

Vacuum Pump Pipe (1) - Install
Position the engine wiring harness at the top of the engine back to its original routing.
Courtesy of GENERAL MOTORS COMPANY

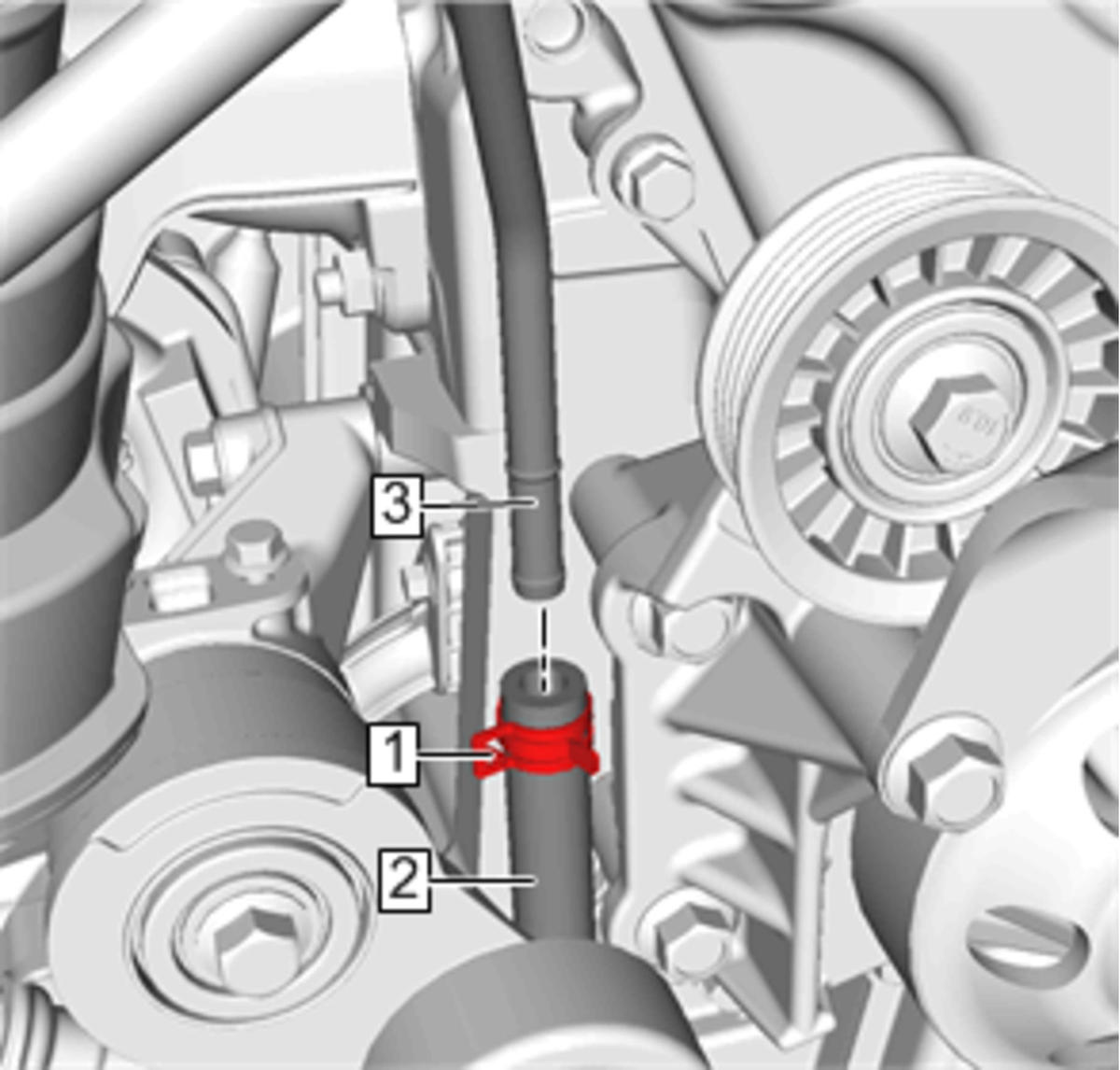

Heater and A/C Control Vacuum Source Hose (2) @ Vacuum Pump Pipe (3) - Connect
Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

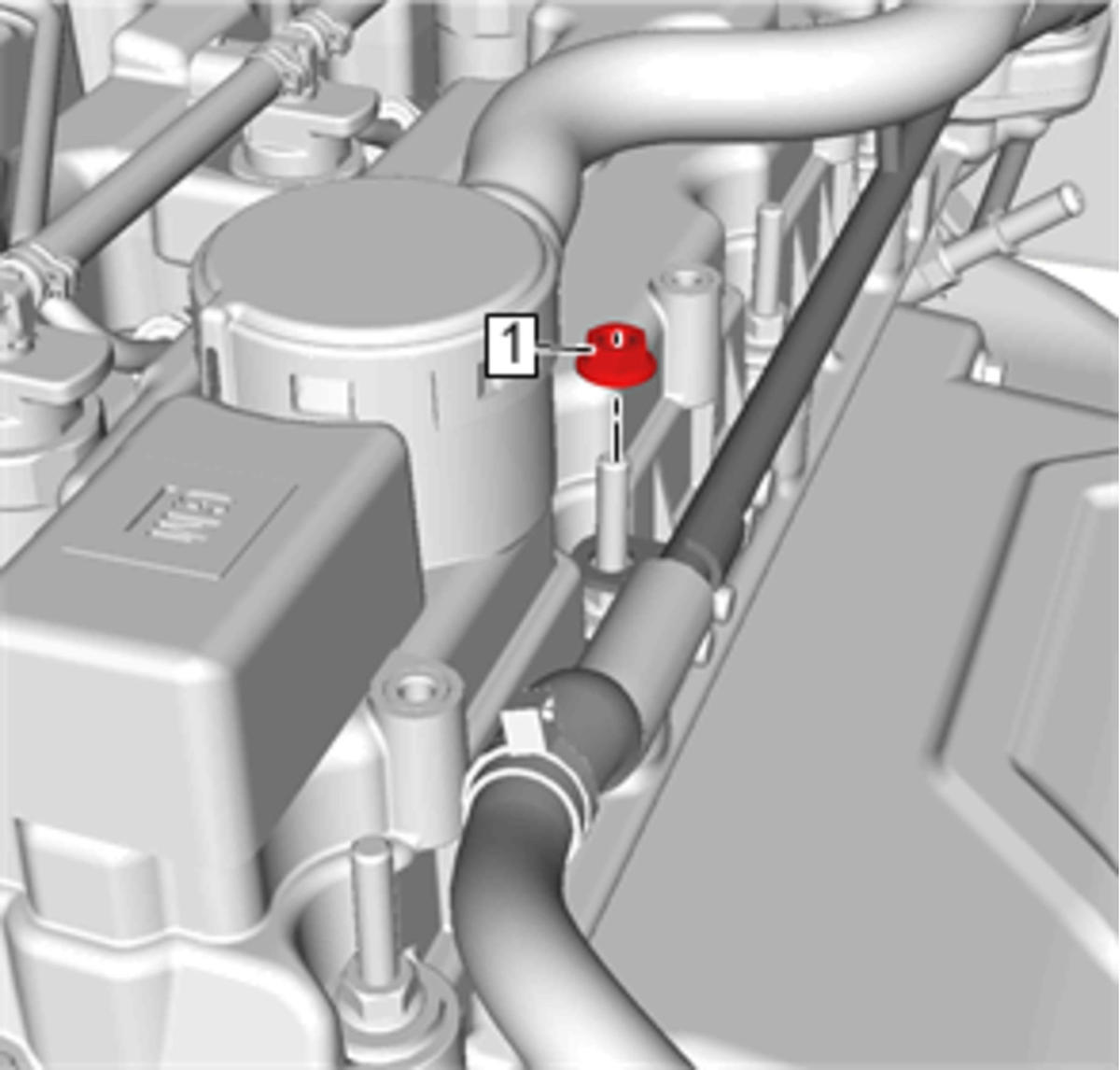

Exhaust Pressure Differential Sensor Nut (1) - Install and tighten 9 N.m (80 lb in)
Engine Cover - Install - Engine Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

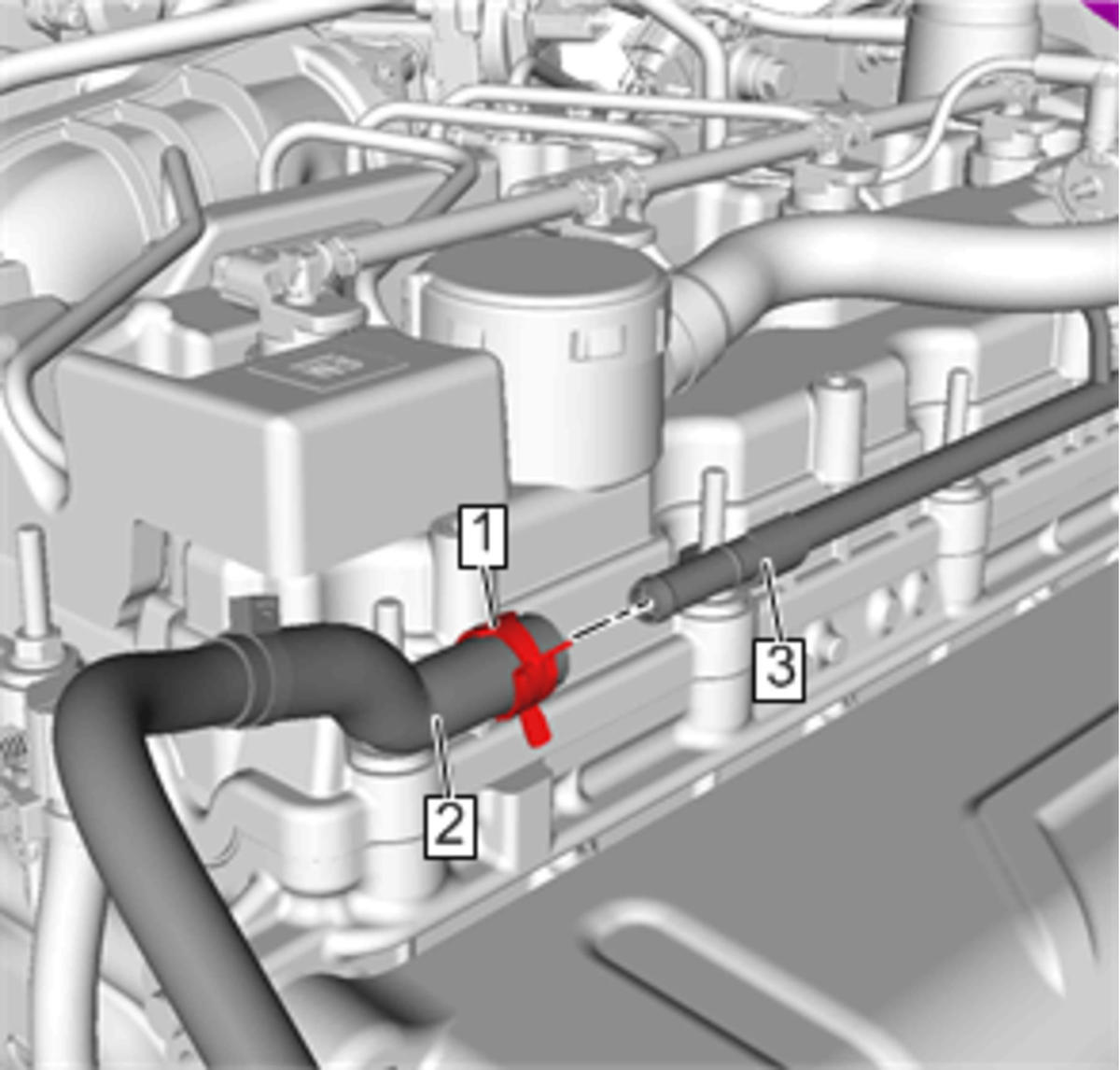

Vacuum Pump Hose (2) @ Vacuum Pump Pipe (3) - Connect
Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

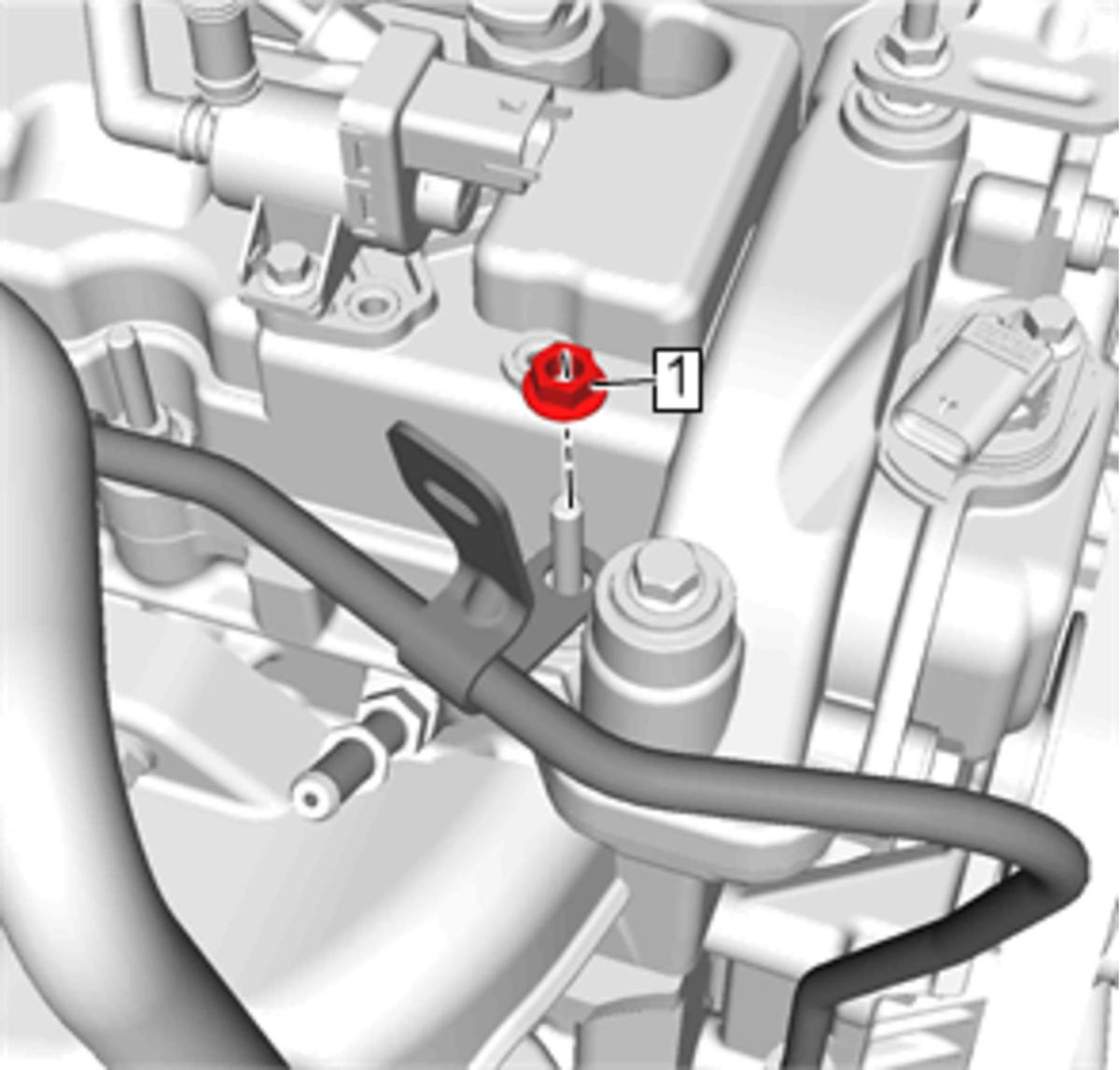

Exhaust Pressure Differential Sensor Nut (1) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

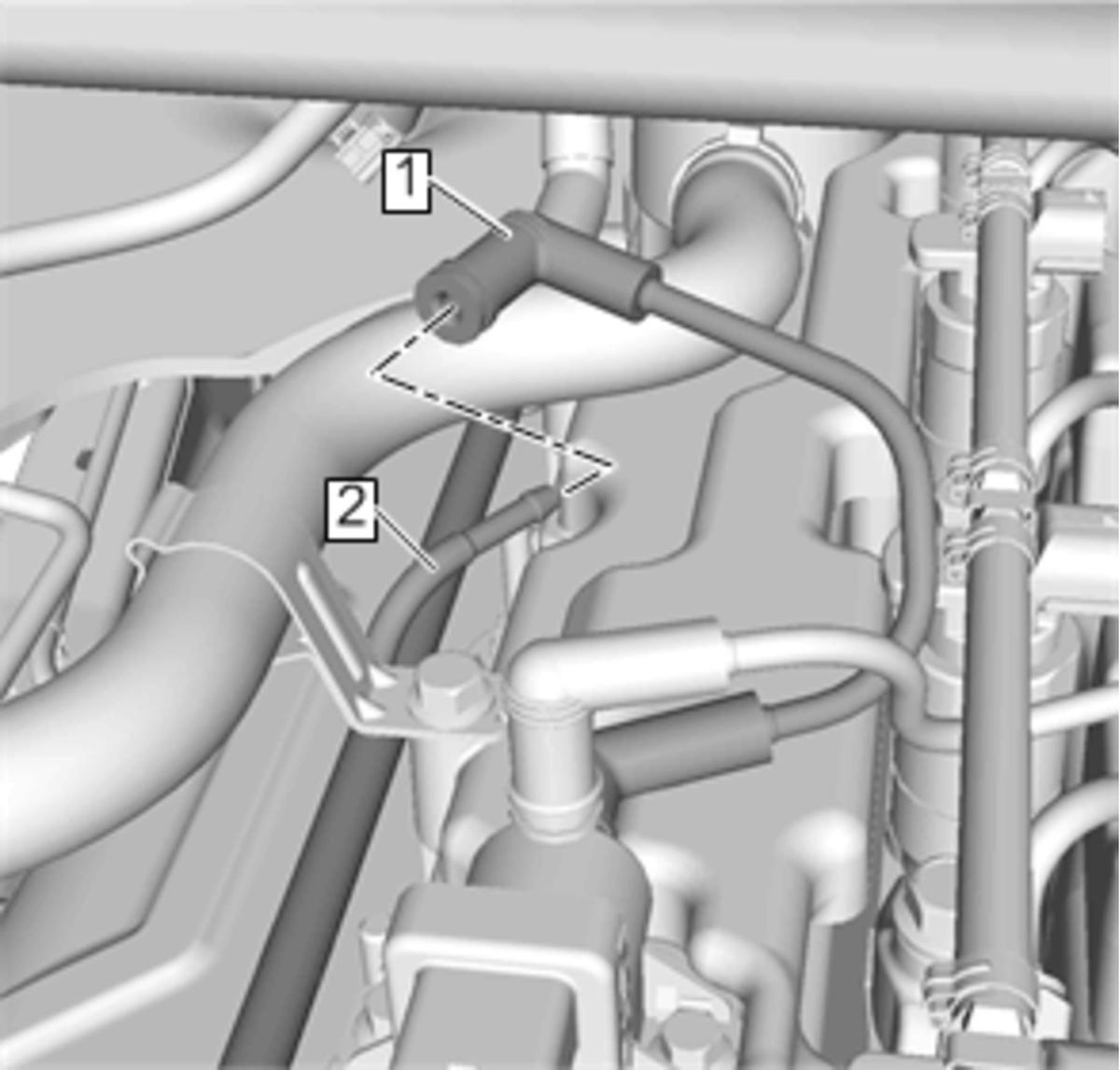

Exhaust Gas Recirculation Valve Vacuum Pipe (1) @ Vacuum Pump Pipe (2) - Connect
Courtesy of GENERAL MOTORS COMPANY

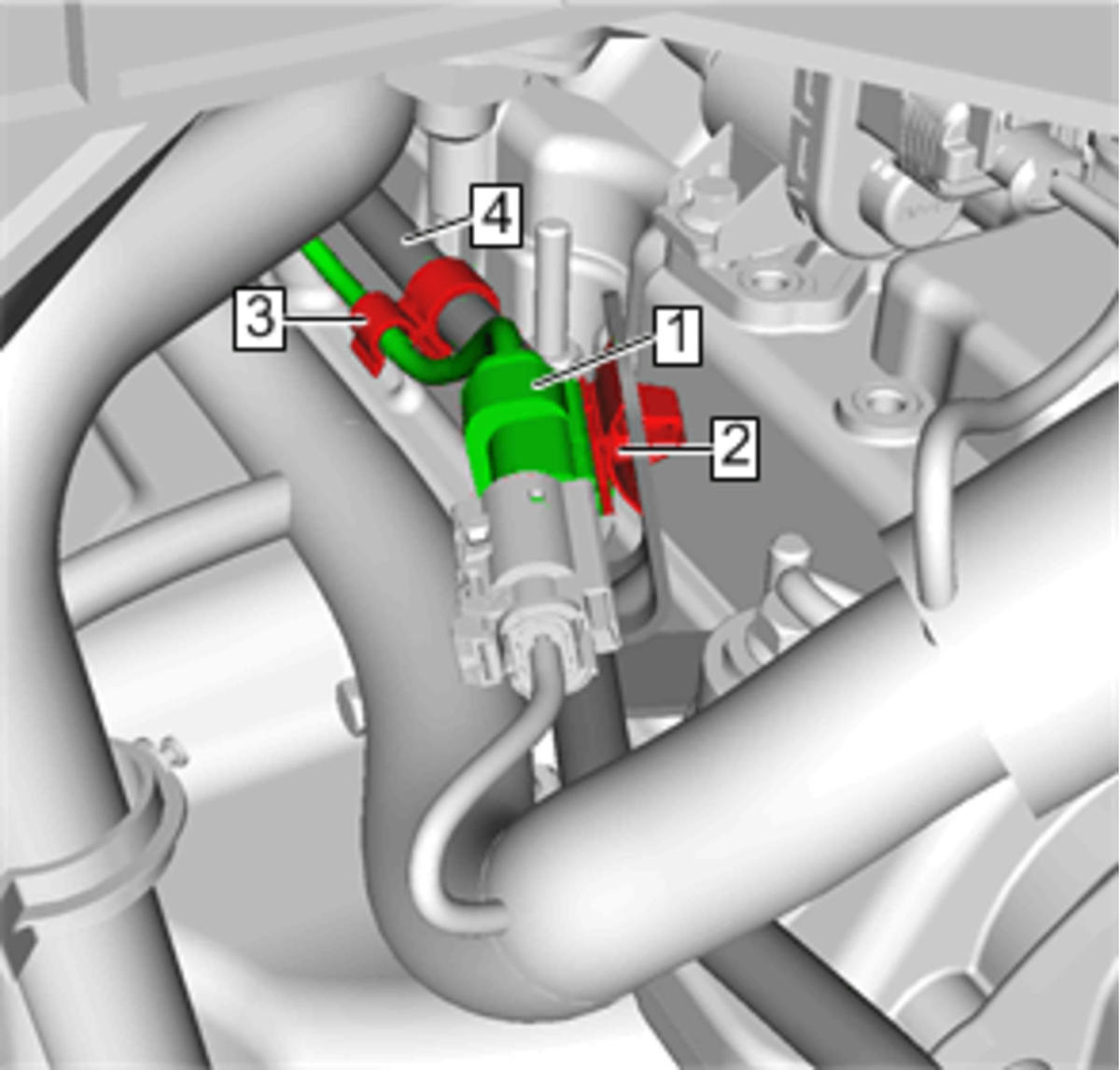

Retainer (3) @ Vacuum Pump Pipe (4) - Install
Electrical Connector (1) @ Retainer (2) - Install
Drive Belt Tensioner - Install - Drive Belt Tensioner Replacement
