Throttle Inlet Absolute Pressure Sensor Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

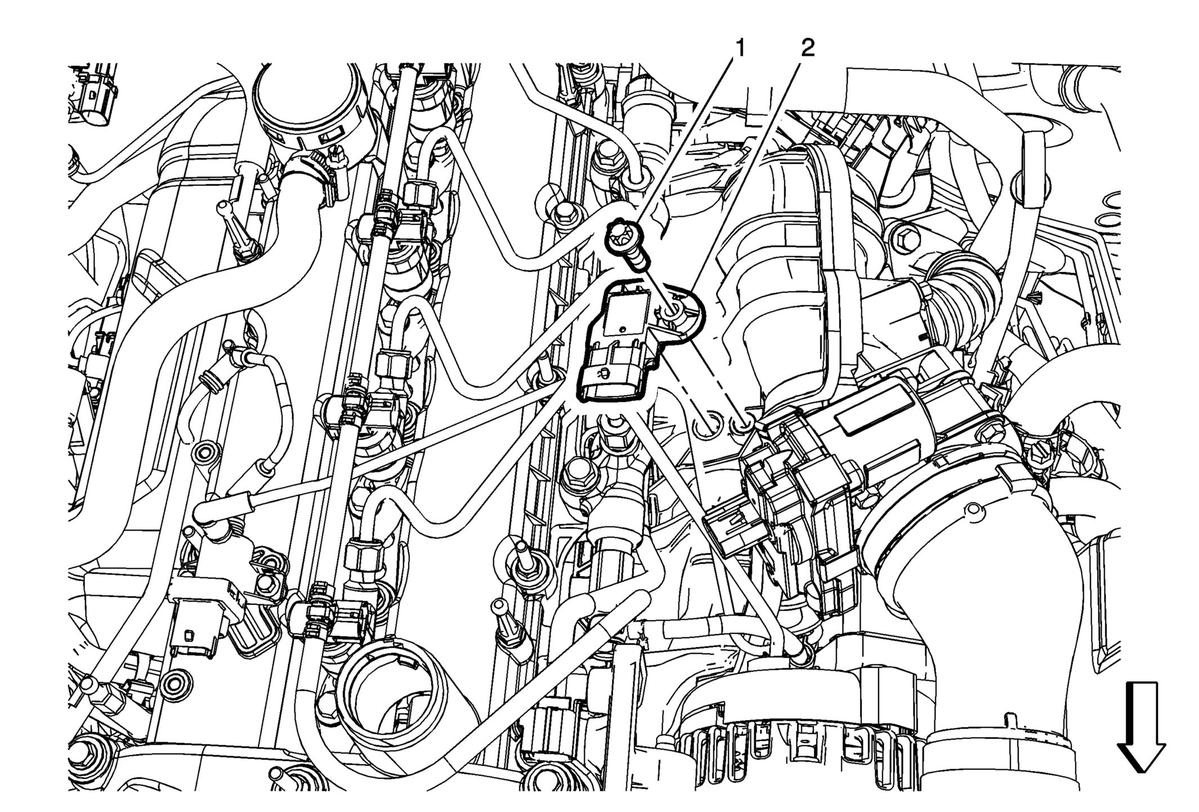

| Callout | Component Name |
|---|---|
| Preliminary Procedure Engine Cover Replacement |
|
| 1 | Throttle Inlet Absolute Pressure Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Throttle Inlet Absolute Pressure Sensor Procedure Disconnect the electrical connector.
NOTE:
Always install the NEW seal that is supplied with the sensor. If reinstalling the sensor, inspect and replace the sensor seal as needed. |
