Low Pressure Diesel Hydrocarbon Injector Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

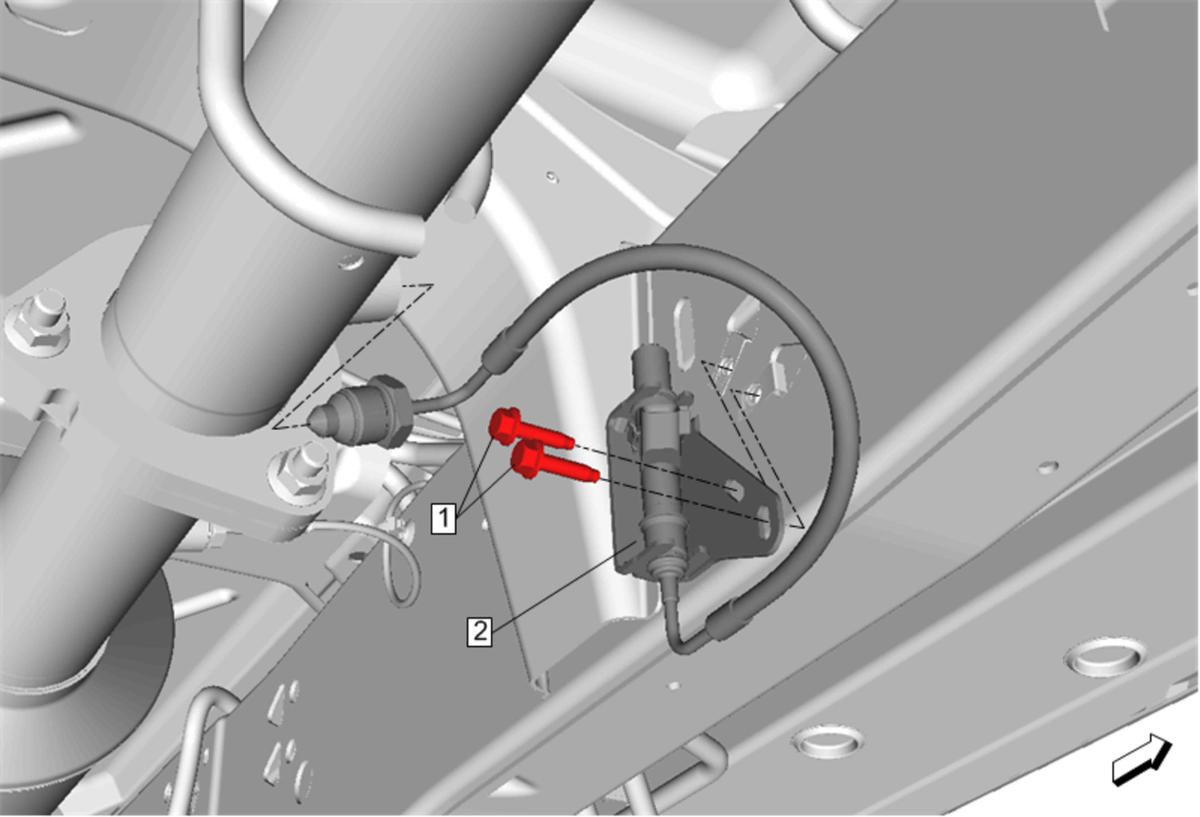

Callout	Component Name
Preliminary Procedures Fuel Feed Hydrocarbon Injection Front Pipe @ Low Pressure Diesel Hydrocarbon Injector - Disconnect - Fuel Feed Hydrocarbon Injection Front Pipe Replacement Disconnect the electrical connector.
1	Low Pressure Diesel Hydrocarbon Injector Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Low Pressure Diesel Hydrocarbon Injector CAUTION: Refer to Component Fastener Tightening Caution . Tighten 45 N.m (33 lb ft)

Callout

Component Name

Preliminary Procedures

Fuel Feed Hydrocarbon Injection Front Pipe @ Low Pressure Diesel Hydrocarbon Injector - Disconnect - Fuel Feed Hydrocarbon Injection Front Pipe Replacement
Disconnect the electrical connector.

Low Pressure Diesel Hydrocarbon Injector Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Low Pressure Diesel Hydrocarbon Injector

CAUTION:

Refer to Component Fastener Tightening Caution .

Tighten
45 N.m (33 lb ft)
