Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

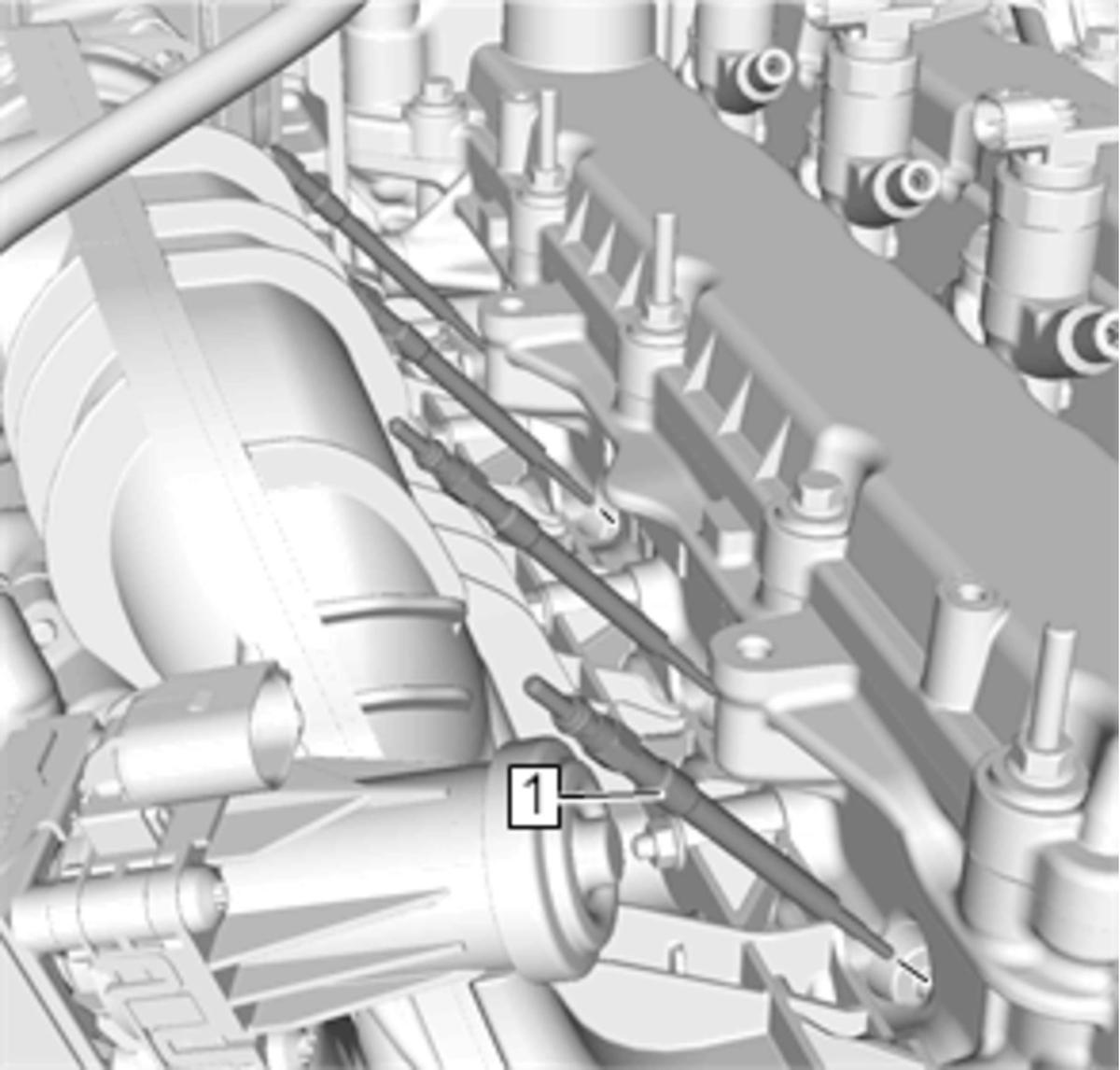

  1. GM4639258Courtesy of GENERAL MOTORS COMPANY

    Hand start the glow plugs (1) into the cylinder head. [4x]

      CAUTION:

      Refer to Component Fastener Tightening Caution .

    2. Tighten the glow plugs to 11N.m (97 lb in).

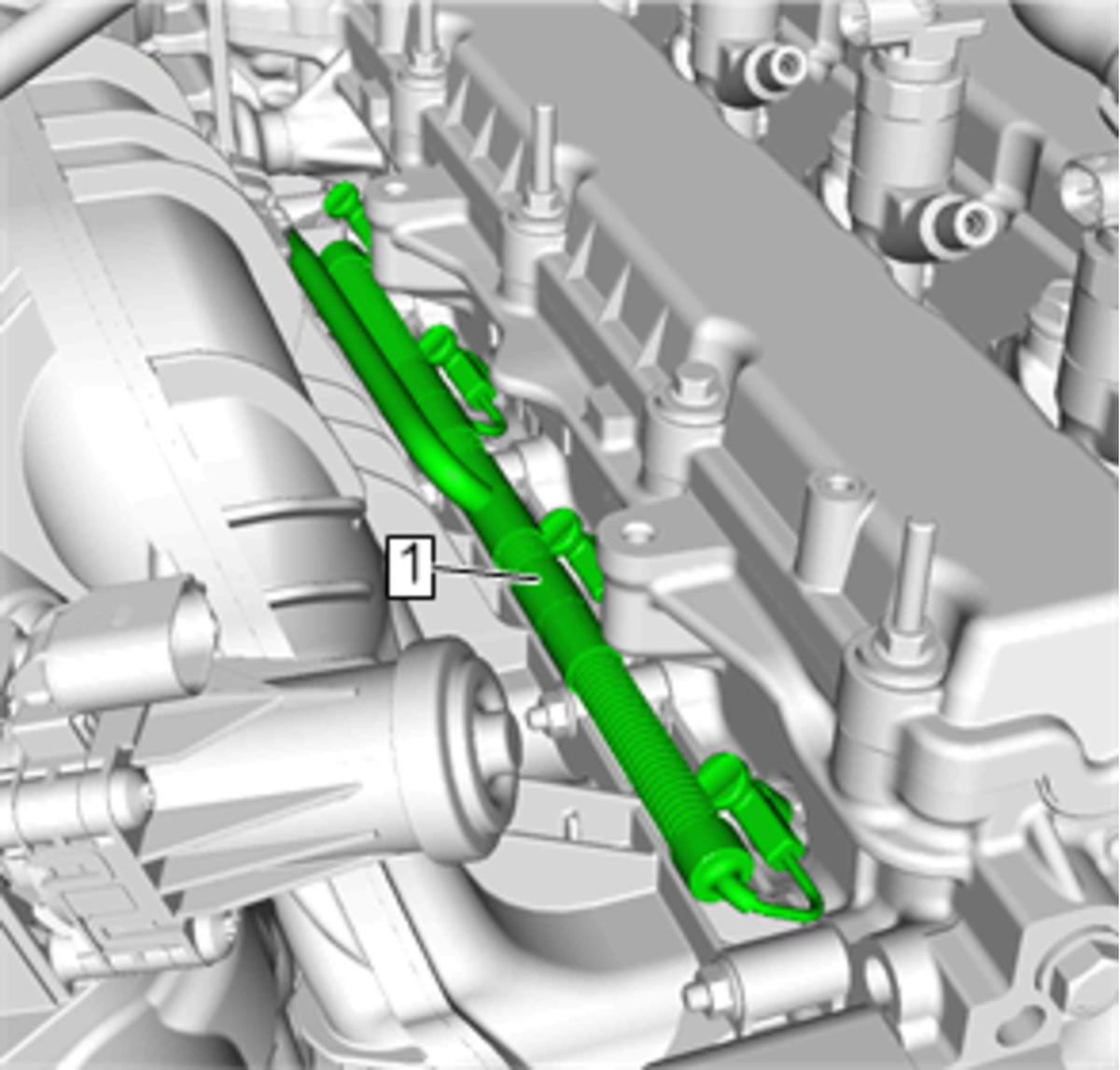

  2. GM4639247Courtesy of GENERAL MOTORS COMPANY

    Diesel Glow Plug Wiring Harness (1) - Connect [4x]

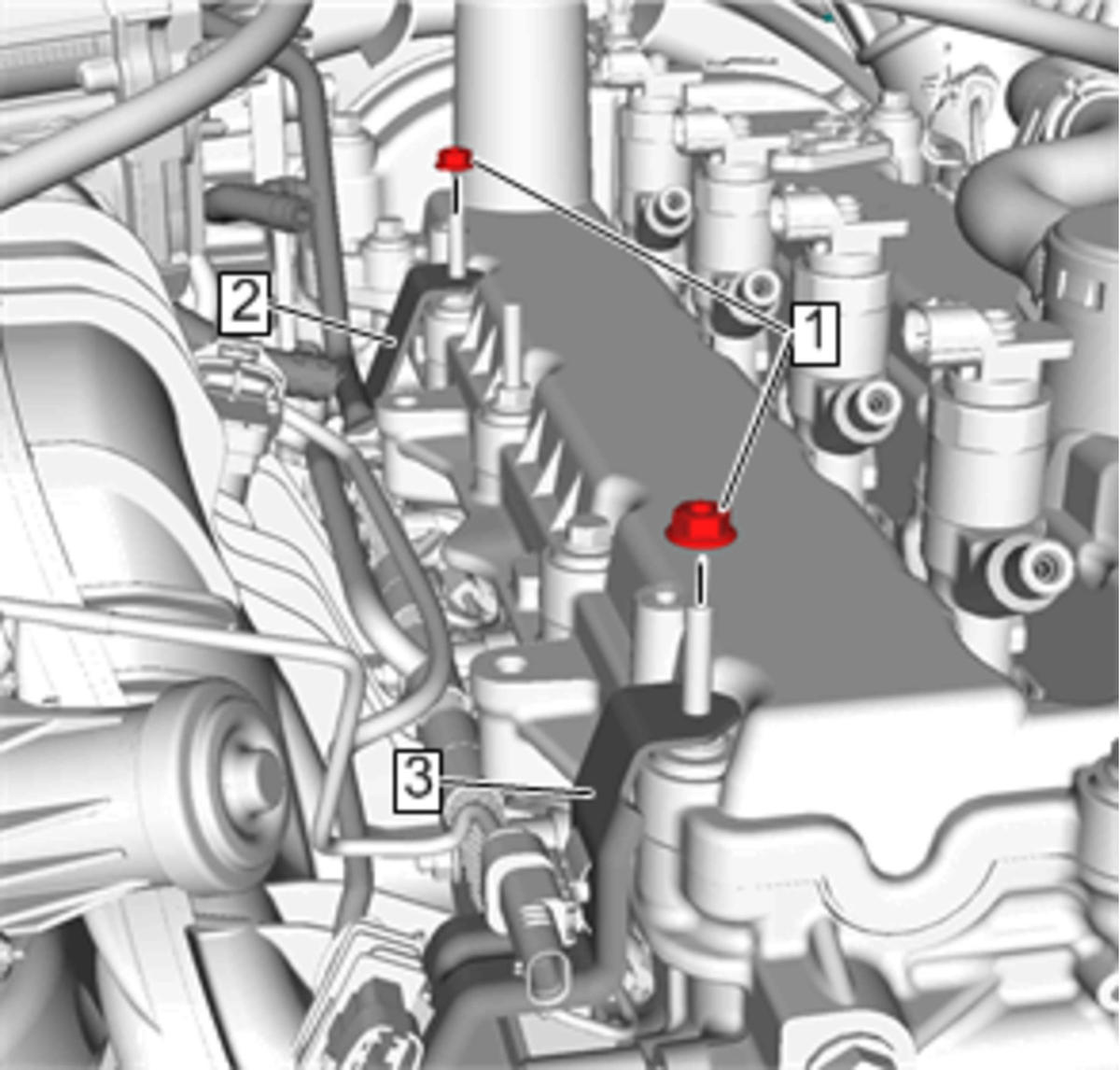

  3. GM4639232Courtesy of GENERAL MOTORS COMPANY

    Diesel Fuel Separator (2) - Install

  4. Exhaust Temperature Sensor Bracket (3) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Auxiliary Heater Inlet and Outlet Hose Clip Nut (1) - Install and tighten [2x] 5.5N.m (49 lb in)
  6. Fuel Injector Deadener Replacement  - Install
