Fuel Tank Shield Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

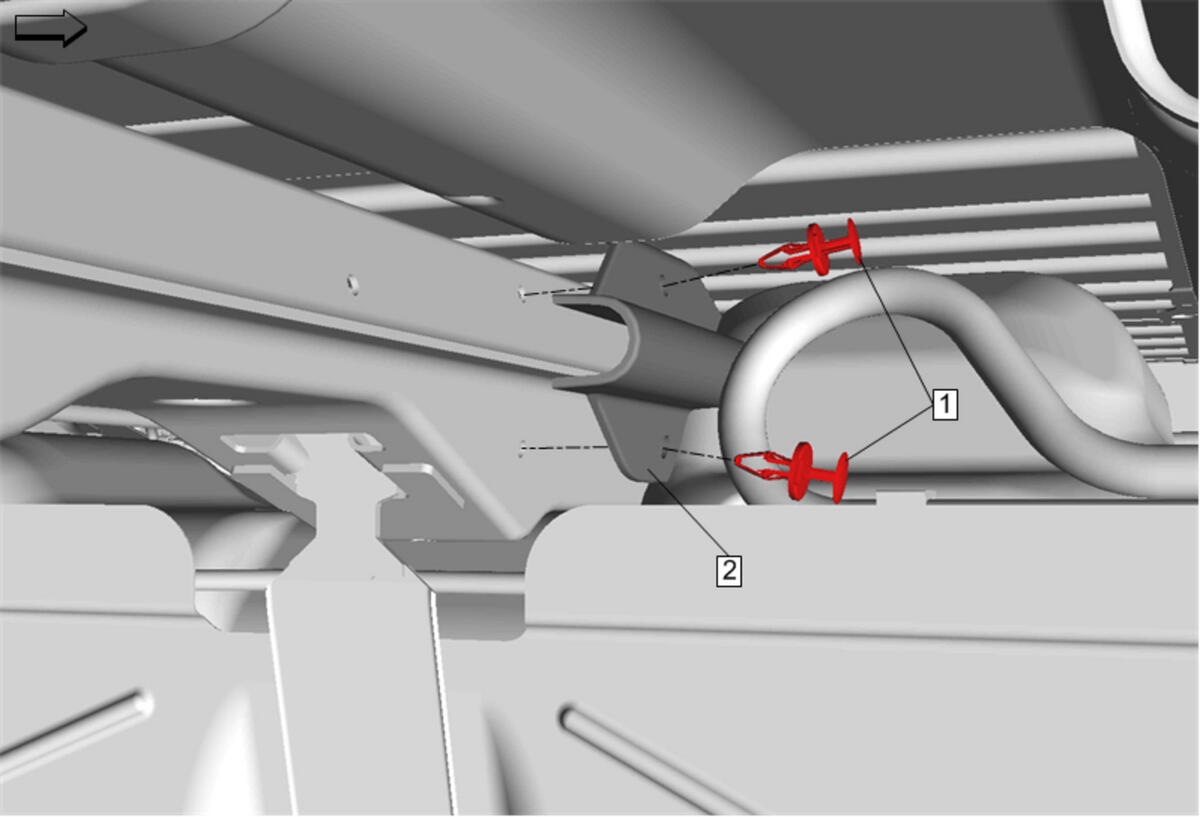

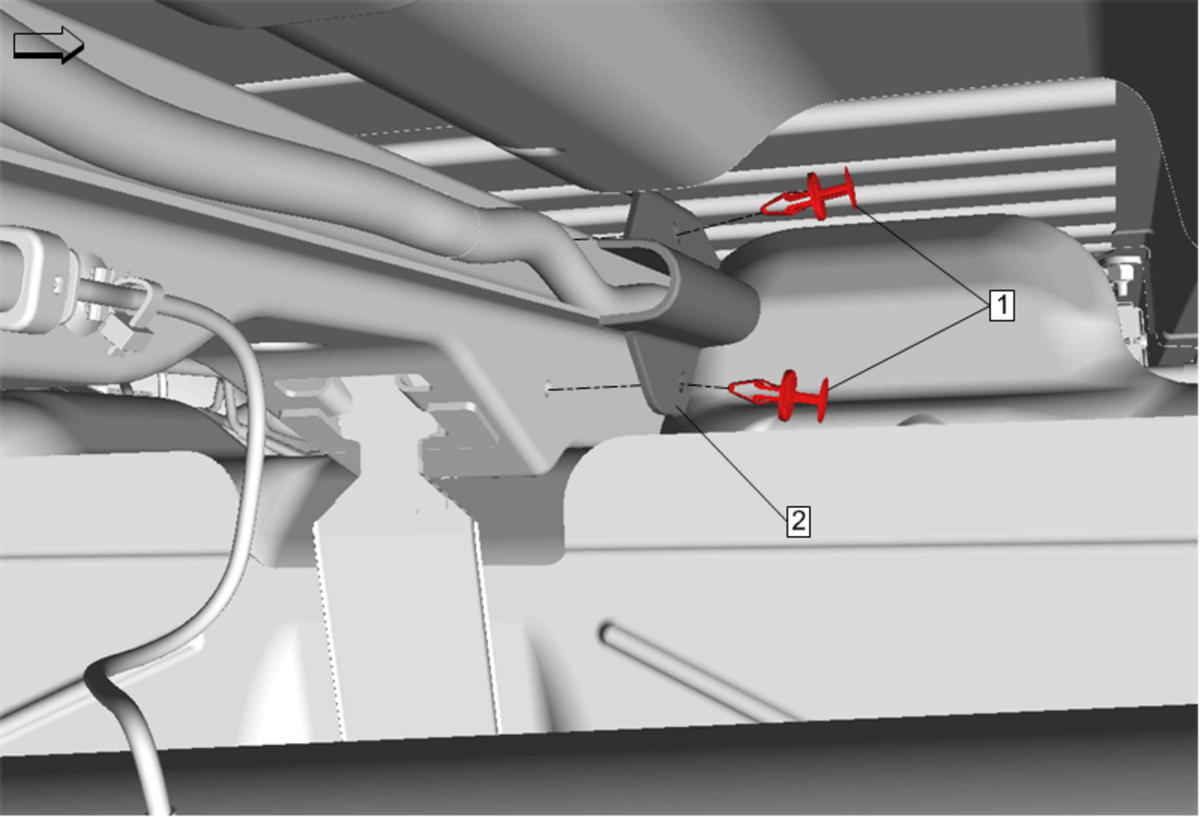

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle . Reposition wiring harness to access retainers and remove shield.
1	Fuel Tank Shield Retainer [2x] CAUTION: Refer to Fastener Caution .
2	Fuel Tank Shield

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Lifting and Jacking the Vehicle .
Reposition wiring harness to access retainers and remove shield.

Fuel Tank Shield Retainer [2x]

CAUTION:

Refer to Fastener Caution .

Fuel Tank Shield
