Fuel Tank Heat Shield Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

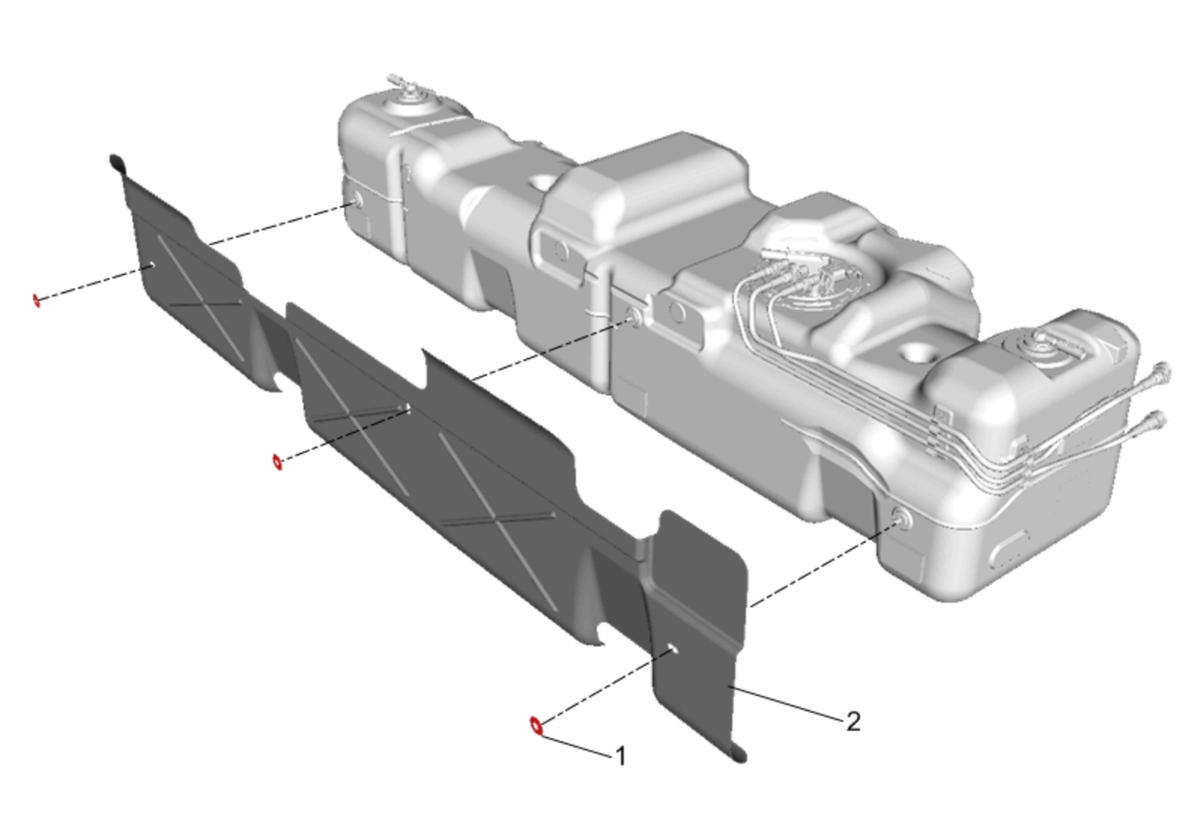

GM4601637Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Replacement
1 Fuel Tank Heat Shield Retainer [3x]
CAUTION:

Refer to Fastener Caution .
2 Fuel Tank Heat Shield
