Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

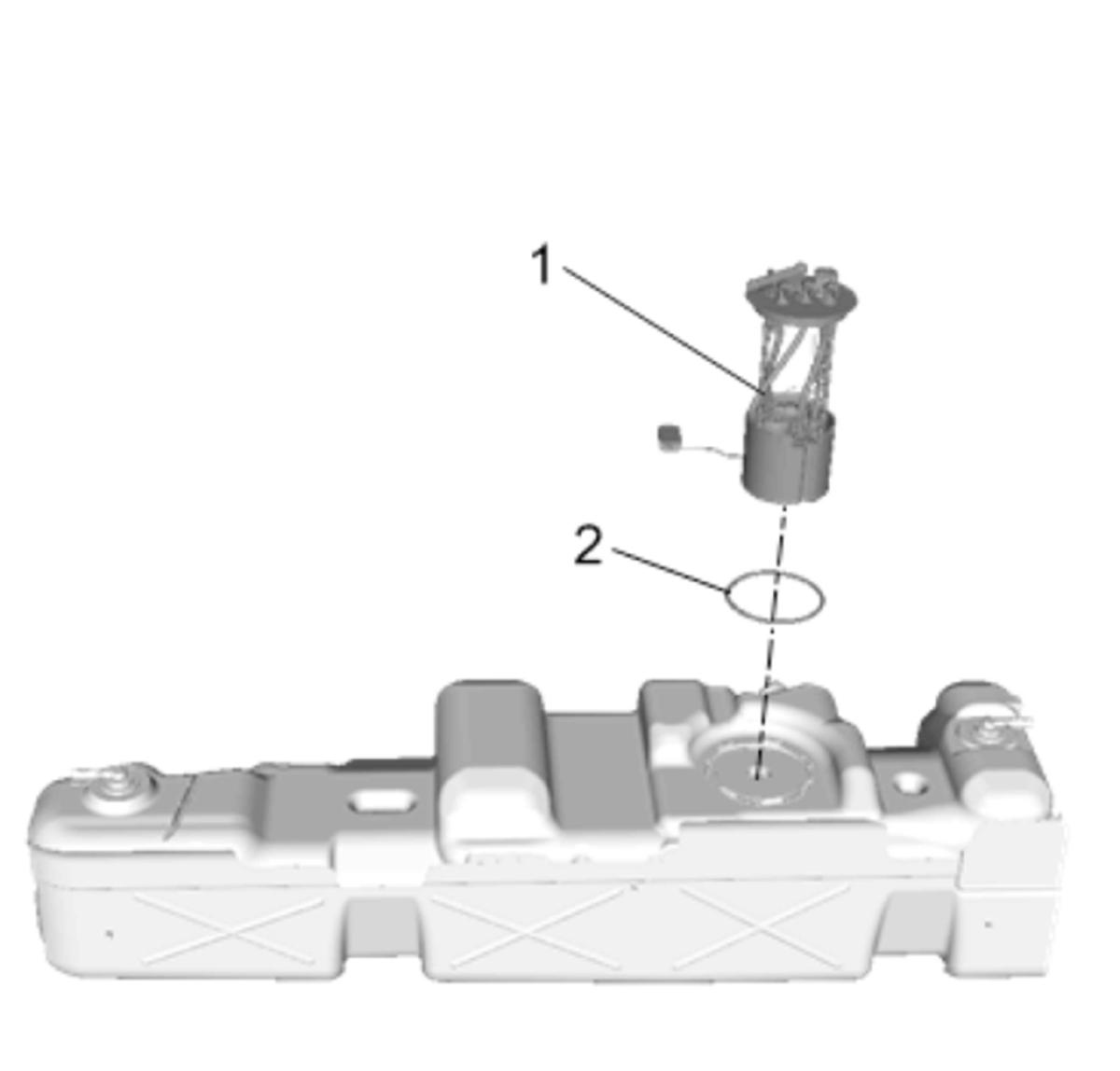

O-Ring (2) - Install NEW
- Fuel Tank Fuel Pump Module (1) - Install

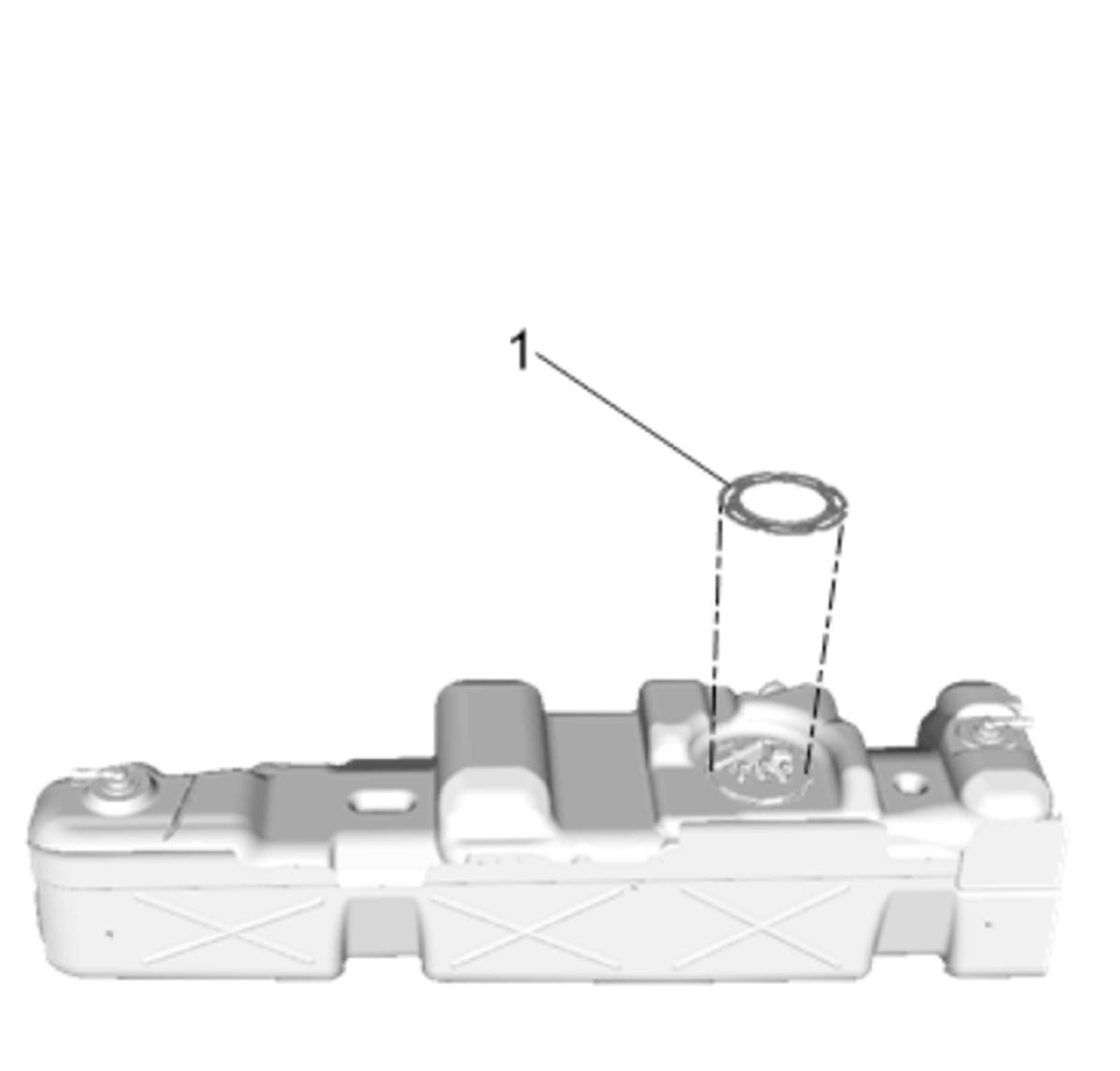

Fuel Sender Retainer (1) - Install - CH 45722 Fuel Sender Lock Ring Wrench

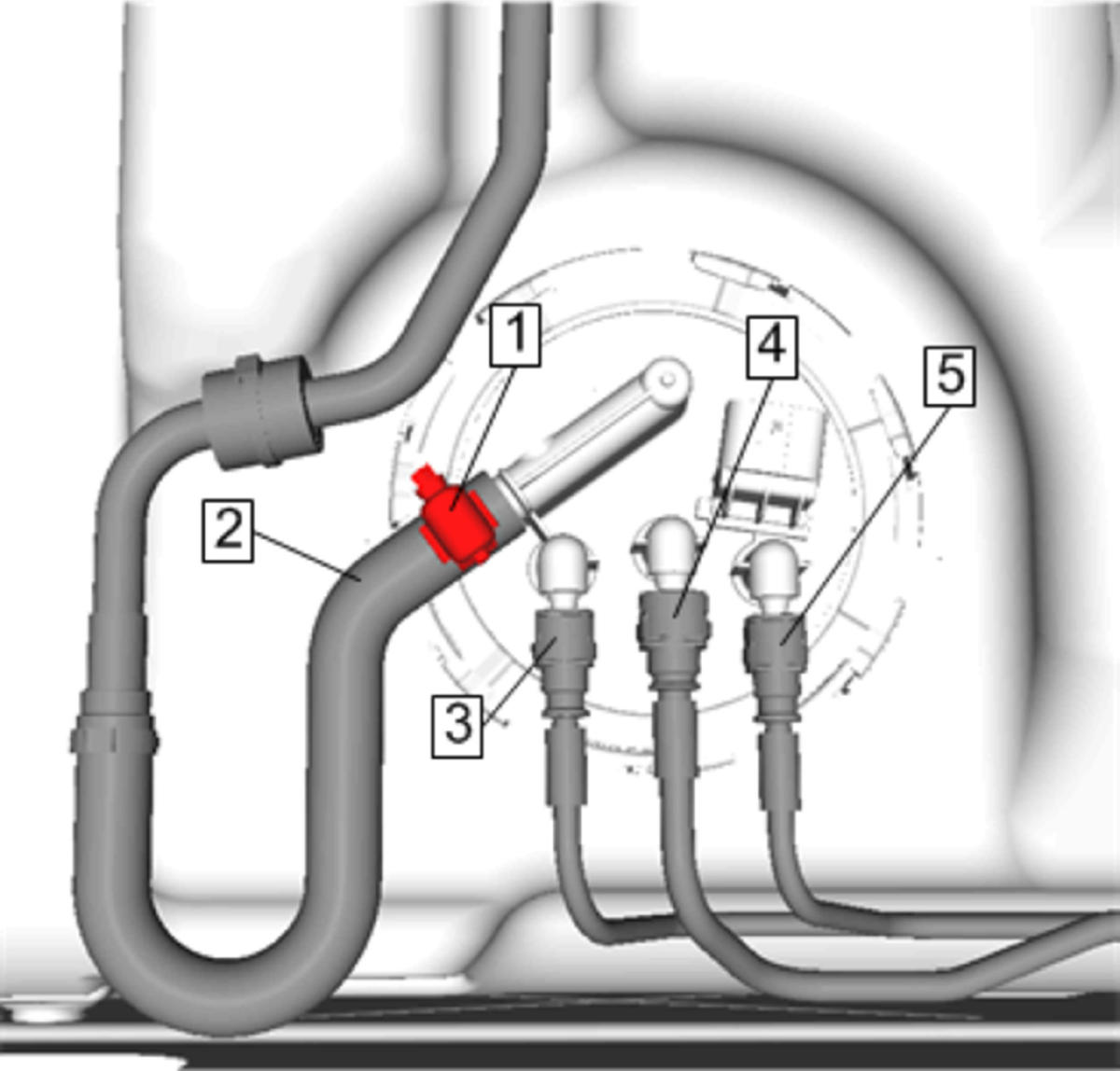

{ If equipped } Auxiliary Fuel Feed and Return Pipe (5) - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Feed Pipe (4) - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Return Pipe (3) - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Filler Vent Hose (2) - Install
- Fuel Tank Filler Vent Hose Clamp (1) - Install and tighten 3N.m (27 lb in)
- Fuel Tank - Install - Fuel Tank Replacement
CAUTION:
Refer to Fastener Caution .
