Fuel Tank Filler Vent Hose Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

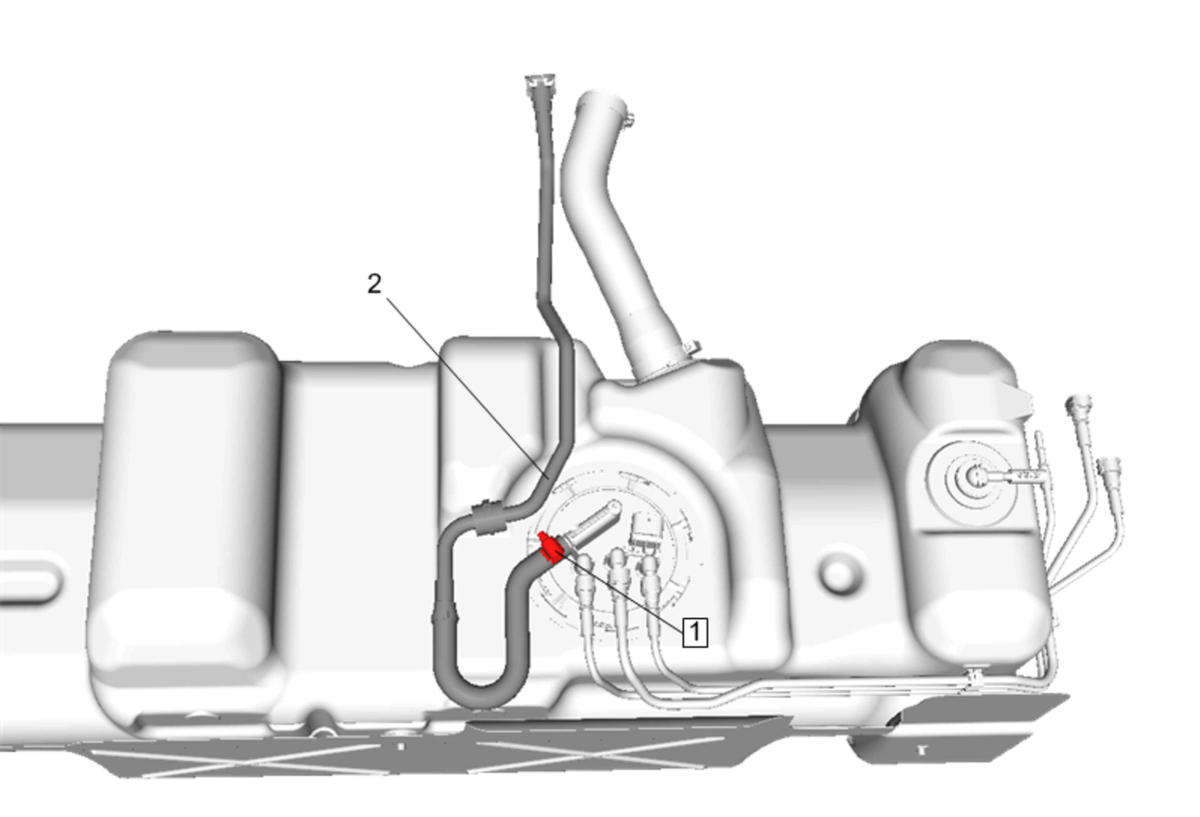

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Fuel Tank Replacement Refer to Safety Glasses Warning . |
|
| 1 | Fuel Tank Filler Vent Hose Clamp
CAUTION:
Refer to Fastener Caution . Tighten 3N.m (27 lb in) |
| 2 | Fuel Tank Filler Vent Hose |
