Fuel Return Rear Pipe Replacement (Cooler to Front Pipe)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

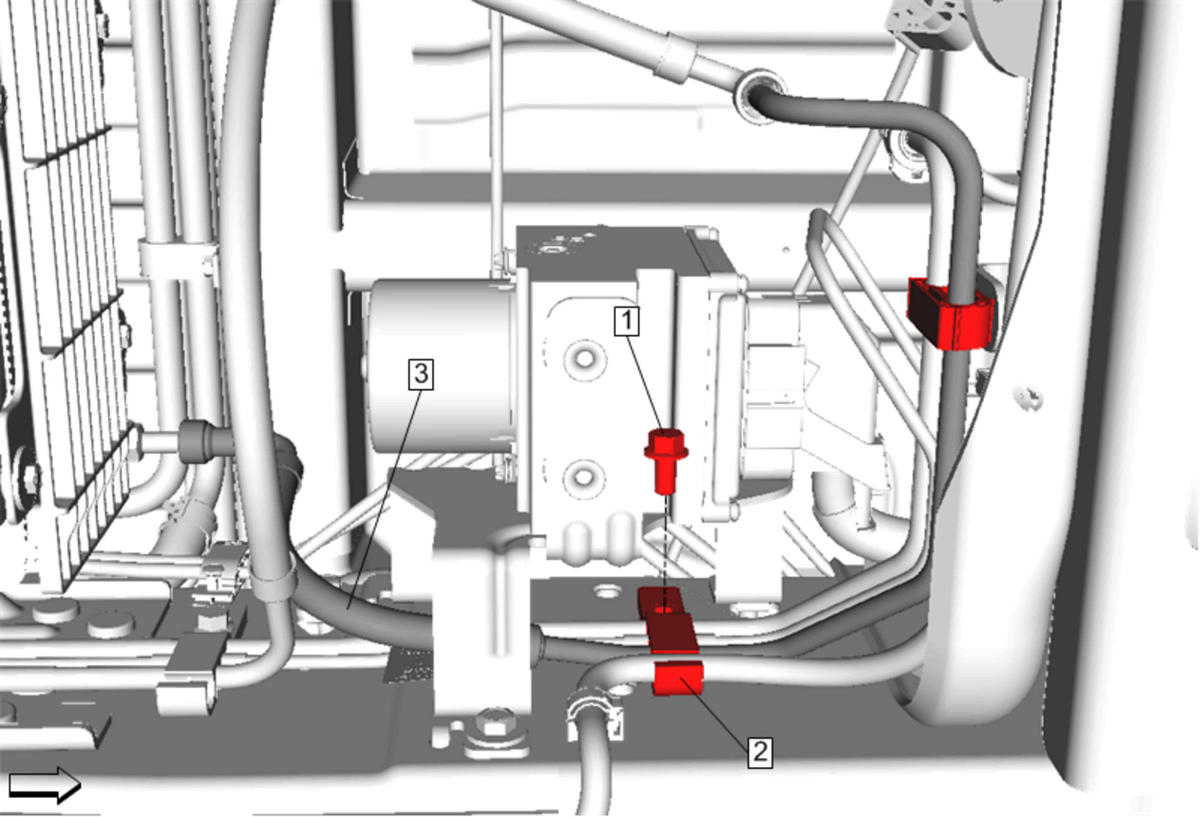

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
.Refer to Safety Glasses Warning . |
|
| 1 | Fuel Return Rear Pipe Retainer Bolt
CAUTION:
Refer to Fastener Caution . Tighten 8.5N.m (75 lb in) |
| 2 | Fuel Return Rear Pipe Retainer |
| 3 | Fuel Return Rear Pipe Procedure Disconnect the fuel return rear pipe and remove from retainers. Metal Collar Quick Connect Fitting Service |
