Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

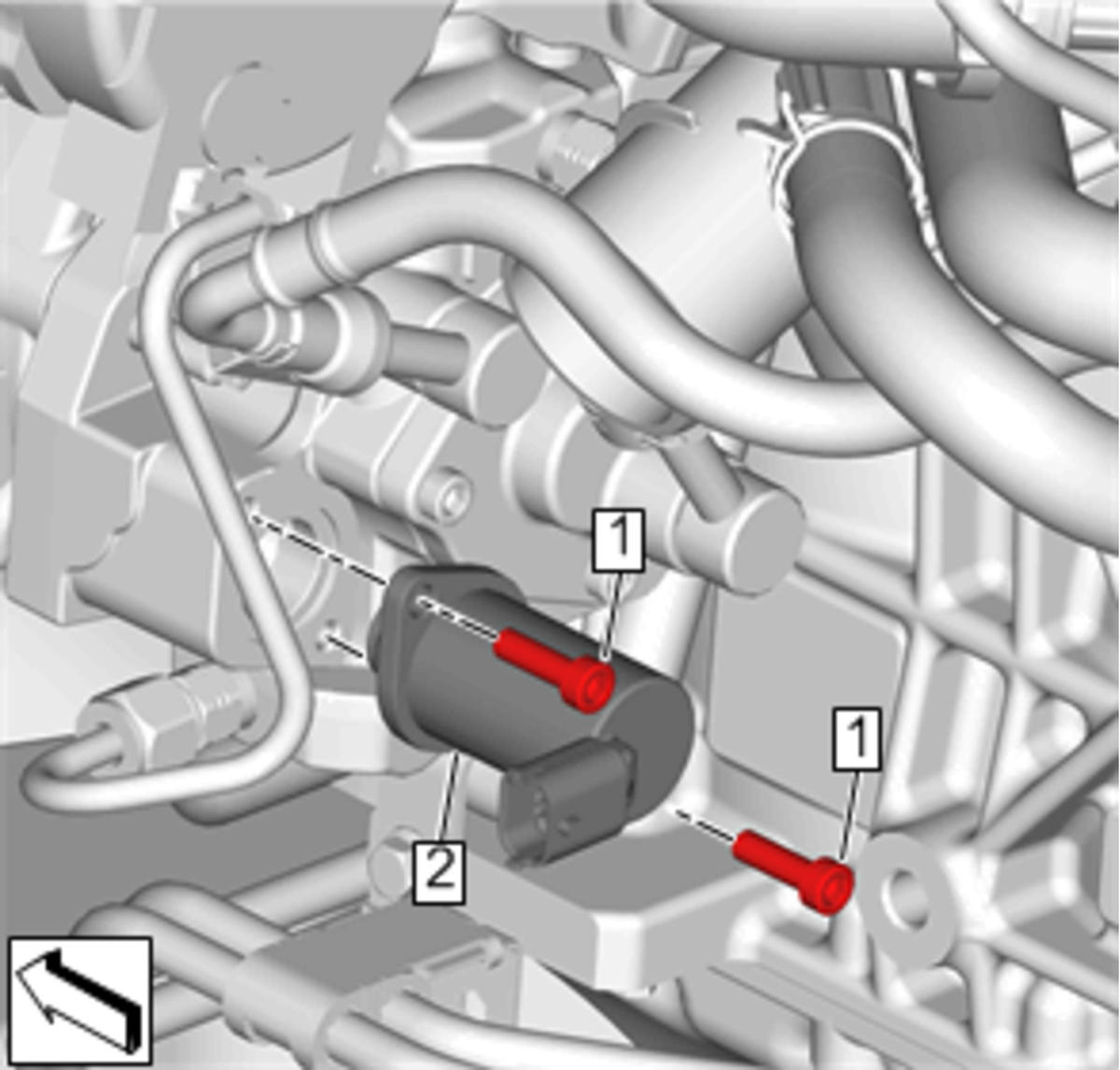

Install the fuel injection pump metering valve (2).
Install a NEW fuel injection pump metering valve o-ring seal. The seal is NOT shown.
- Install the fuel injection pump metering valve fasteners (1) and tighten to 9 N.m (80 lb in).

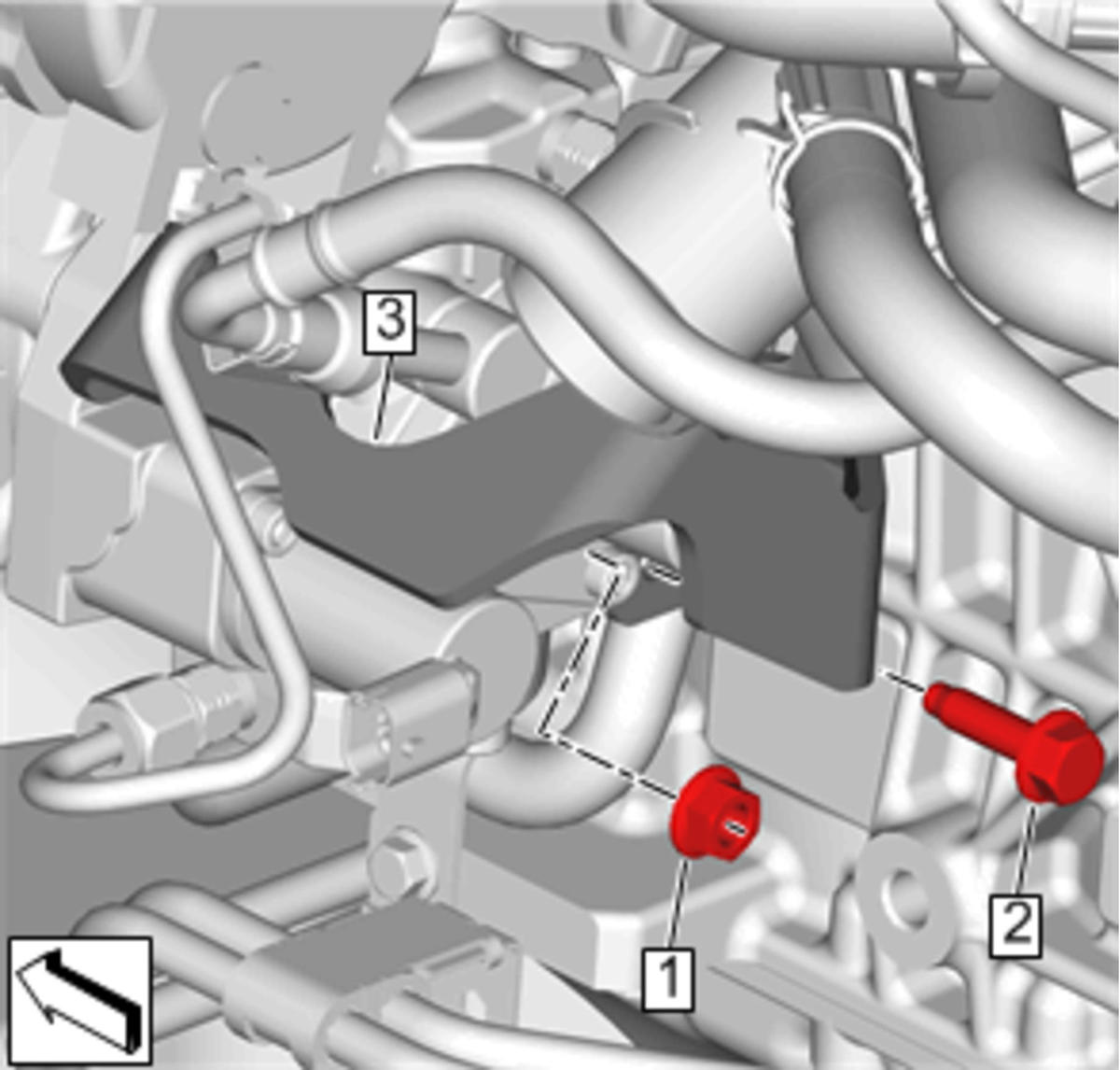

Position the fuel feed hose protector (3).
- Install the fuel feed hose protector bolt (2) and tighten to 25 N.m (18 lb ft).
- Install the fuel feed and return harness bracket nut (1) and tighten to 22 N.m (16 lb ft).

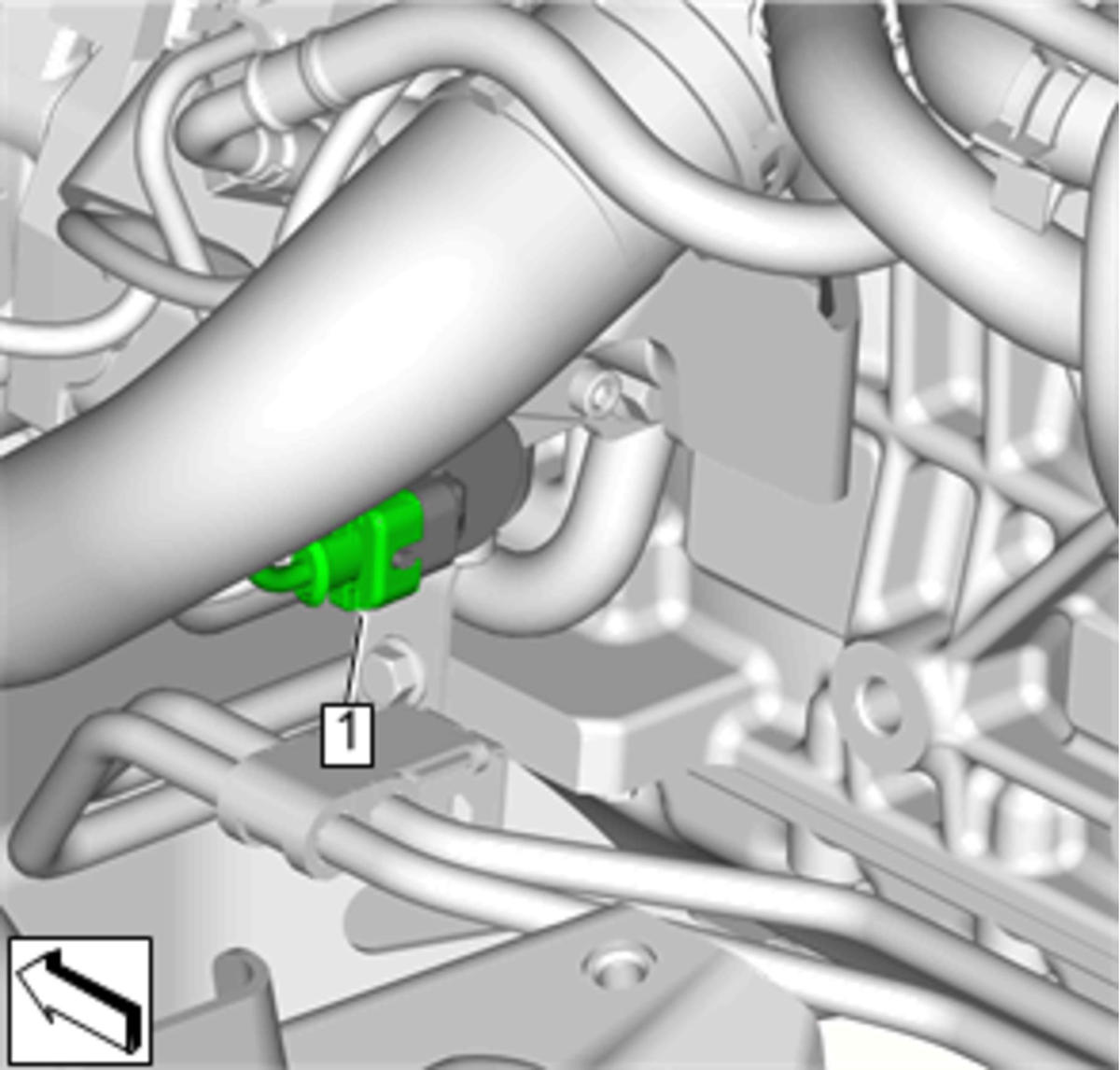

Connect the electrical connector (1).
- Engine Mount Bracket-Left Side - Install - Engine Mount Bracket Replacement - Left Side
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
- Prime the fuel system. Fuel System Priming
- With the engine running, check the fuel system for leaks.
- If replacing, perform the high pressure fuel correction reset. High Pressure Fuel Correction Reset
CAUTION:
Refer to Fastener Caution .
