Fuel Feed Rear Pipe Replacement (At Chassis)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

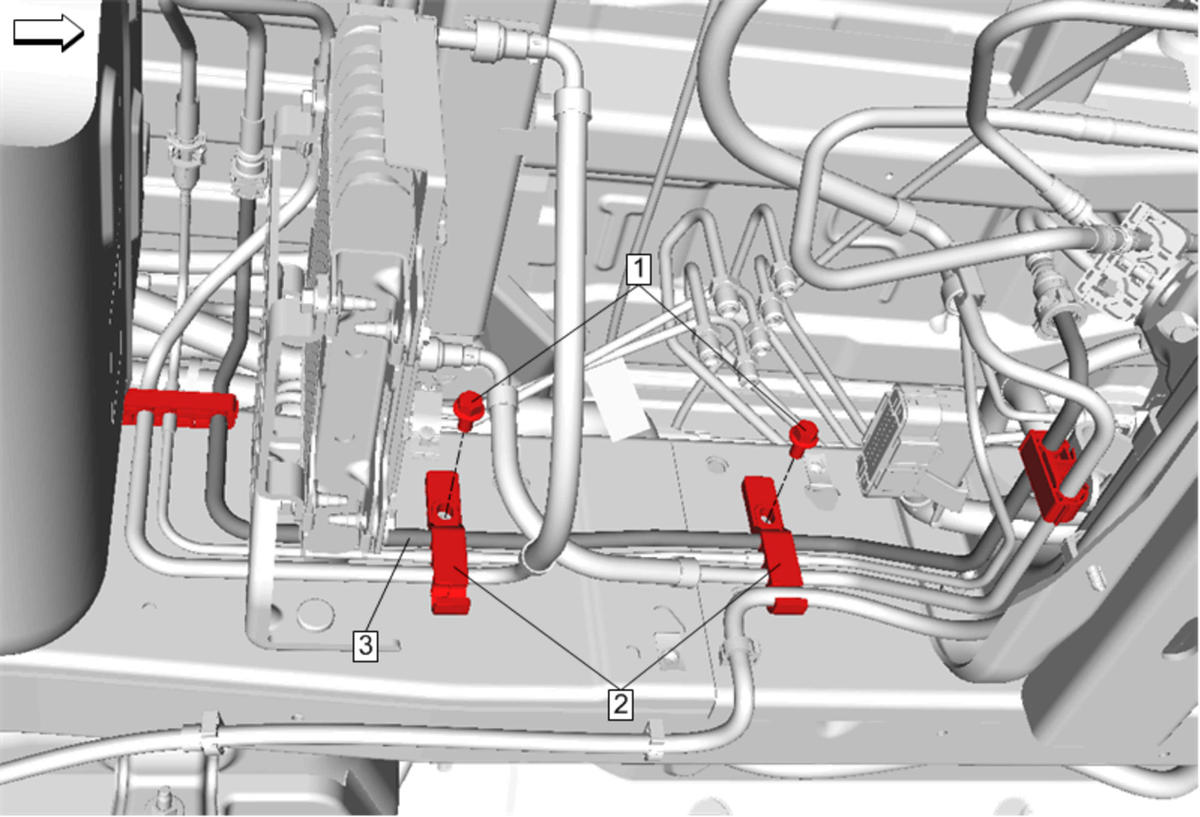

GM4855566Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle .
  2. Brake Pressure Modulator Valve - Reposition - Brake Pressure Modulator Valve Replacement
  3. Fuel Feed Rear Pipe @ Fuel Cooler - Disconnect - Plastic Collar Quick Connect Fitting Service
1 Fuel Feed Rear Pipe Retainer Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
8.5N.m (75 lb in)
2 Fuel Feed Rear Pipe Retainer [2x]
3 Fuel Feed Rear Pipe
Procedure
Disconnect the fuel feed rear pipe and remove from retainers. Plastic Collar Quick Connect Fitting Service
