Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

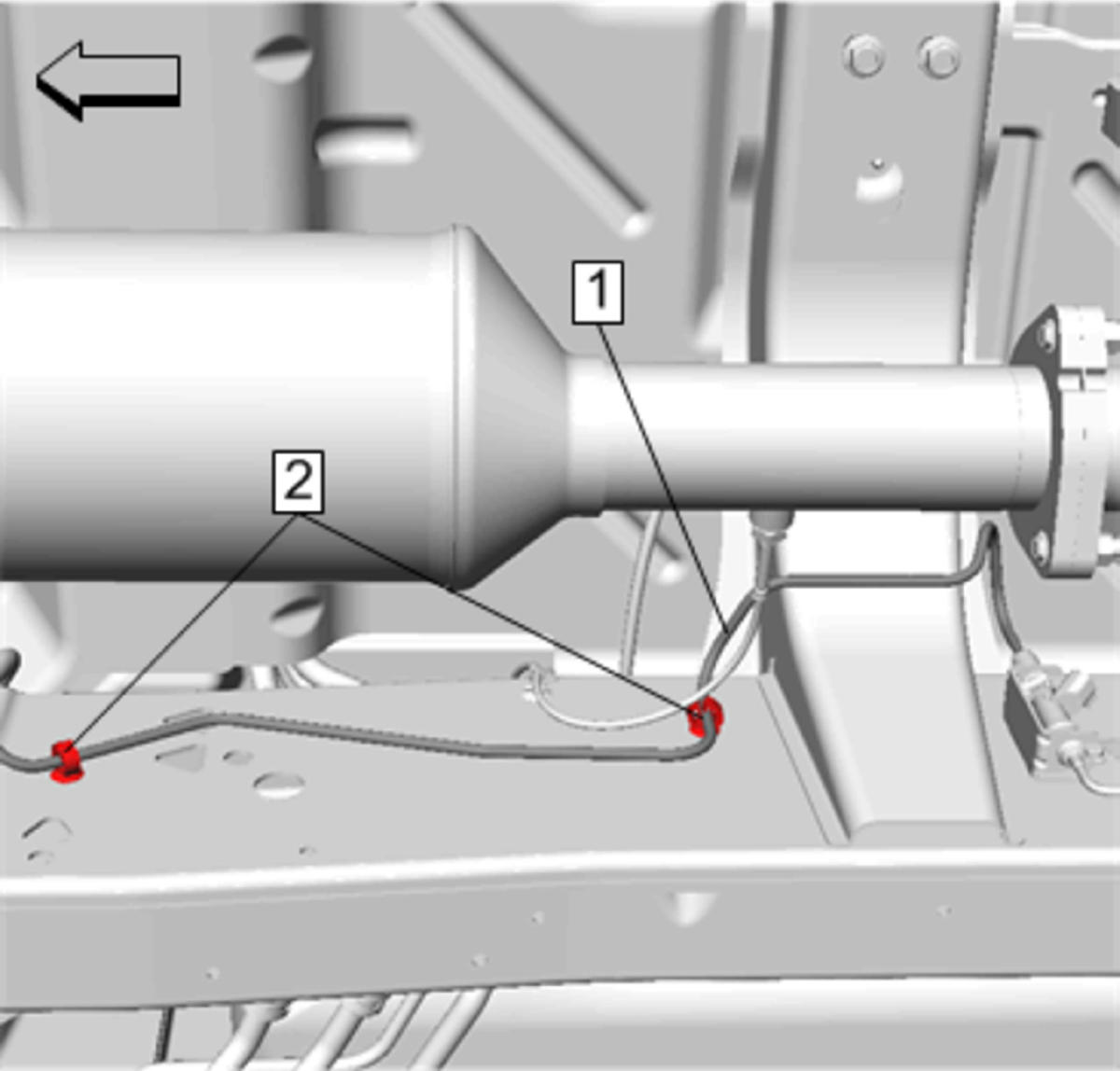

  1. GM4605869Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Hydrocarbon Injection Front Pipe (1) @ Retainer (2) - Install [2x]

  2. Fuel Feed Hydrocarbon Injection Front Pipe (1) - Connect - CH-49736  Hydrocarbon Injector Quick Connect Release Tool

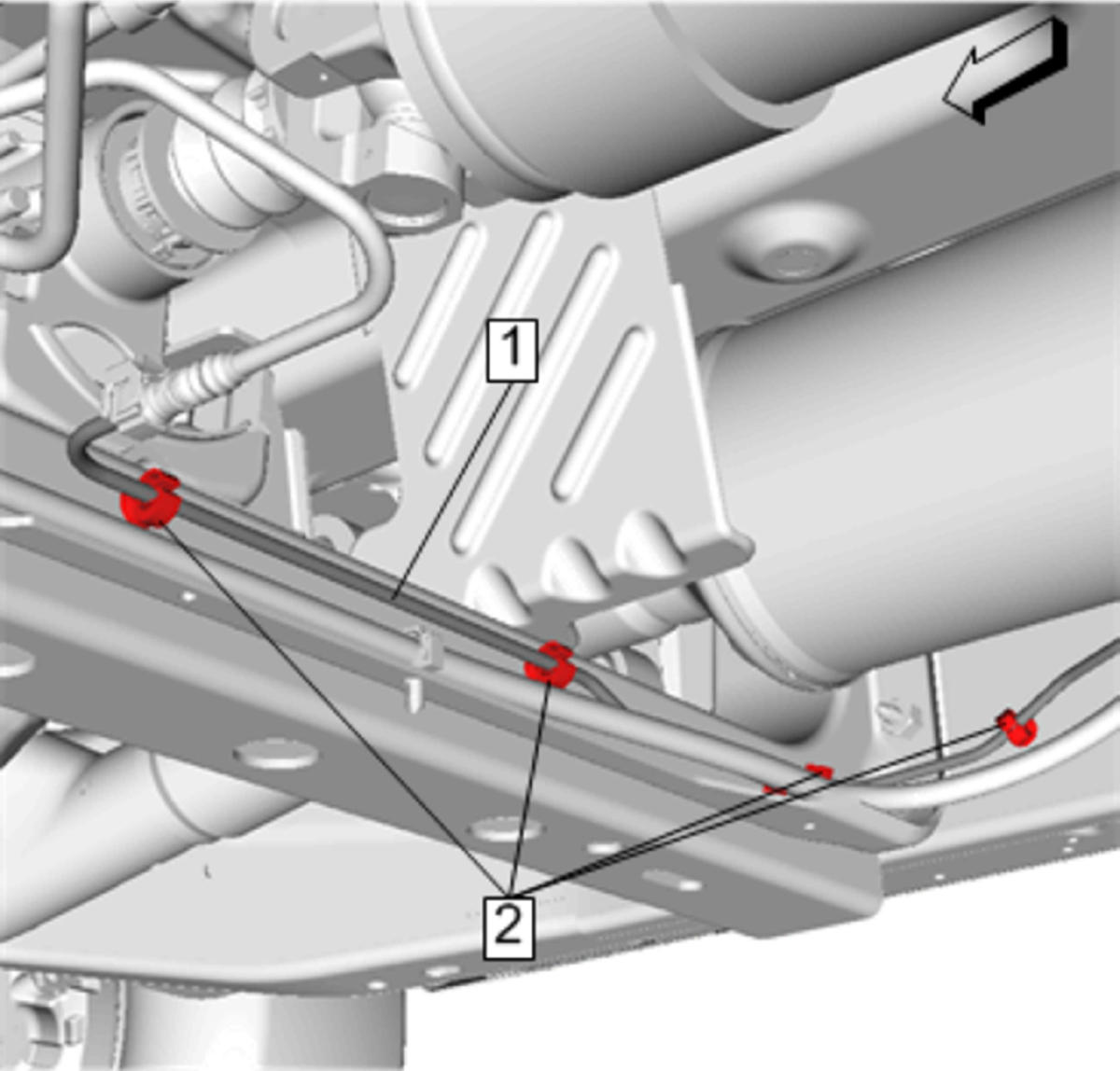

  3. GM4605867Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Hydrocarbon Injection Front Pipe (1) @ Retainer (2) - Install [4x]

  4. Fuel Feed Hydrocarbon Injection Front Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service
  5. Lower the vehicle.
