Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

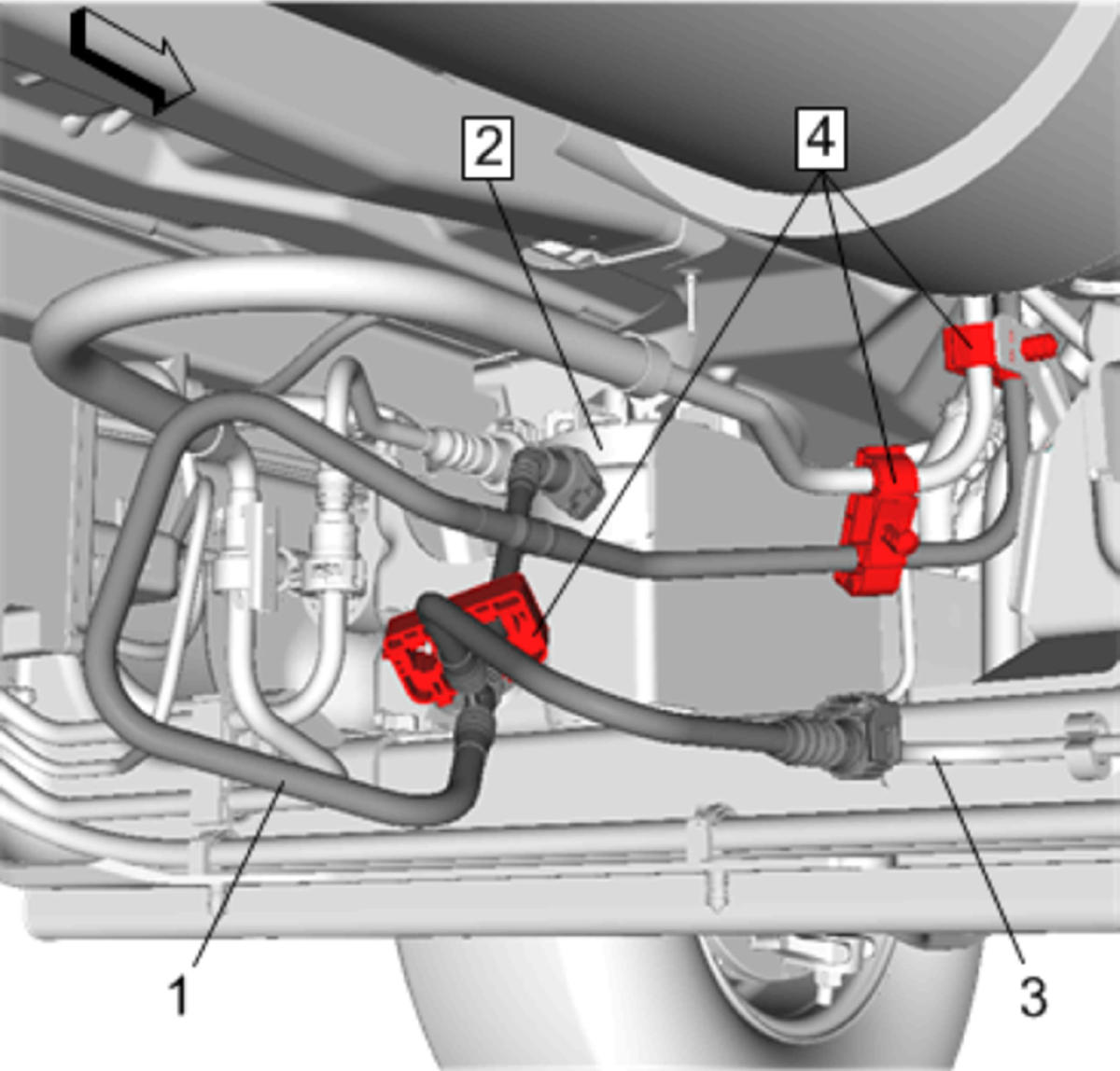

  1. GM4621698Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Front Pipe (1) @ Retainer (4) - Install [3x]

  2. Fuel Feed Front Pipe (1) @ Fuel Feed Hydrocarbon Injection Front Pipe (3) - Connect - Plastic Collar Quick Connect Fitting Service
  3. Fuel Feed Front Pipe (1) @ Fuel Filter Assembly (2) - Connect - Plastic Collar Quick Connect Fitting Service

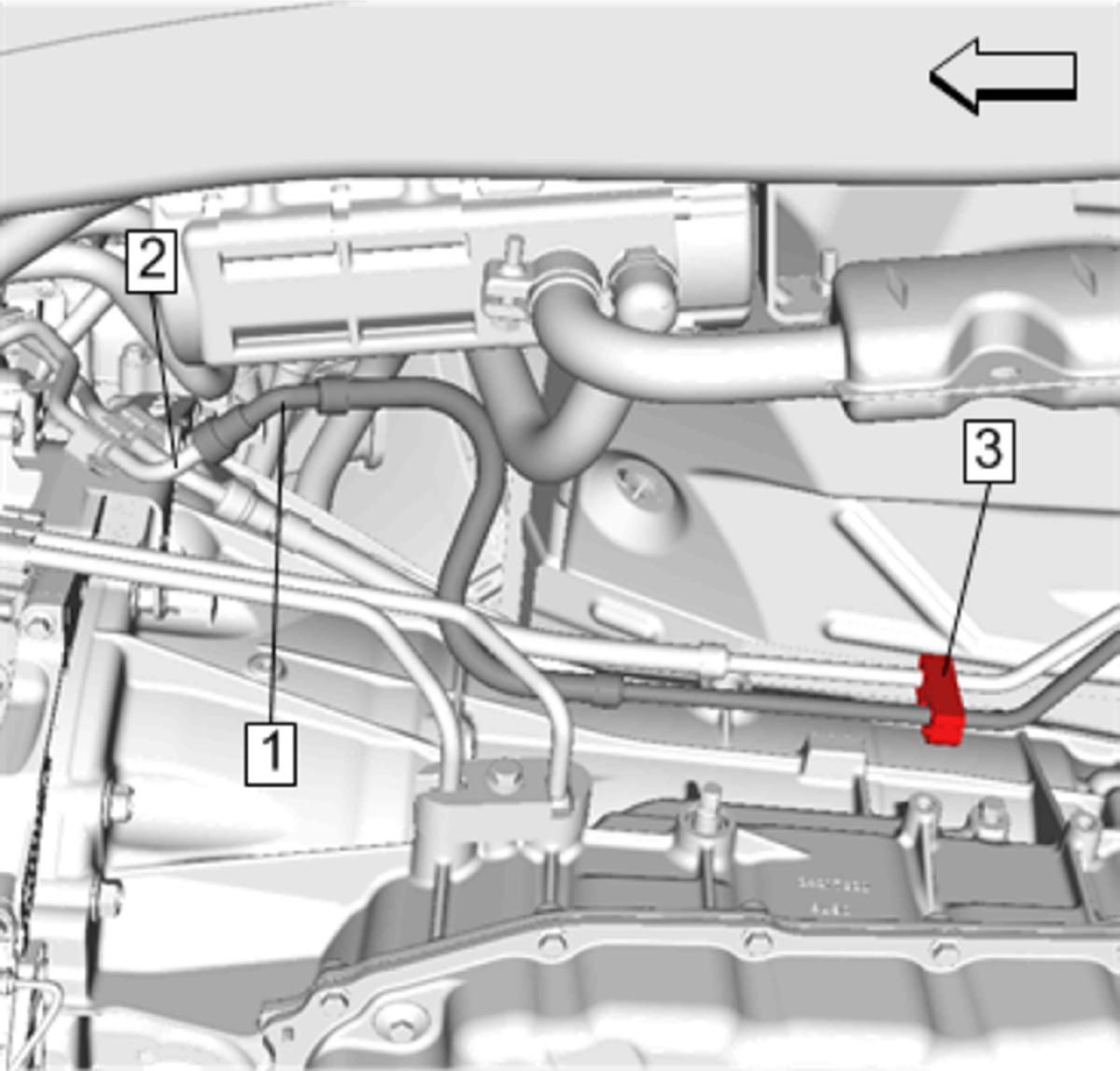

  4. GM4621696Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Front Pipe (1) @ Retainer (3) - Install

  5. Fuel Feed Front Pipe (1) @ Fuel Pump Fuel Feed Hose (2) - Connect - Metal Collar Quick Connect Fitting Service
  6. Lower the vehicle.
  7. Start engine and check for leaks.
