Fuel Cooler Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

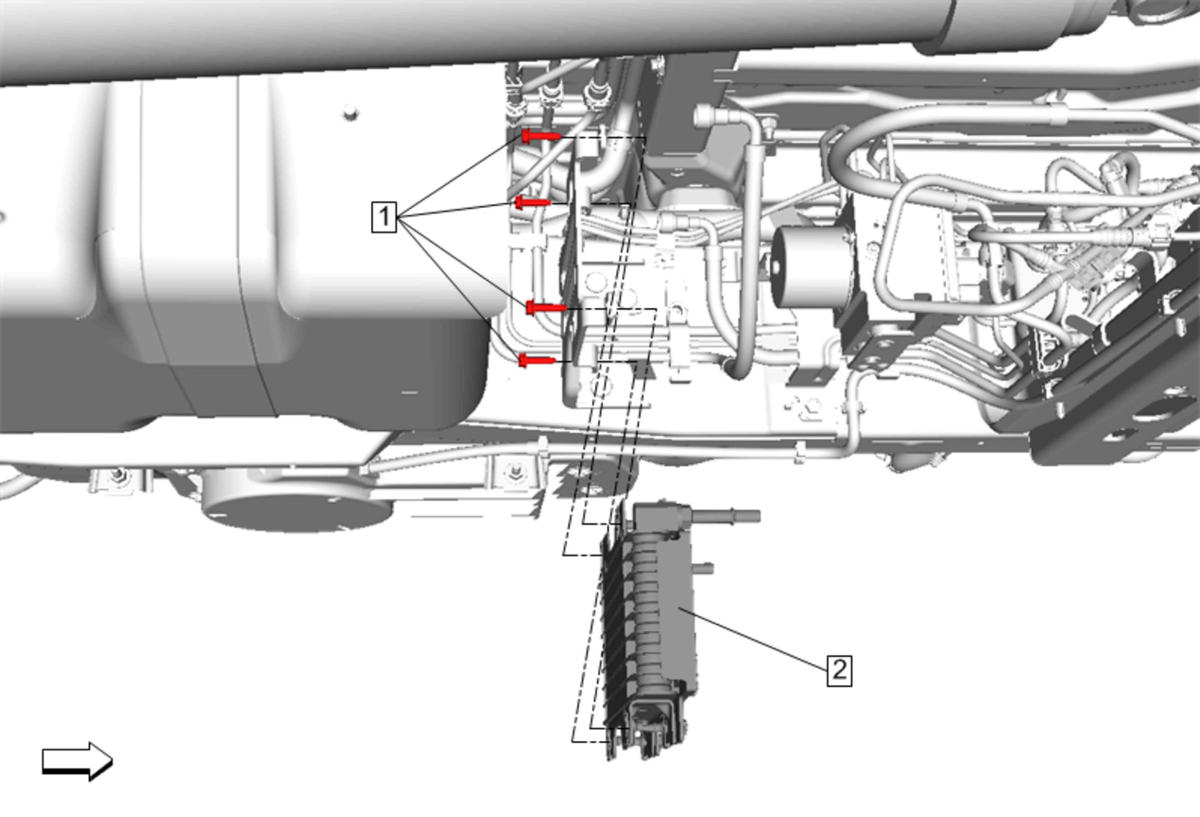

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning . Preliminary Procedures
|
|
| 1 | Fuel Cooler Bolt [4x]
CAUTION:
Refer to Fastener Caution . Tighten 10N.m (89 lb in) |
| 2 | Fuel Cooler |
