Exhaust Pressure Differential Sensor Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

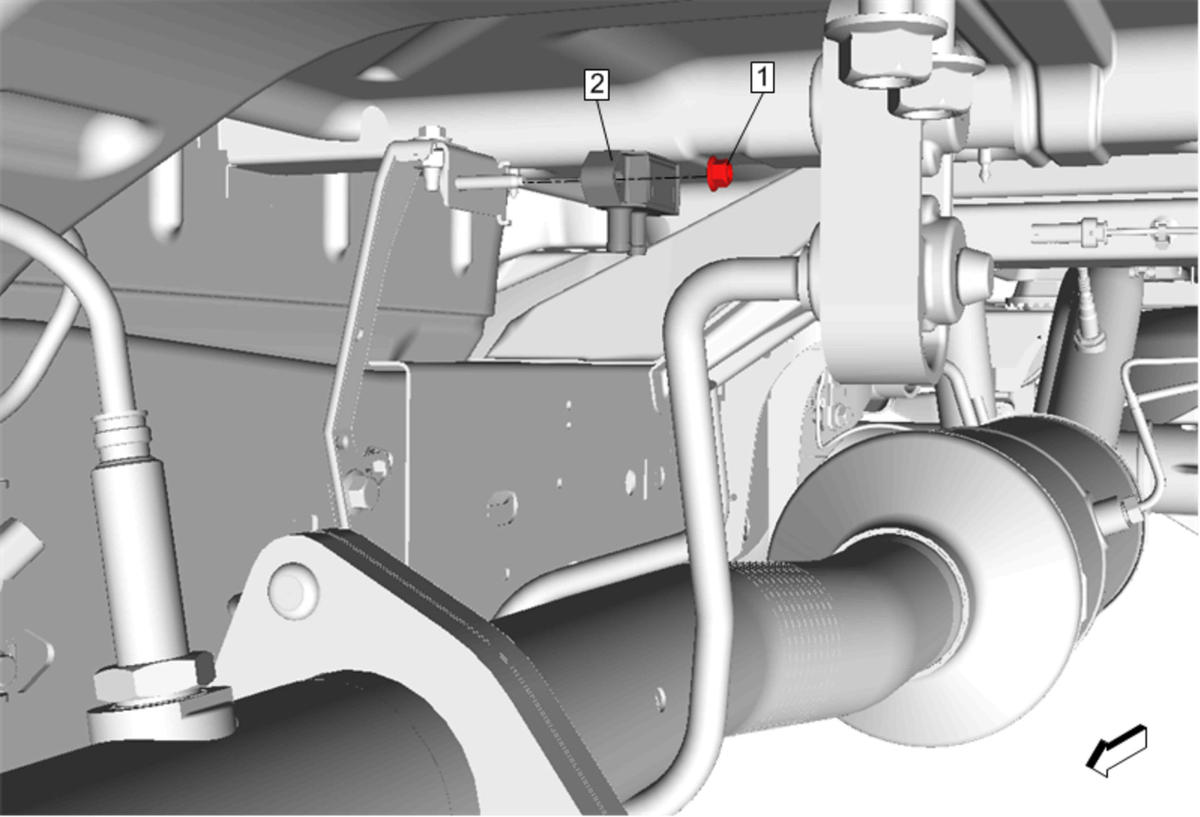

| Callout | Component Name |
|---|---|
| Preliminary Procedure Exhaust Pressure Differential Sensor Pipe @ Exhaust Pressure Differential Sensor - Remove - Exhaust Pressure Differential Sensor Pipe Replacement |
|
| 1 | Exhaust Pressure Differential Sensor Nut
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Exhaust Pressure Differential Sensor Procedure
|
