Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

A special anti-seize compound is used in the sensor or line fittings threads. The compound consists of liquid graphite and glass beads. The graphite tends to burn away, but the glass beads remain, making the sensor or line fitting easier to remove. New, or service replacement sensors or line fittings already have the compound applied to the threads. If the sensor or line fittings are removed from an exhaust component and if for any reason the sensor or line fitting are reinstalled, the threads must have anti-seize compound applied before reinstallation.

If reinstalling the old sensor pipe or sensor line fittings, coat the threads with anti-seize compound. Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

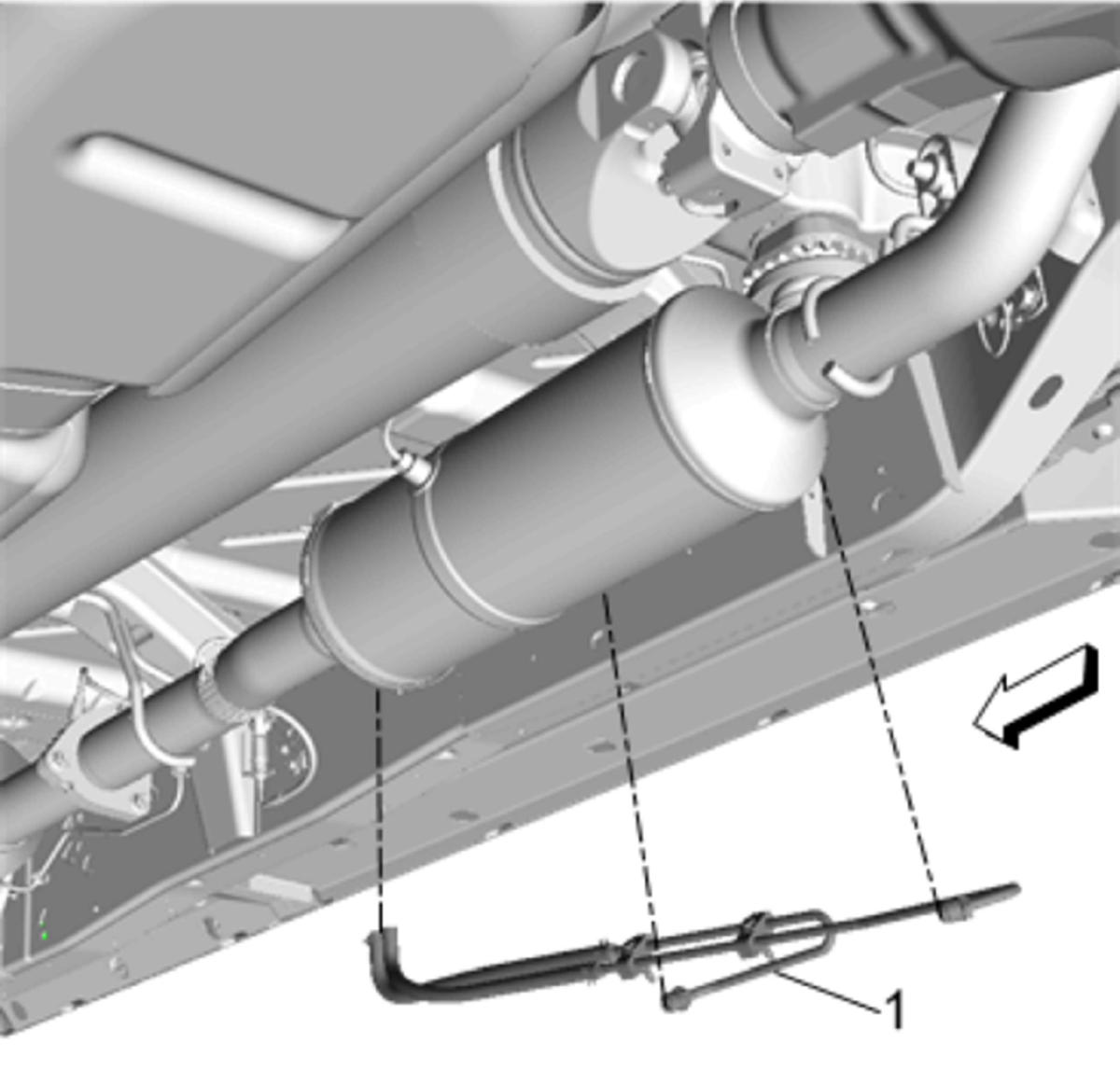

Exhaust Pressure Differential Sensor Pipe (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

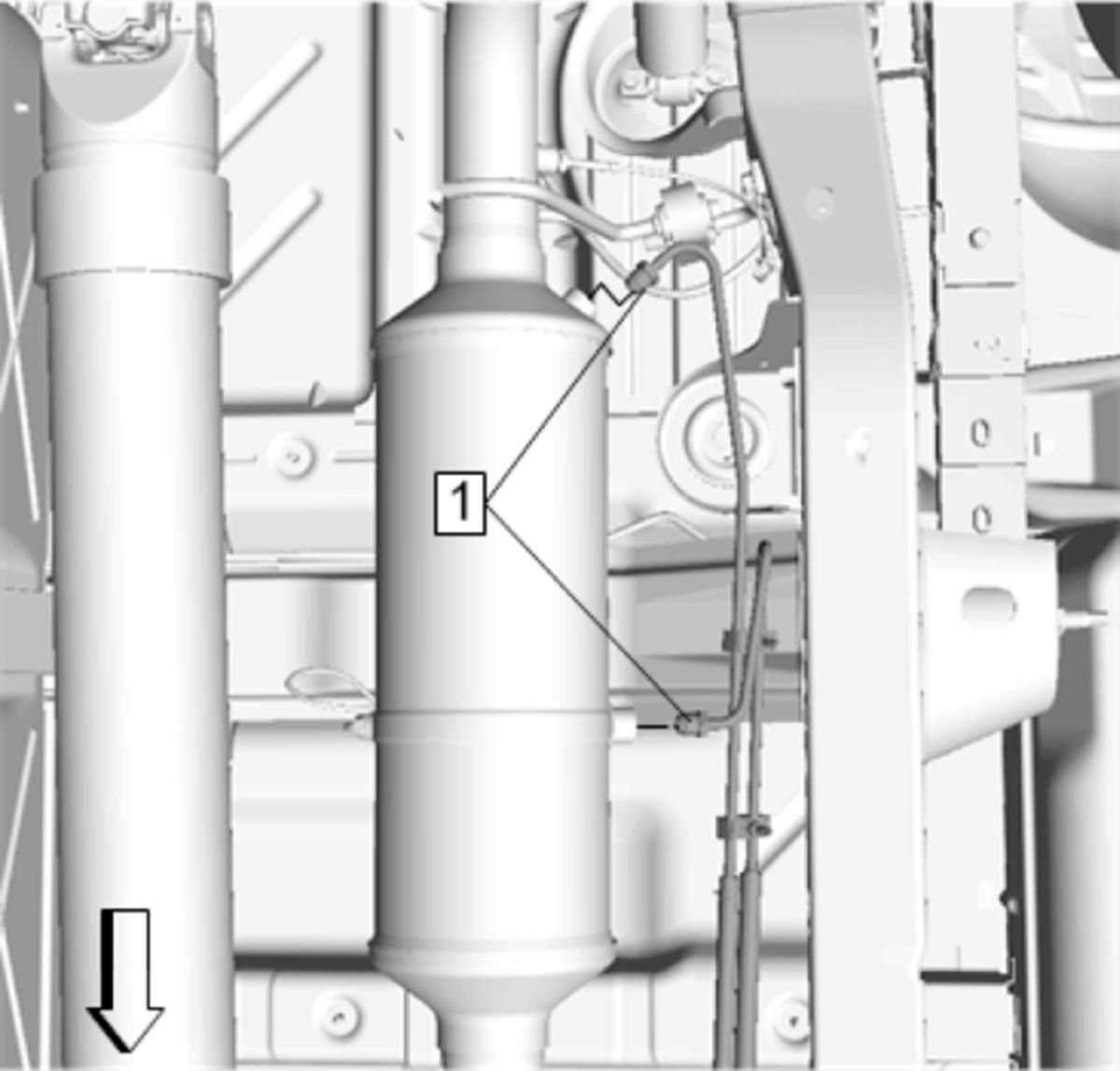

Exhaust Pressure Differential Sensor Pipe Fittings (1) - Install and tighten [2x] 45N.m (33 lb ft)
Courtesy of GENERAL MOTORS COMPANY

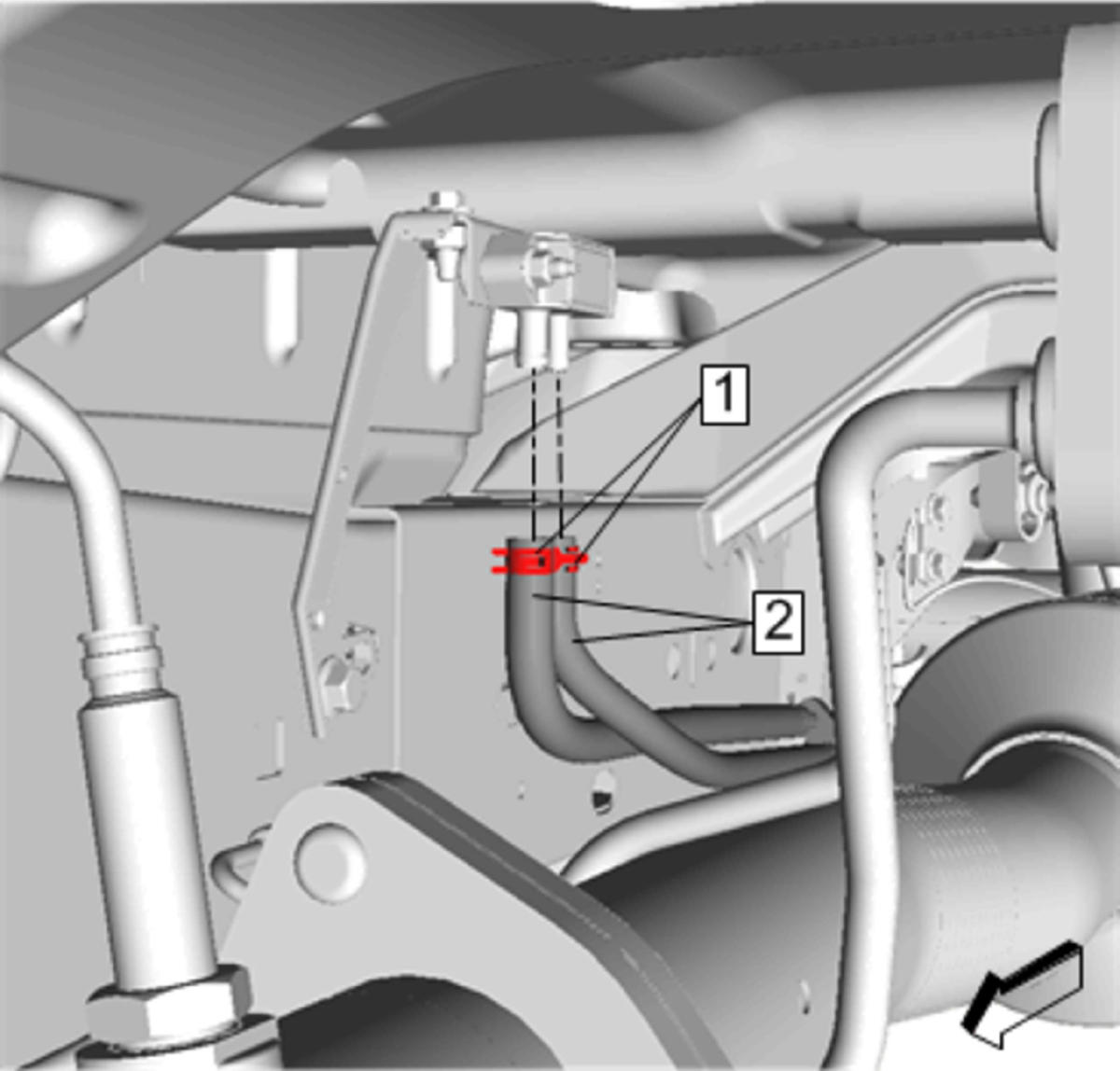

Exhaust Pressure Differential Sensor Pipe (2) - Install [2x]
Exhaust Pressure Differential Sensor Pipe Clamp (1) - Install [2x] - Hose Clamp Replacement Guidelines - Spring Type
Lower the vehicle.
