Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

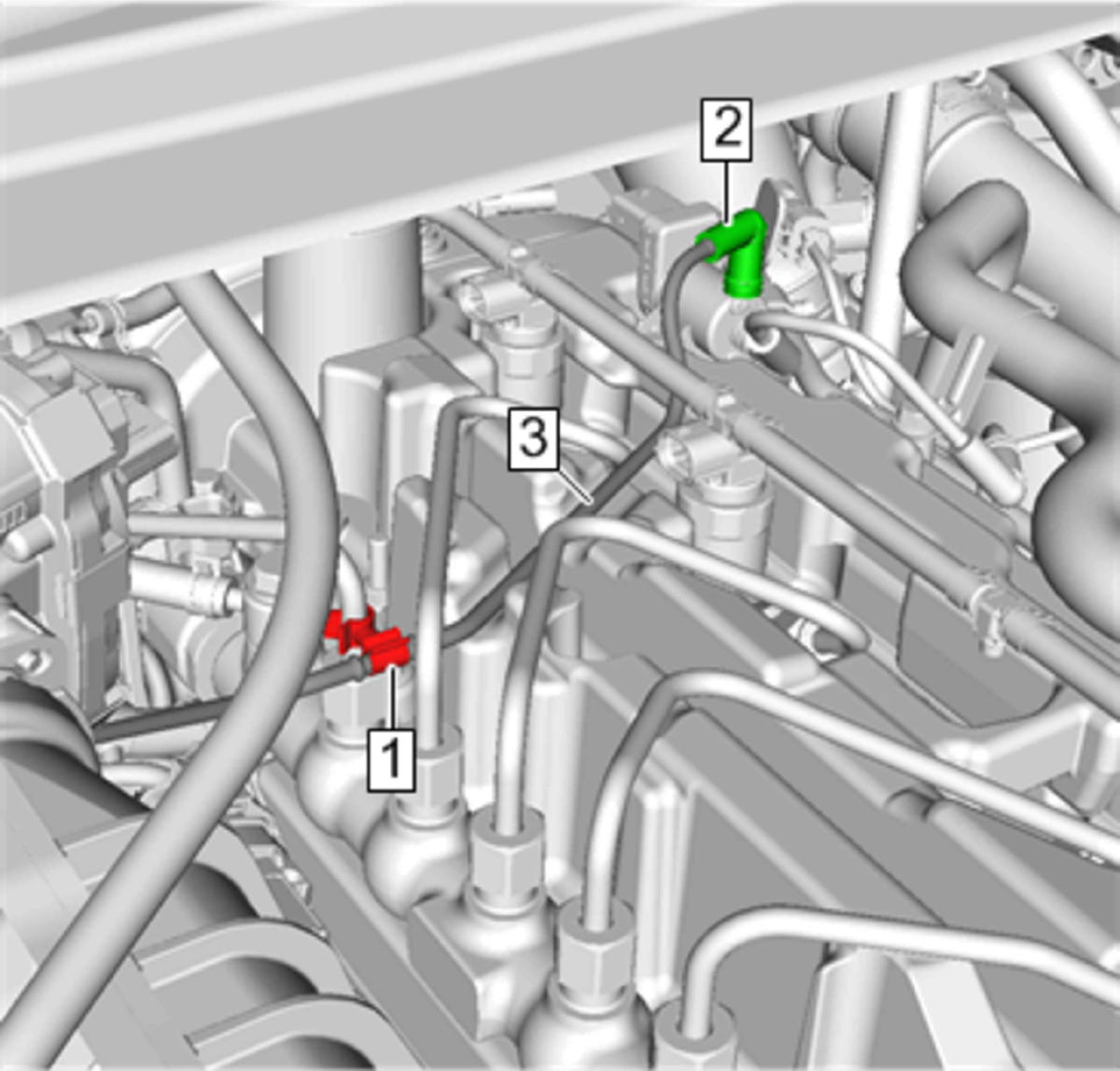

  1. GM4627946Courtesy of GENERAL MOTORS COMPANY

    Exhaust Gas Recirculation Valve Vacuum Pipe (3) - Install

  2. Exhaust Gas Recirculation Valve Vacuum Pipe Connector (2) @ Intake Manifold Tuning Vacuum Control Solenoid Valve - Connect
  3. Retainer (1) @ Fuel Feed Pipe - Engage

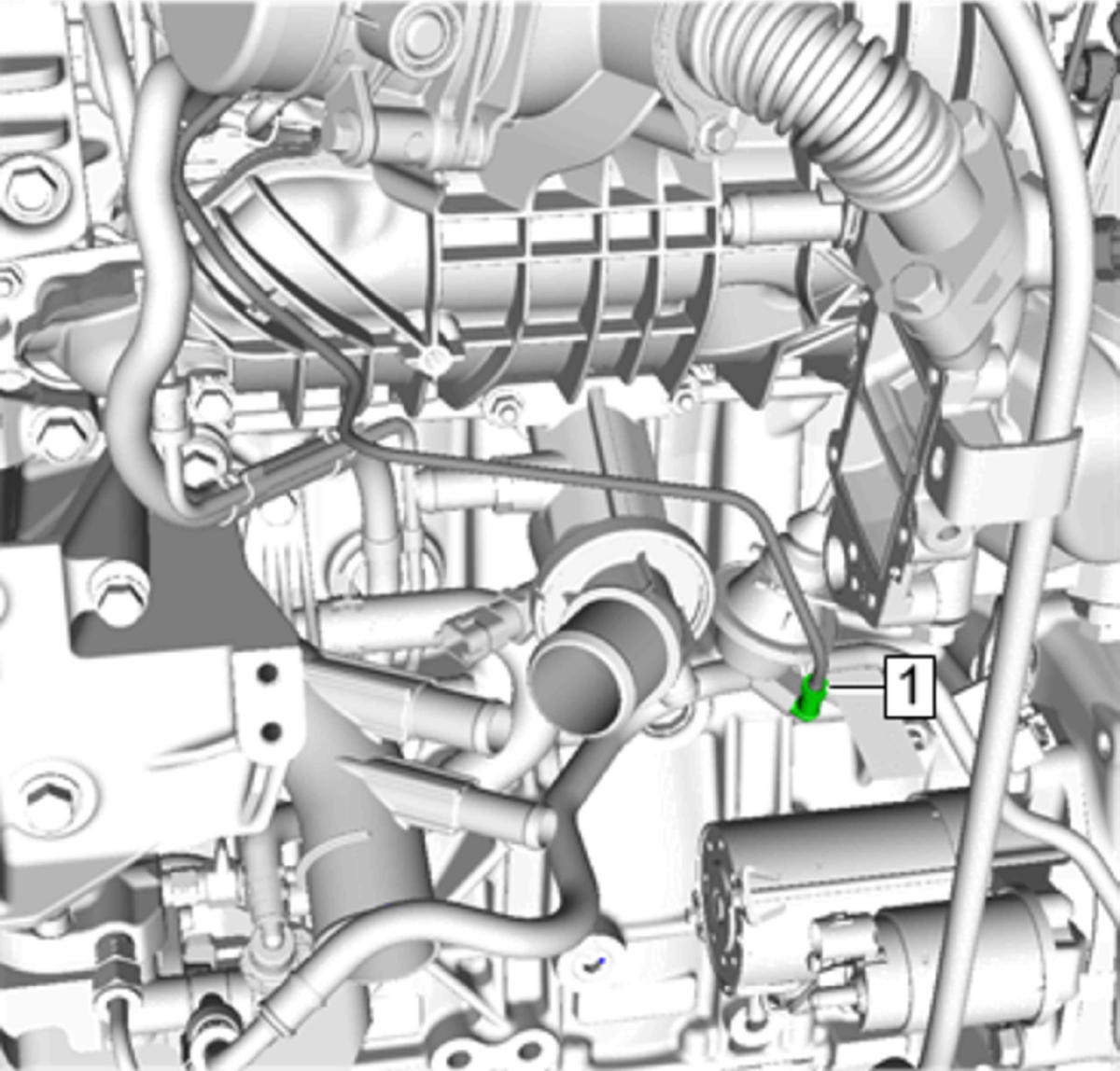

  4. GM4627969Courtesy of GENERAL MOTORS COMPANY

    Exhaust Gas Recirculation Valve Vacuum Pipe Connector (1) @ Exhaust Gas Recirculation Valve Cooler Bypass Valve Actuator - Connect

  5. Exhaust Gas Recirculation Valve - Install - Exhaust Gas Recirculation Valve Replacement
