Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

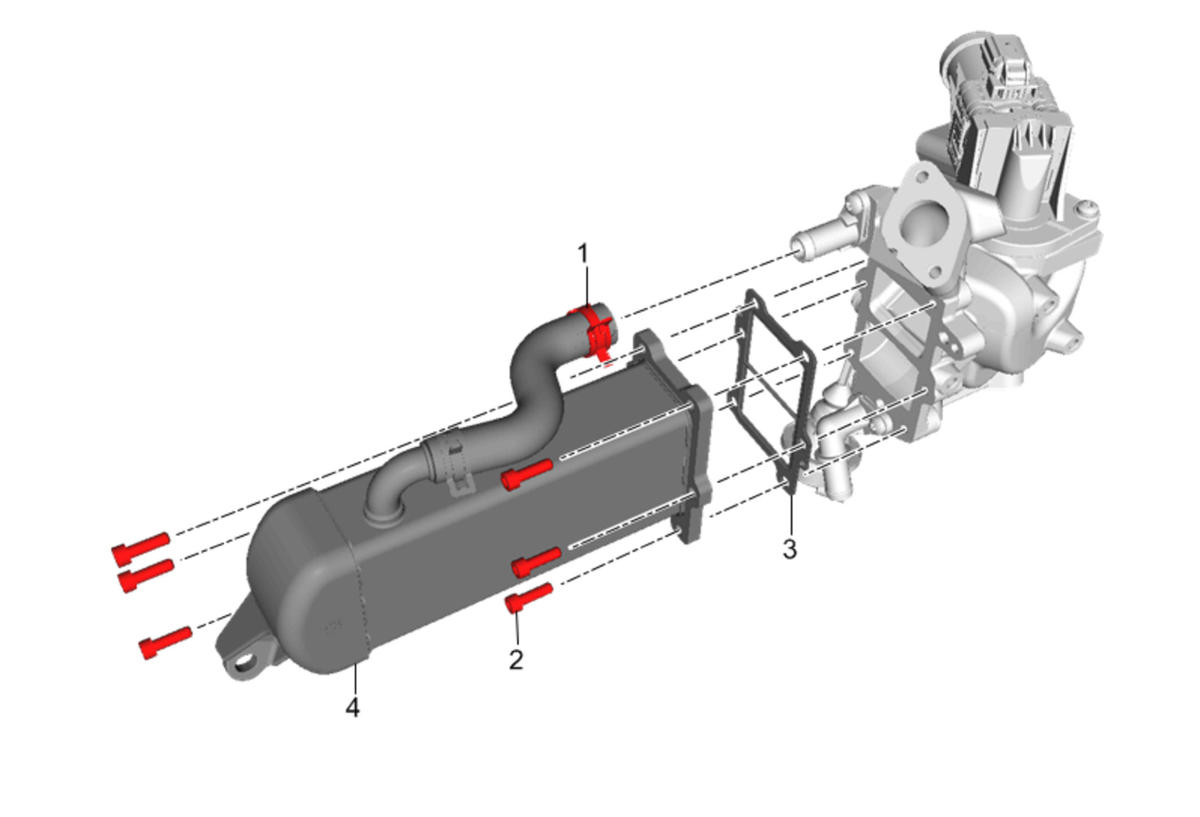

Exhaust Gas Recirculation Cooler (4) - Install - Exhaust Gas Recirculation Cooler Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install a NEW gasket.

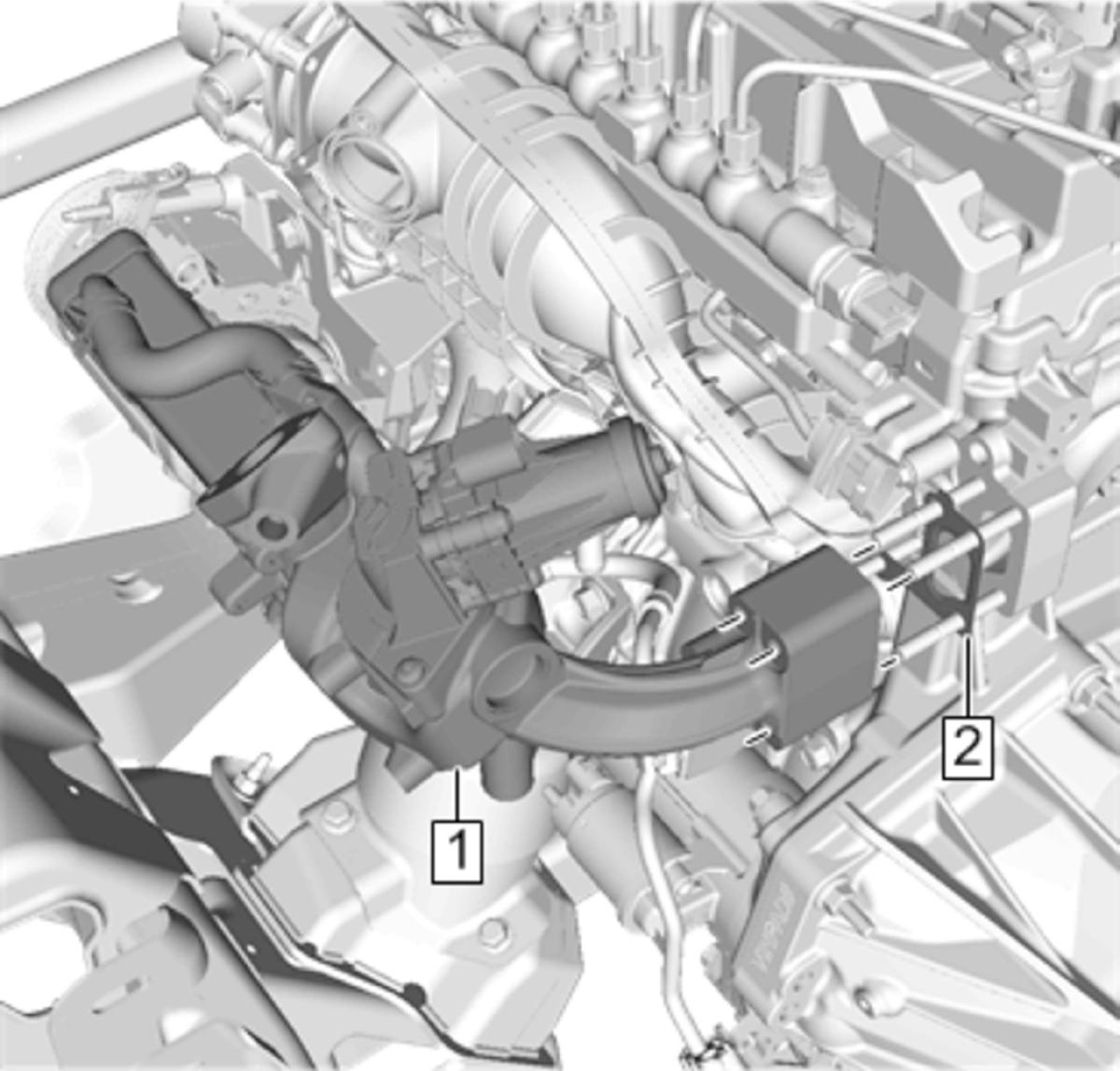

Exhaust Gas Recirculation Valve Gasket (2) - Install

NOTE:

Connect the exhaust gas recirculation coolant feed hose and clamp to the exhaust gas recirculation valve during installation.

Exhaust Gas Recirculation Valve (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

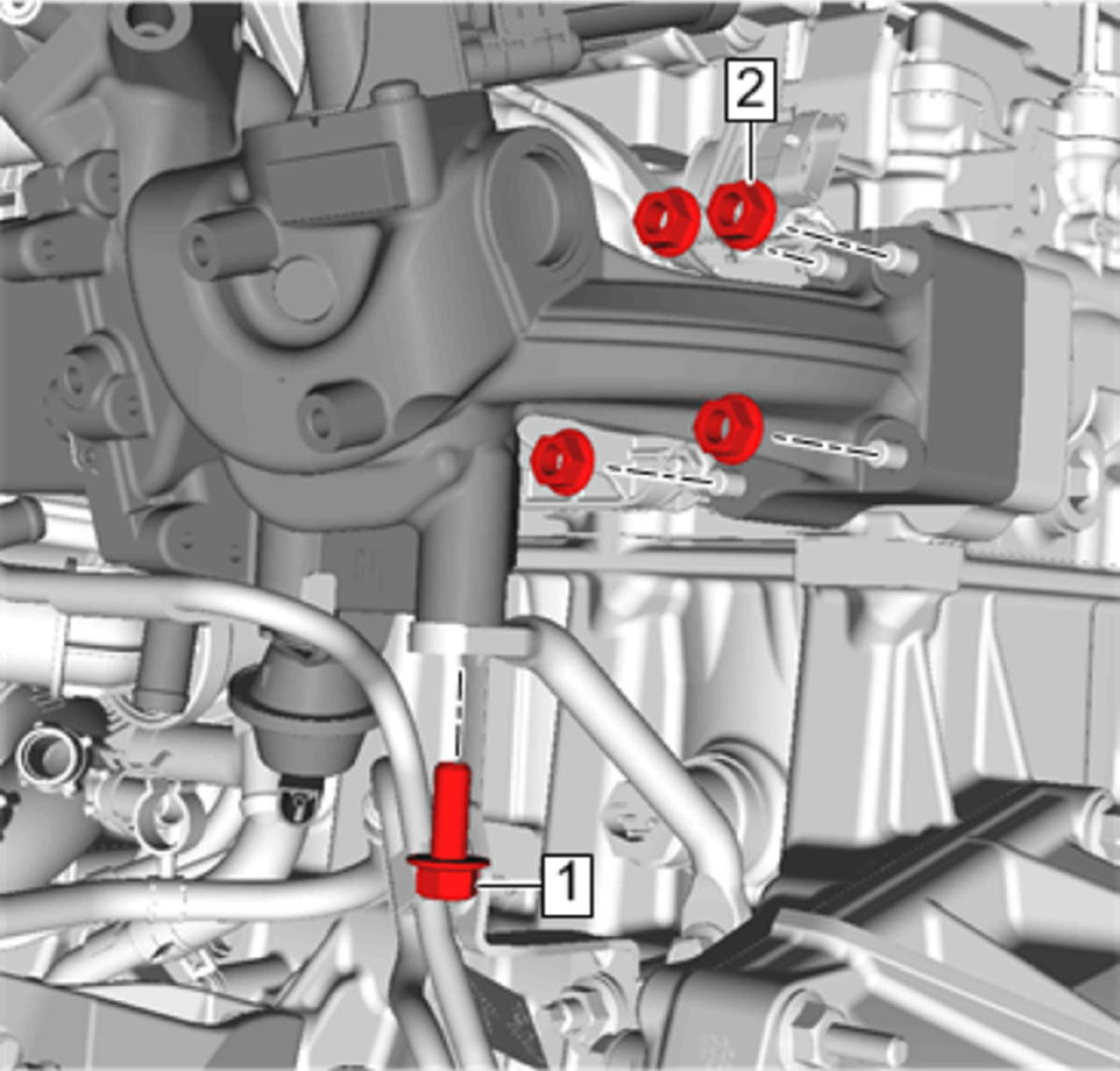

Exhaust Gas Recirculation Valve Nut (2) - Install and tighten [4x] 25 N.m (18 lb ft)
Exhaust Gas Recirculation Valve Brace Bracket Bolt (1) - Install and tighten 58 N.m (43 lb ft)
Courtesy of GENERAL MOTORS COMPANY

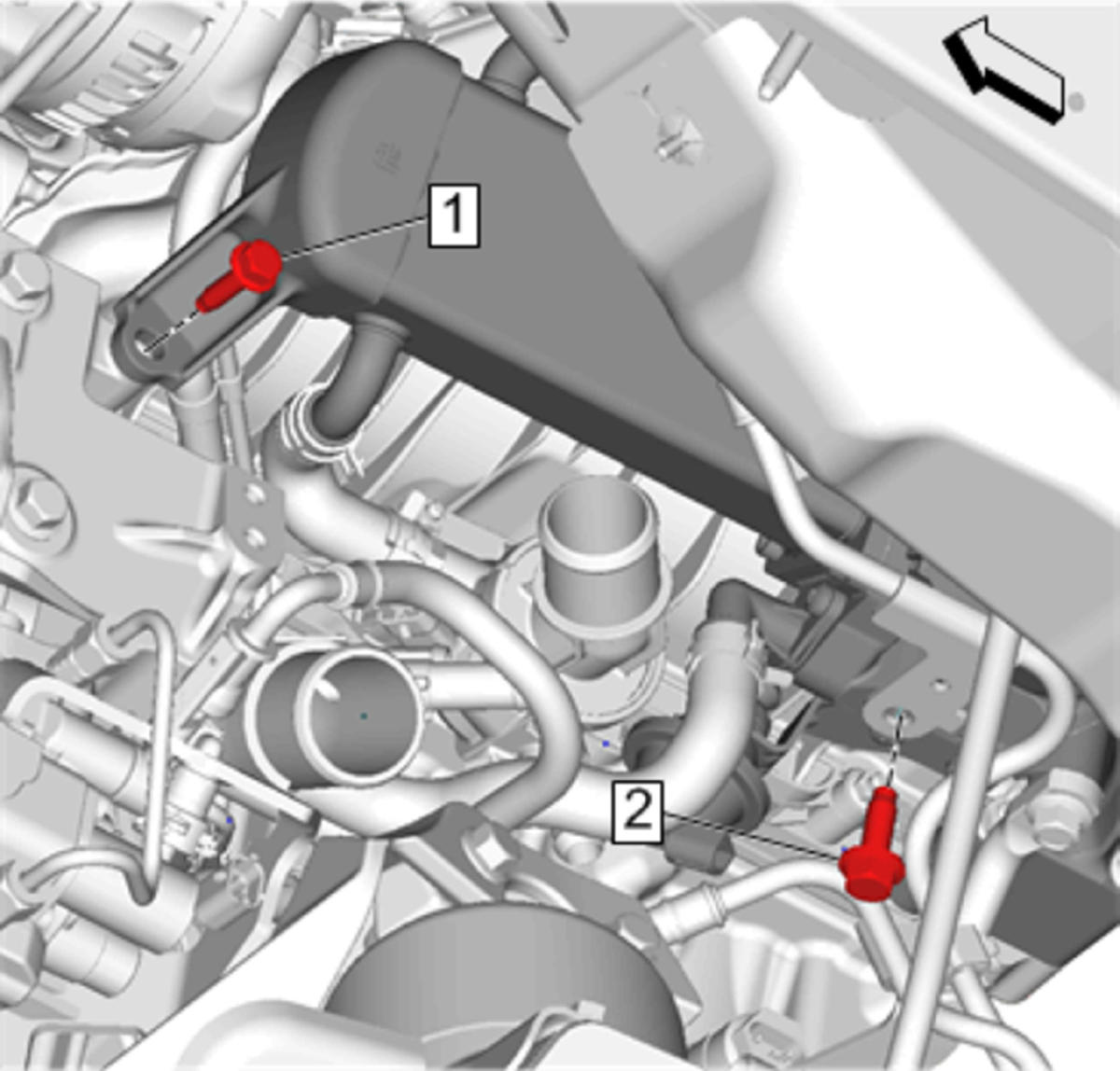

Exhaust Gas Recirculation Cooler Bolt (1) - Install and tighten 25 N.m (18 lb ft)
Fuel Injection Fuel Rail Stop Bolt (2) - Install and tighten - Fuel Pump Fuel Return Hose Replacement
Courtesy of GENERAL MOTORS COMPANY

Exhaust Gas Recirculation Valve Vacuum Pipe (2) - Connect

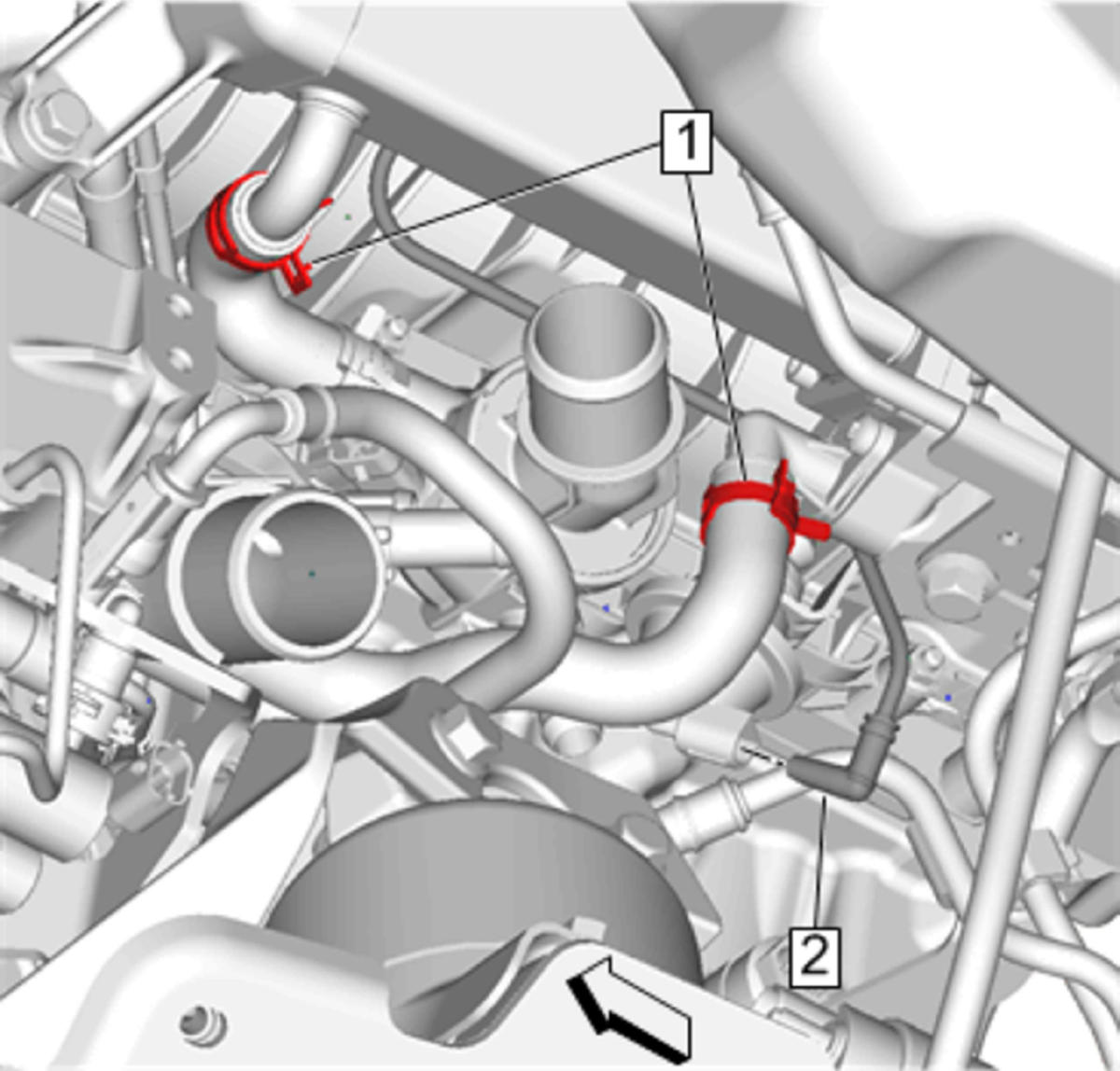

Exhaust Gas Recirculation Cooler Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
Oil Level Indicator and Tube - Install - Oil Level Indicator Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

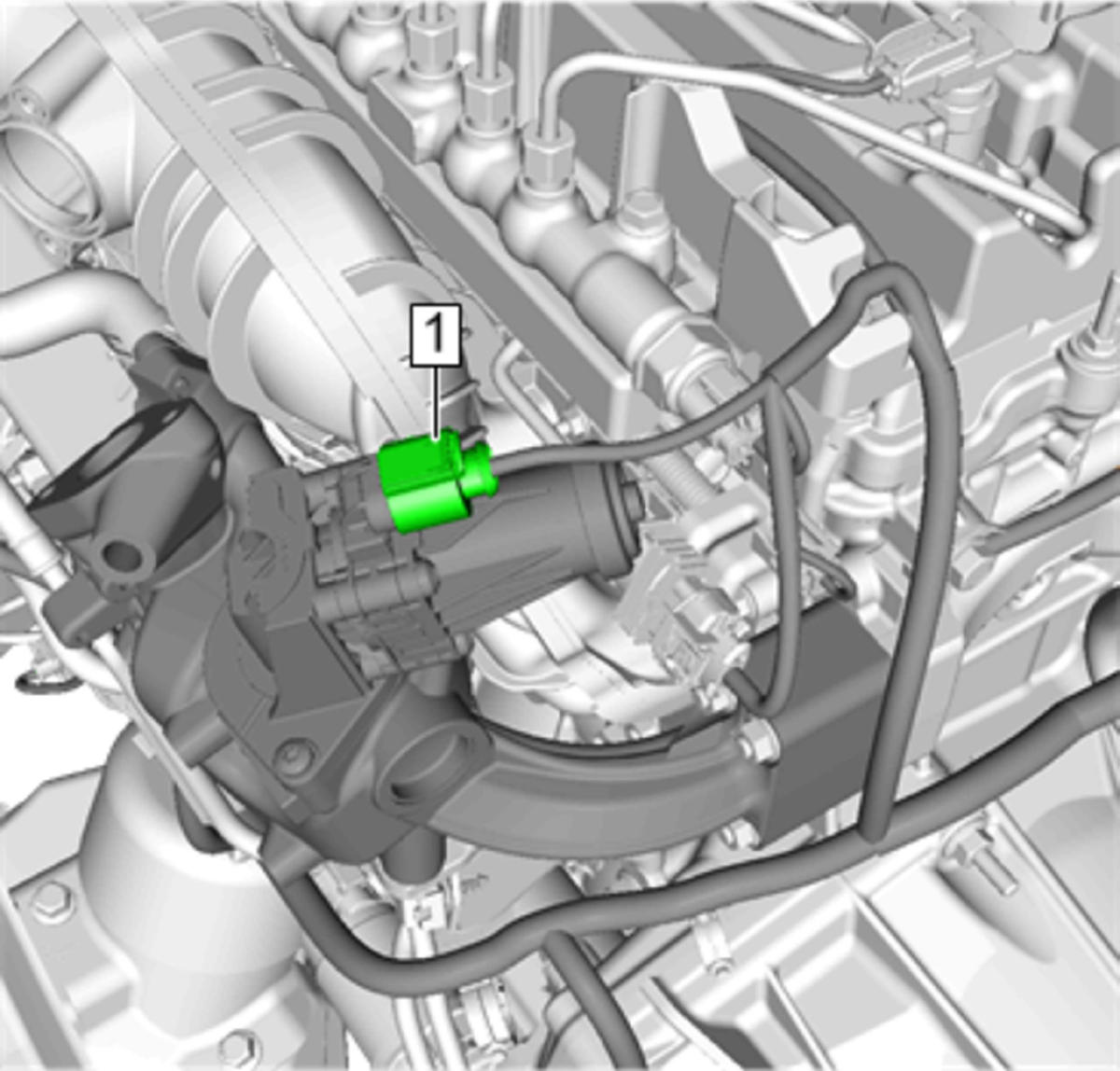

Exhaust Gas Recirculation Valve Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Exhaust Gas Recirculation Cooler Temperature Sensor-Position 2 (1) - Install - Exhaust Gas Recirculation Cooler Temperature Sensor Replacement - Position 2
Courtesy of GENERAL MOTORS COMPANY

Exhaust Gas Recirculation Pipe (1) - Install - Exhaust Gas Recirculation Pipe Replacement
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose (2) - Install - Radiator Inlet Hose Replacement (LWN) .
