Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

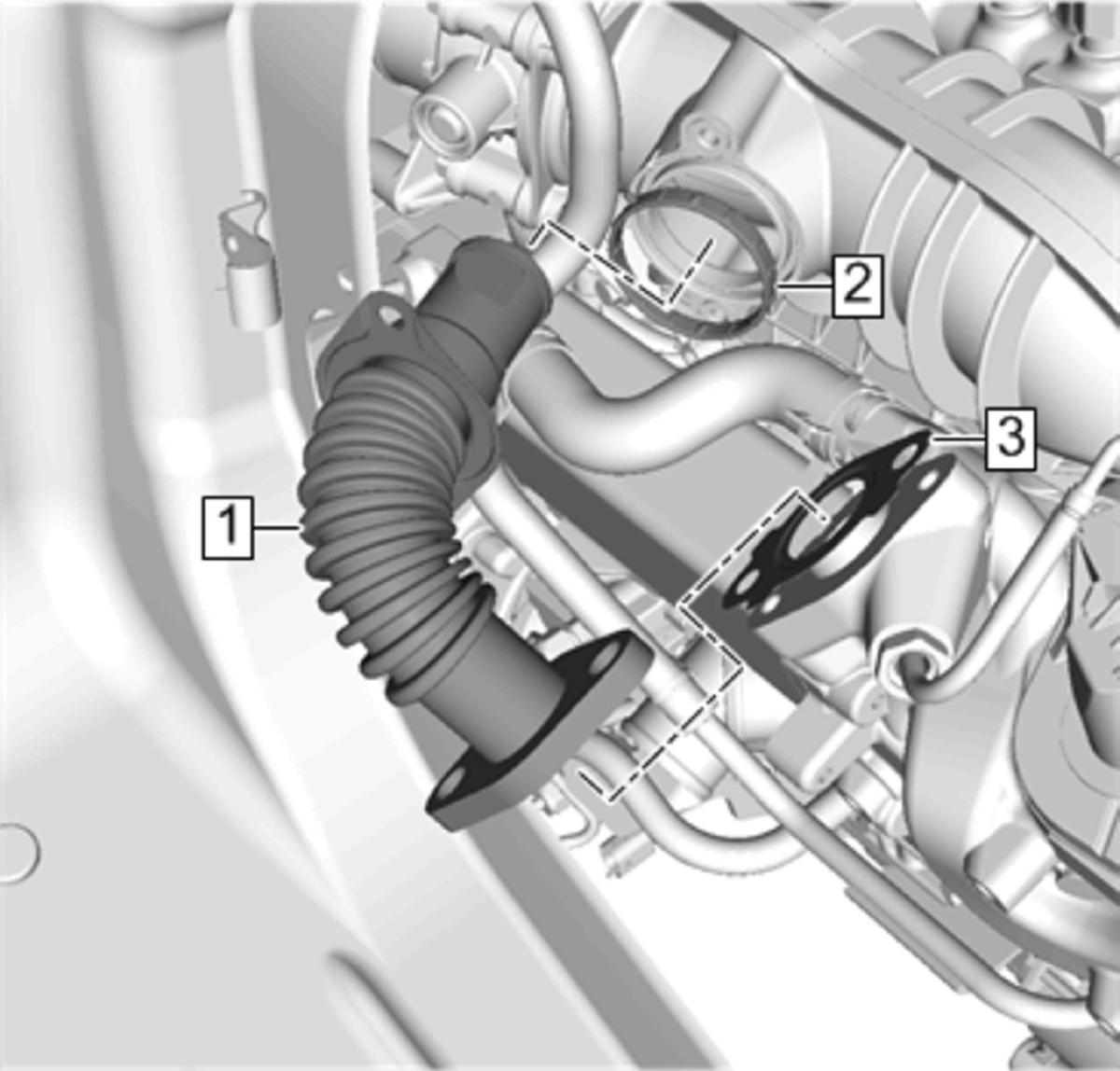

  1. GM4629552Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install a NEW gasket.

    Exhaust Gas Recirculation Pipe Gasket (3) - Install

    2. NOTE:

    Install a NEW seal.

  2. Exhaust Gas Recirculation Pipe Seal (2) - Install
  3. Exhaust Gas Recirculation Pipe (1) - Install

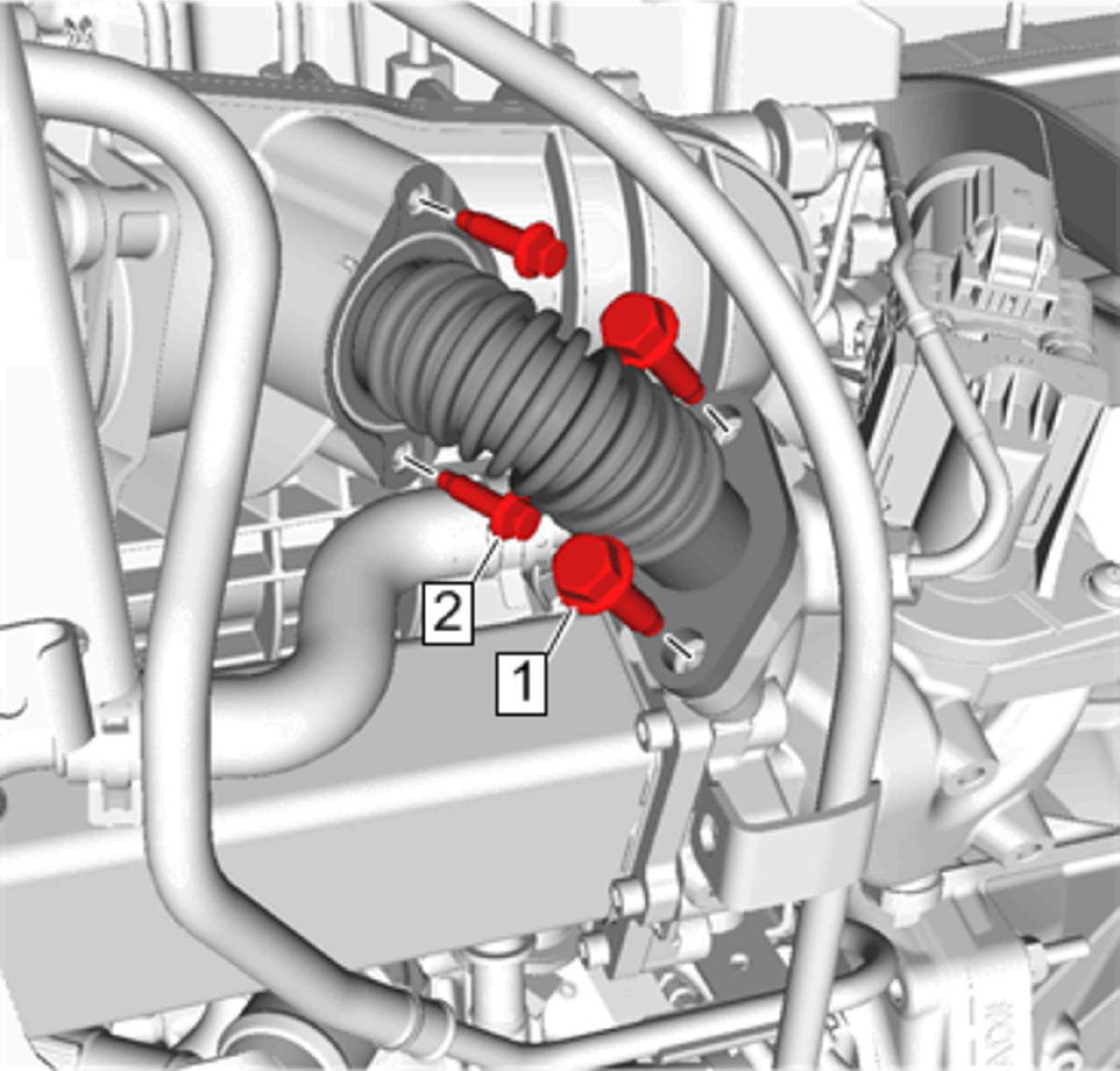

  4. GM4629502Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Exhaust Gas Recirculation Pipe Bolt (2) - Install and tighten [2x] 10 N.m (89 lb in)

  5. Exhaust Gas Recirculation Pipe Bolt (1) - Install and tighten [2x] 25 N.m (18 lb ft)
  6. Engine Cover - Install - Engine Cover Replacement
