Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
Refer to Component Fastener Tightening Caution .
NOTE:If reinstalling the old sensor, coat the threads with anti-sieze compound. Adhesives, Fluids, Lubricants, and Sealers .

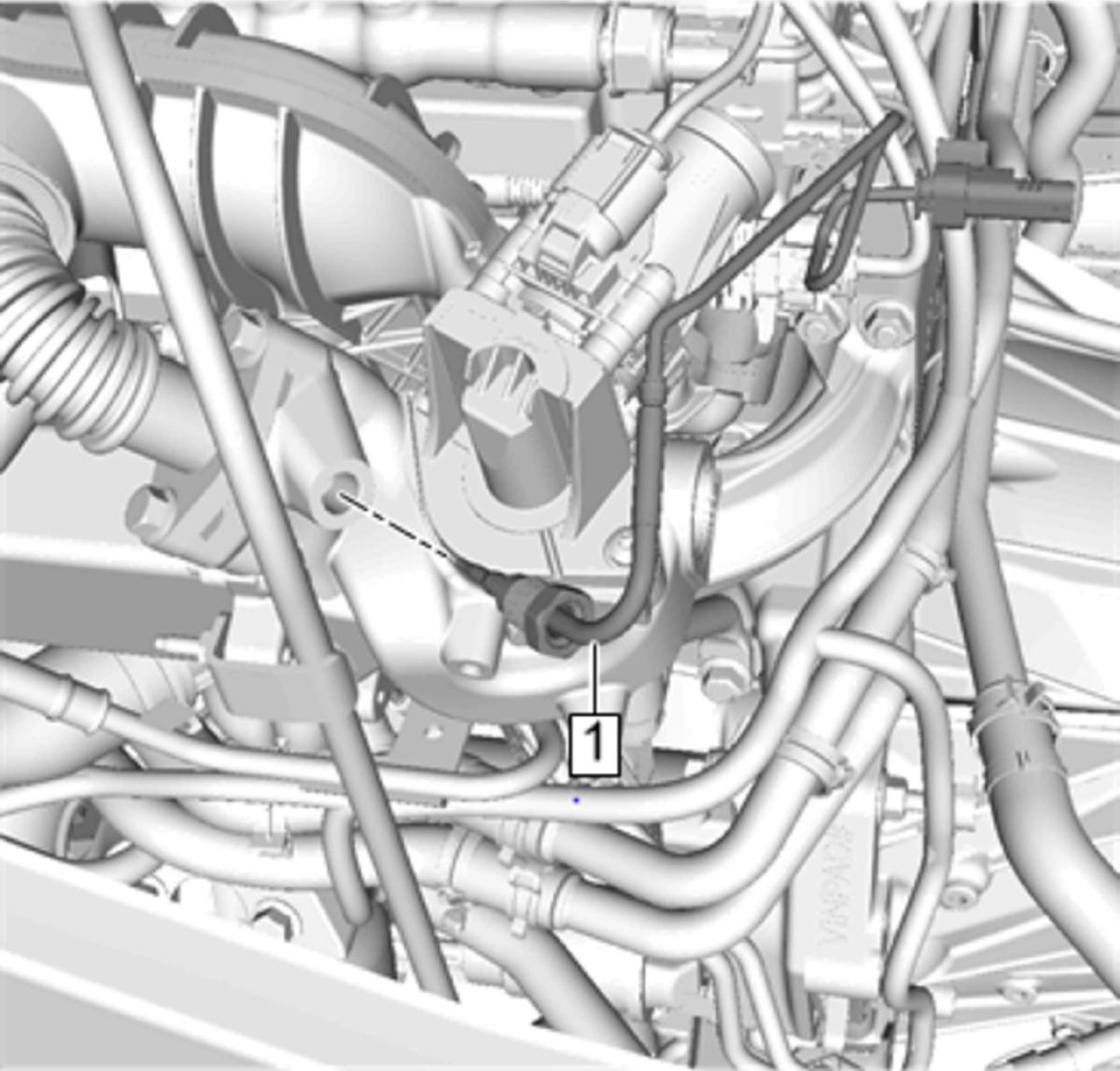

Exhaust Gas Recirculation Cooler Temperature Sensor (1) - Install and tighten 45 N.m (33 lb ft)

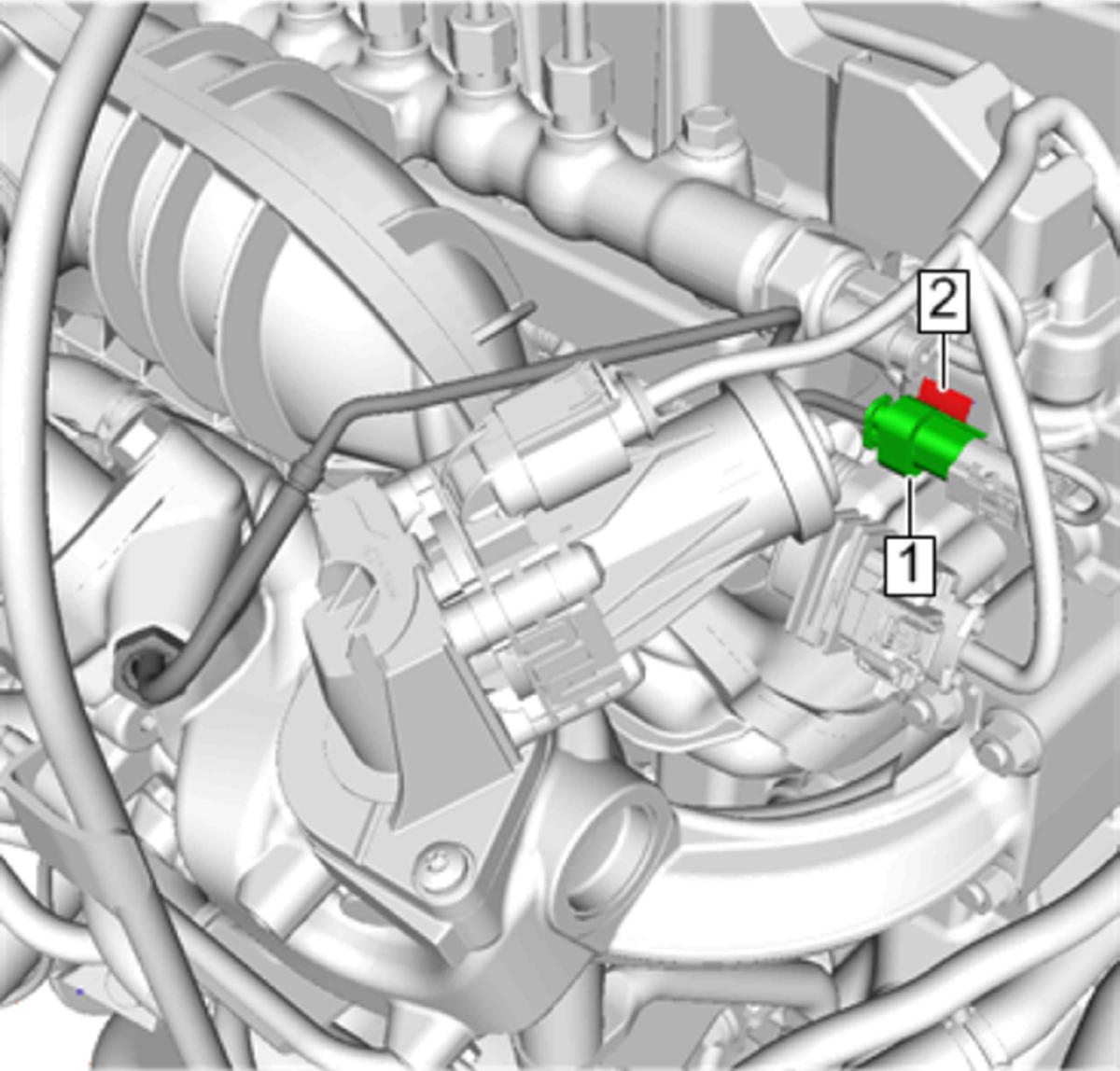

Exhaust Gas Recirculation Cooler Temperature Sensor Wiring Harness Retainer (2) - Engage
- Exhaust Gas Recirculation Cooler Temperature Sensor Electrical Connector (1) - Connect
- Engine Cover - Install - Engine Cover Replacement
- If replacing, perform the exhaust gas temperature sensor reset. Exhaust Gas Temperature Sensor Reset
- If replacing, perform the NOx catalyst reductant loading reset. NOx Catalyst Reductant Loading Reset
